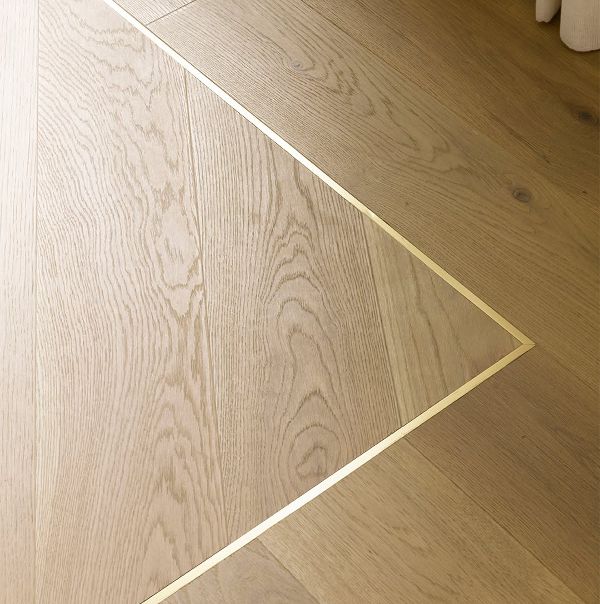

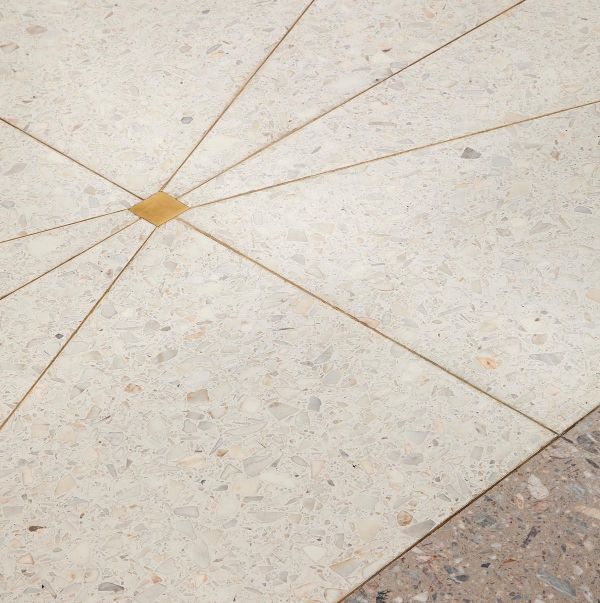

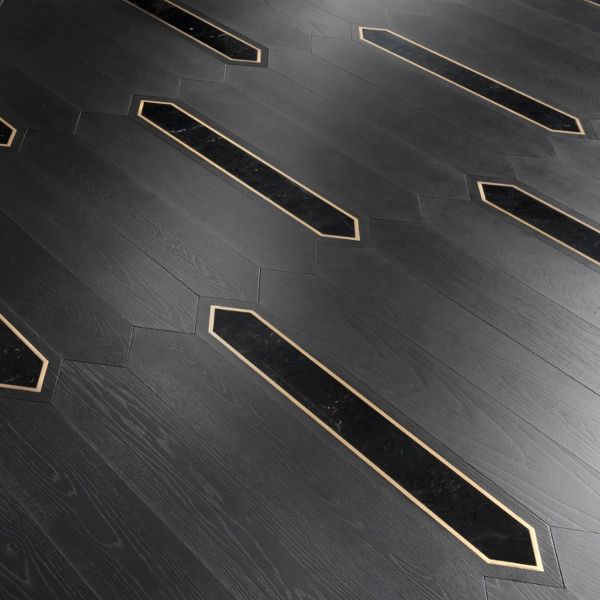

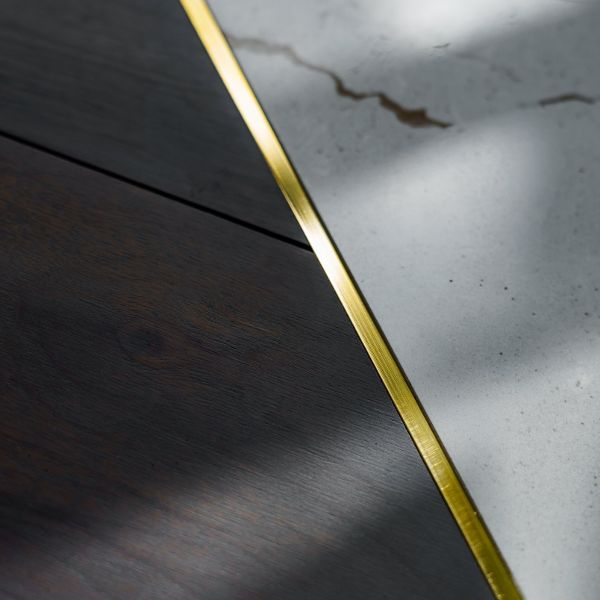

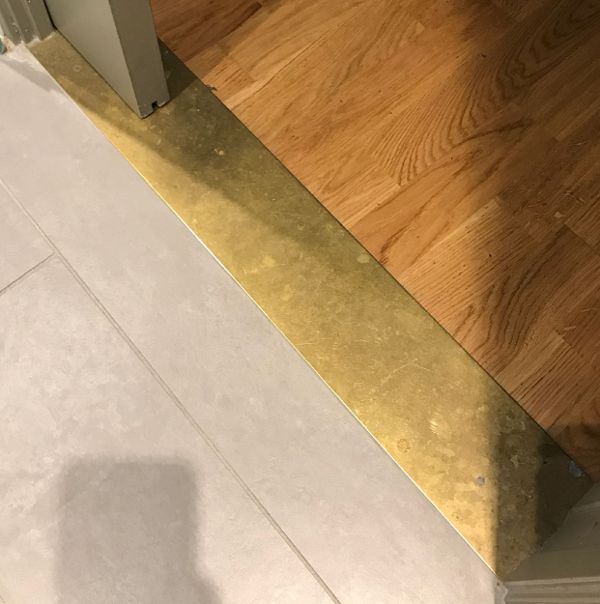

Architectural Metal Trims, Profiles & Skirting Systems

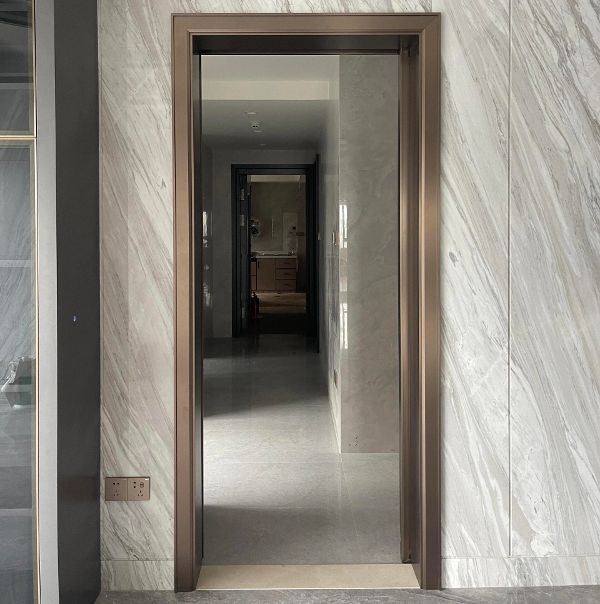

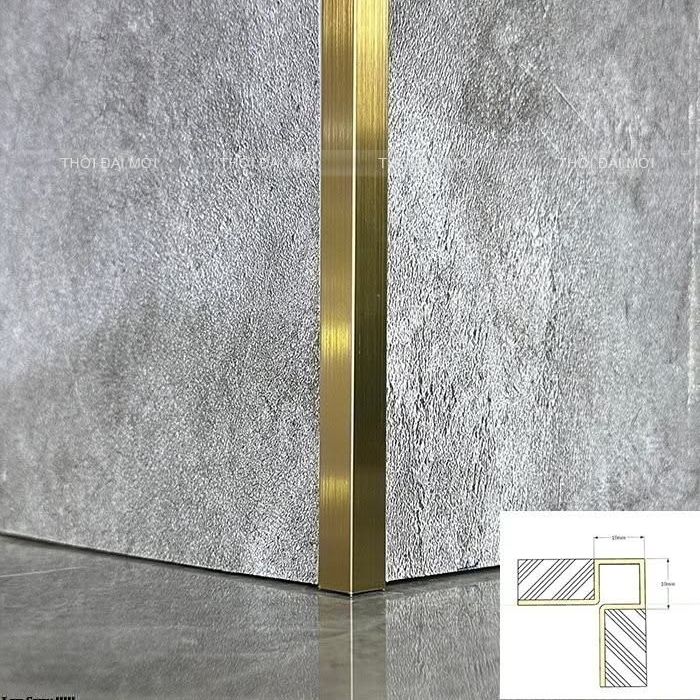

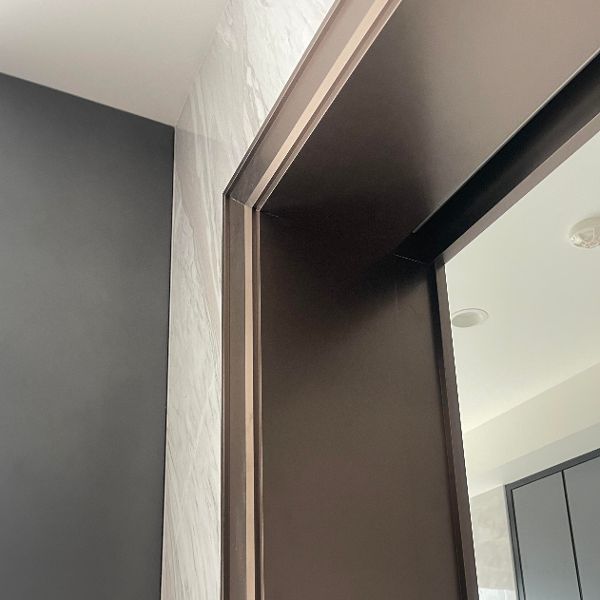

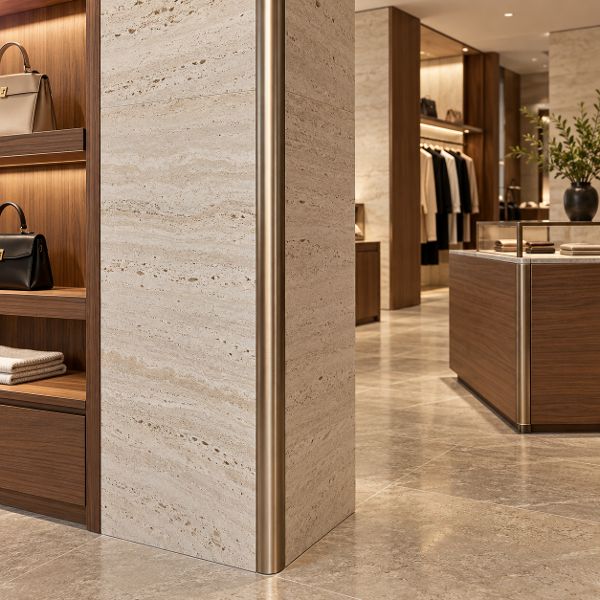

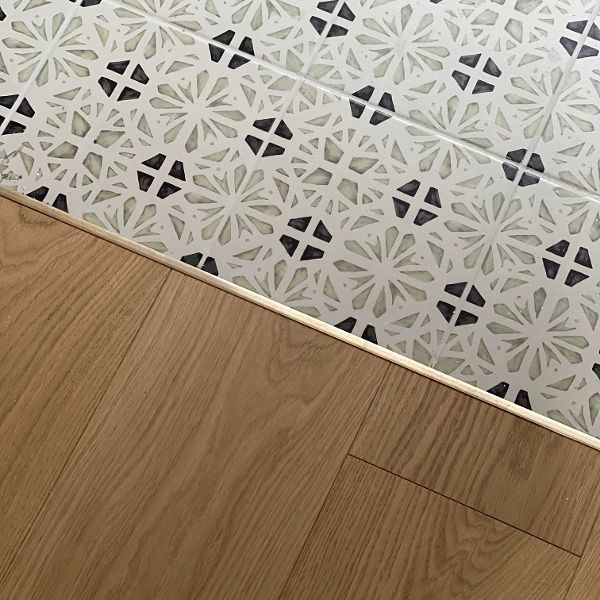

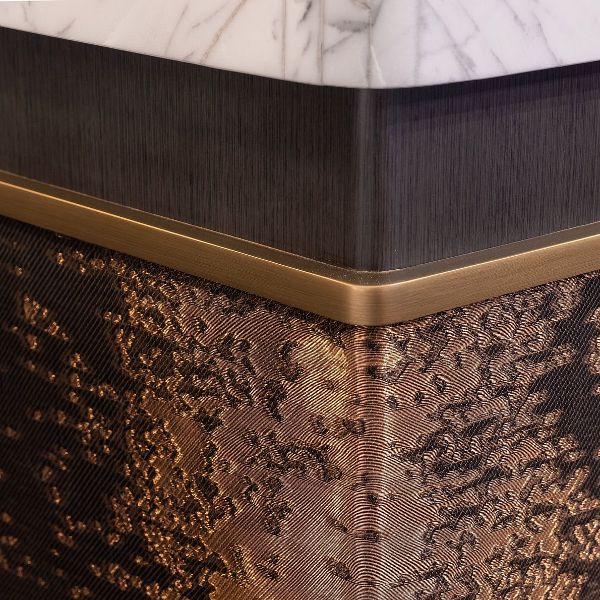

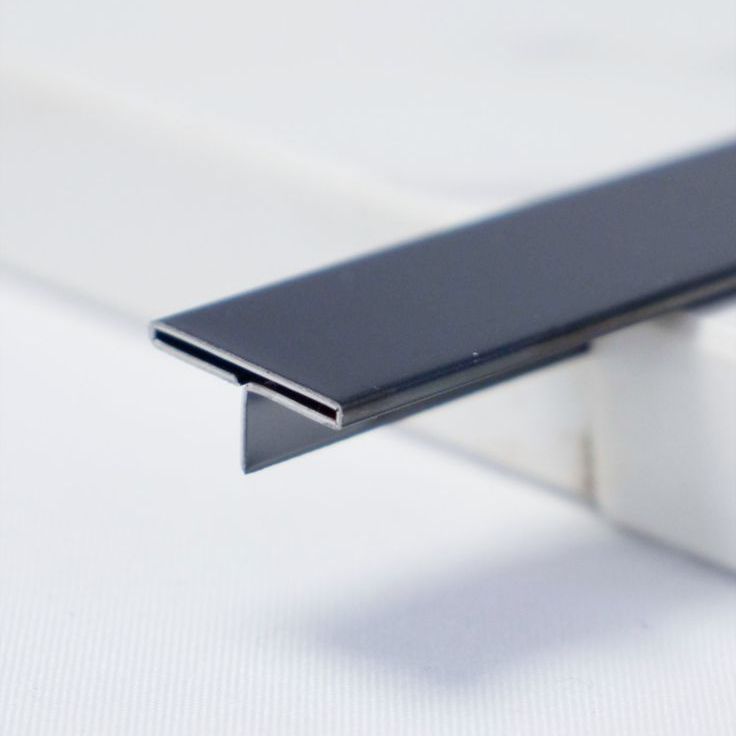

The bend radius affects how closely a formed profile follows the corner of the facing material. Where a sharper visual edge is required, a grooved-and-bent construction may be considered. Groove position, depth and remaining metal must be reviewed for that section; a sharper corner is not a strength rating.

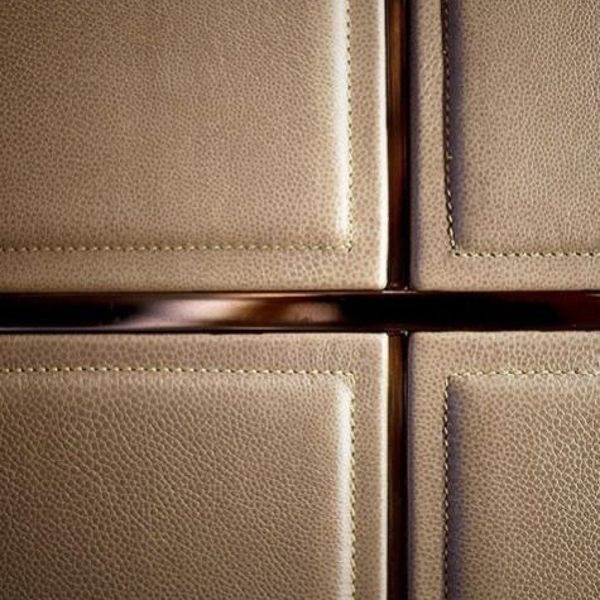

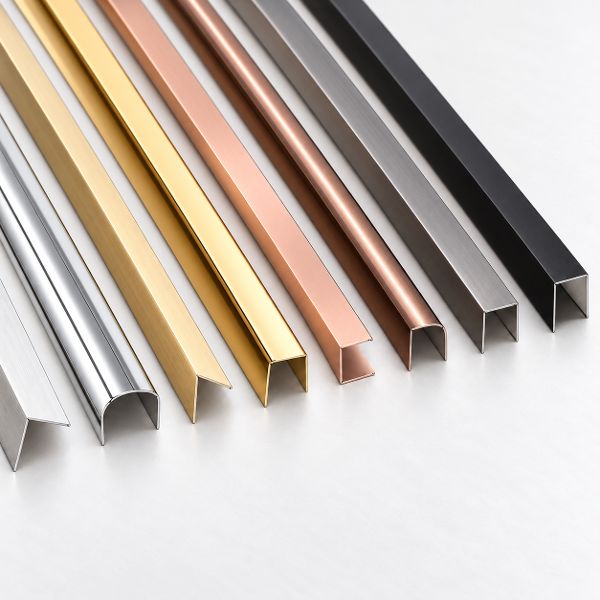

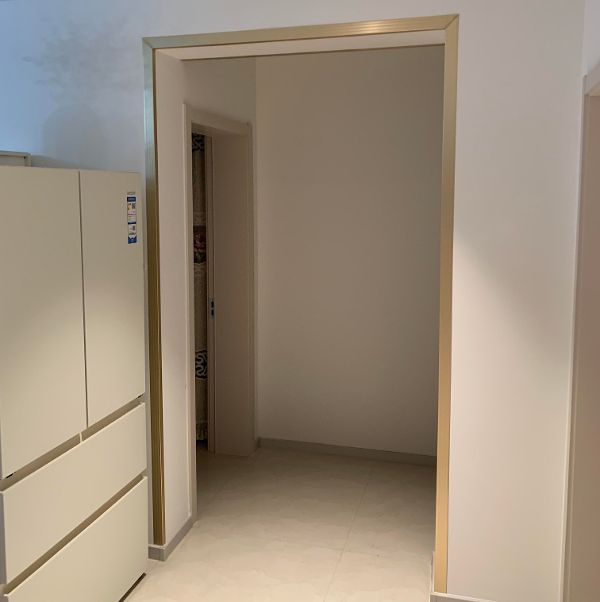

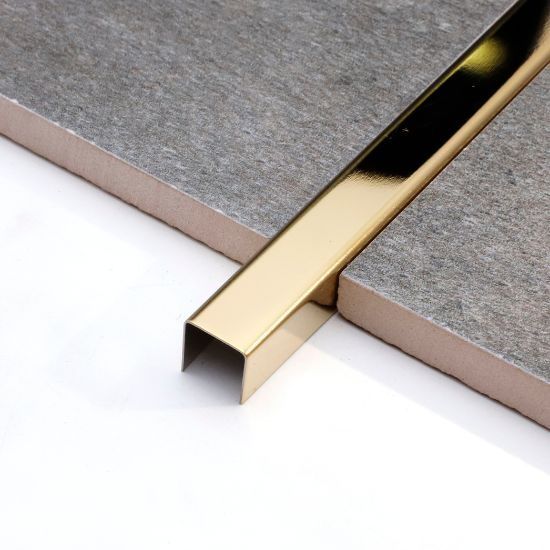

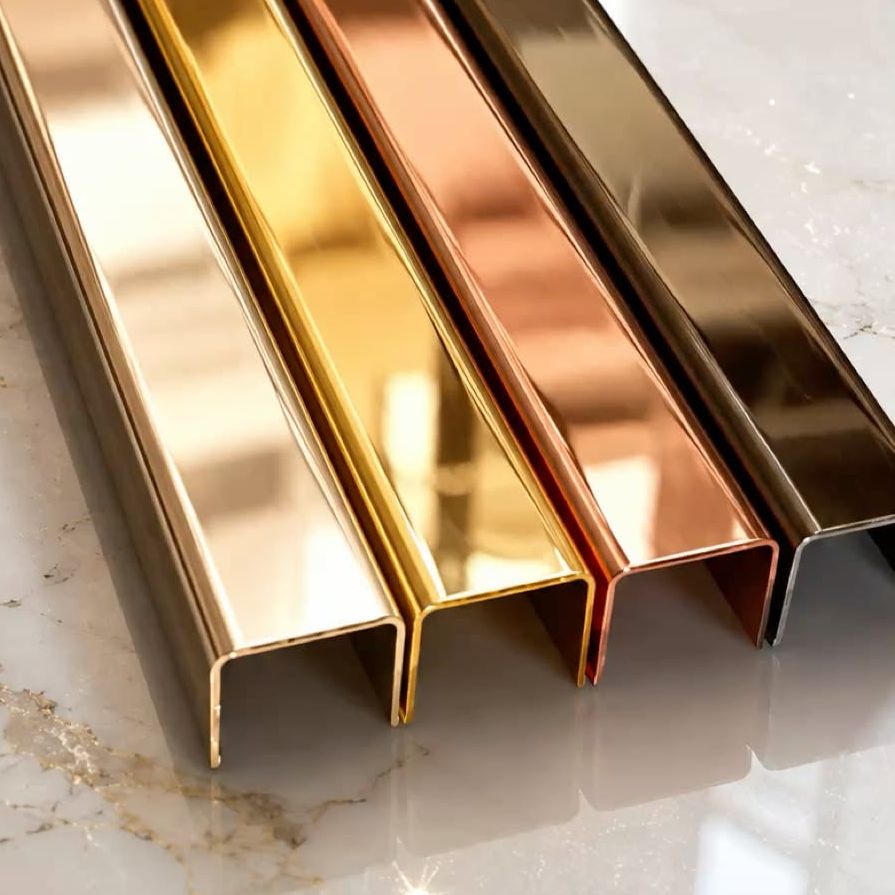

Channel legs need enough clearance for the agreed assembly without leaving an uncontrolled gap. An overly tight channel can mark the decorative surface or damage the adjoining material during fitting. An oversized channel can make alignment and adhesive control difficult.

Cut ends, returns and closures form part of the product detail. Specify whether an end remains open, receives a cap or meets a corner piece, and include those conditions in the sample review.

Trims installed with the facing: Establish the finished level, position the anchoring portion and install the facing according to the selected profile detail. Check support beneath the profile and the relationship between its exposed edge and the completed tile or panel surface.

Covers fitted to completed edges: Survey the edge, prepare the receiving surface and dry-fit straight pieces, corners and ends together. Confirm the adhesive or mechanical connection, hold the profile in position as required, and inspect after the fixing system has reached its specified condition. Temporary tape should not be assumed to provide the permanent connection.

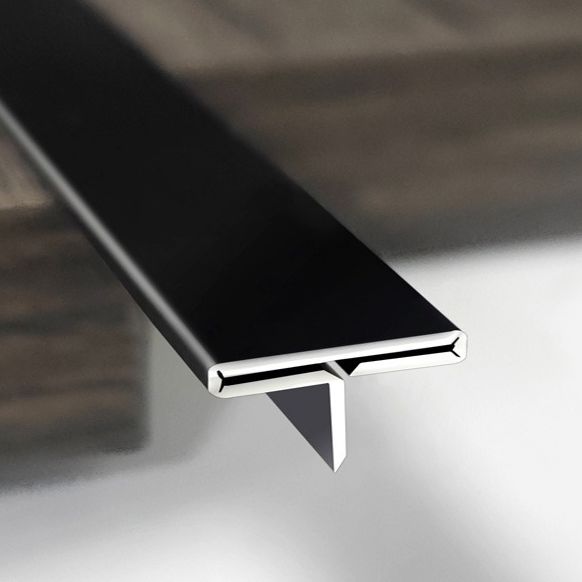

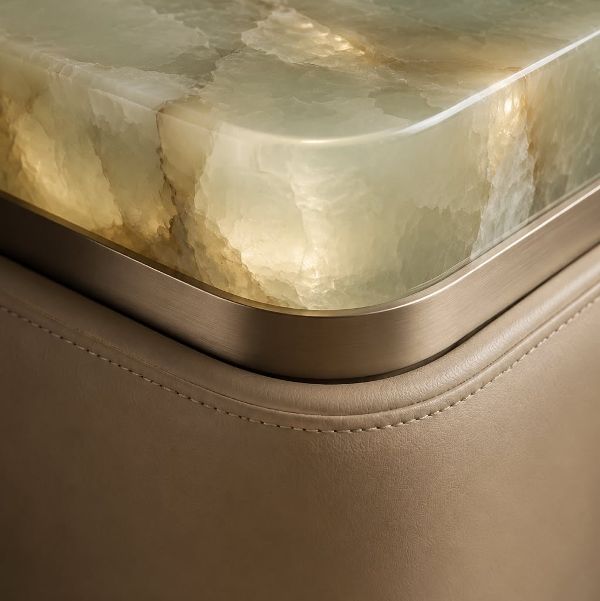

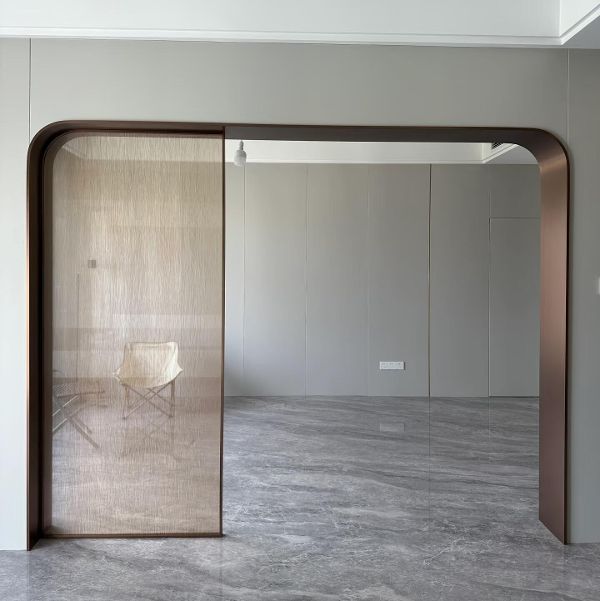

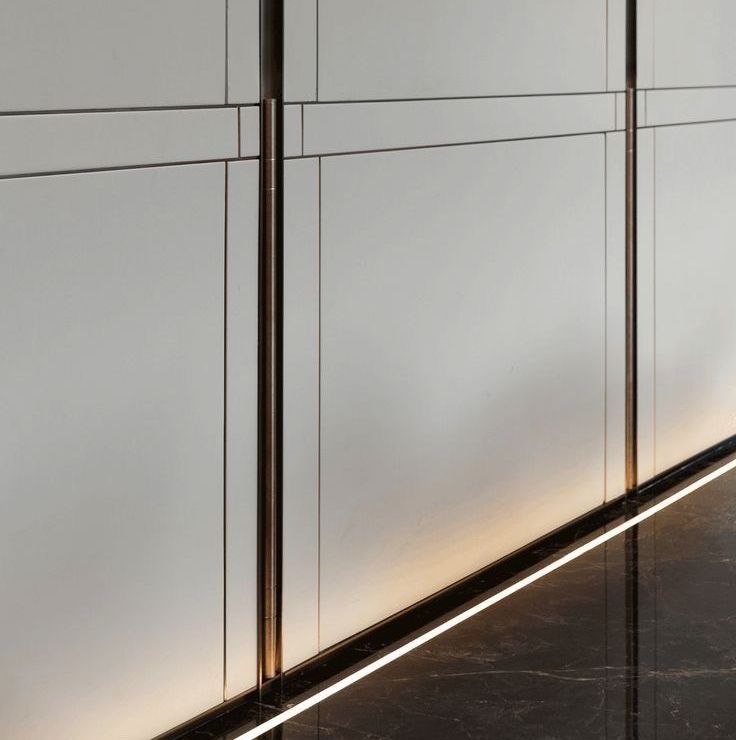

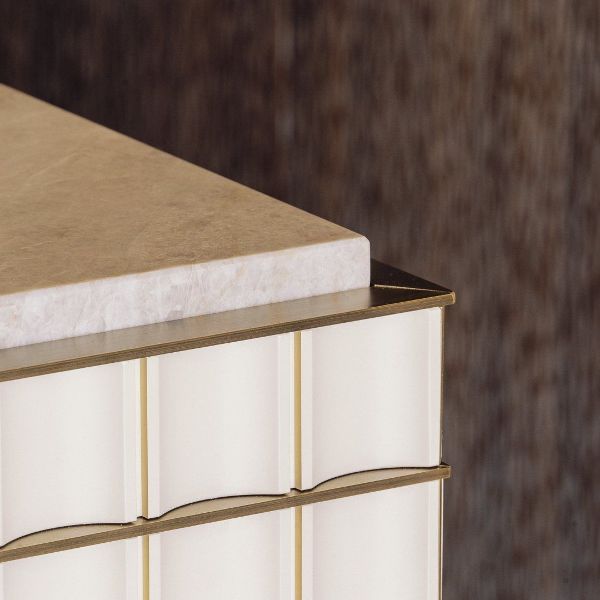

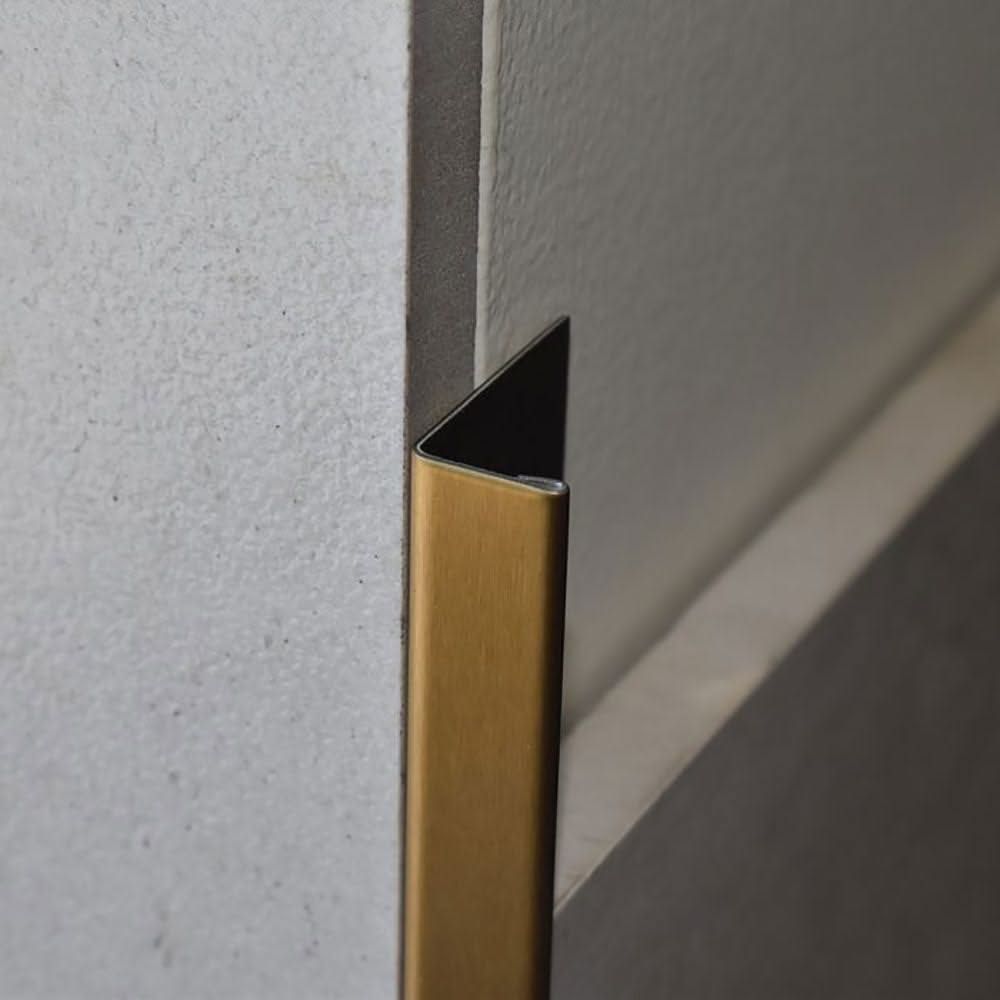

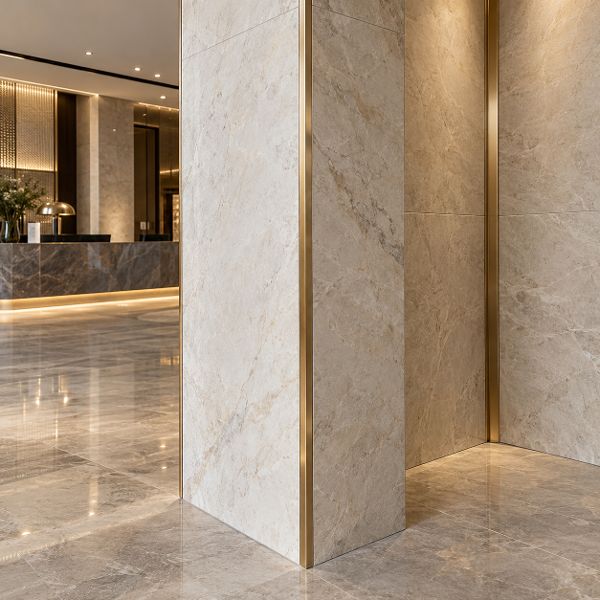

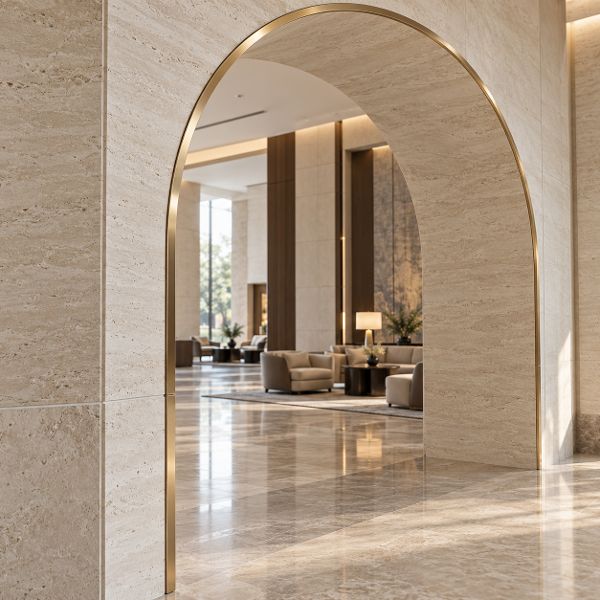

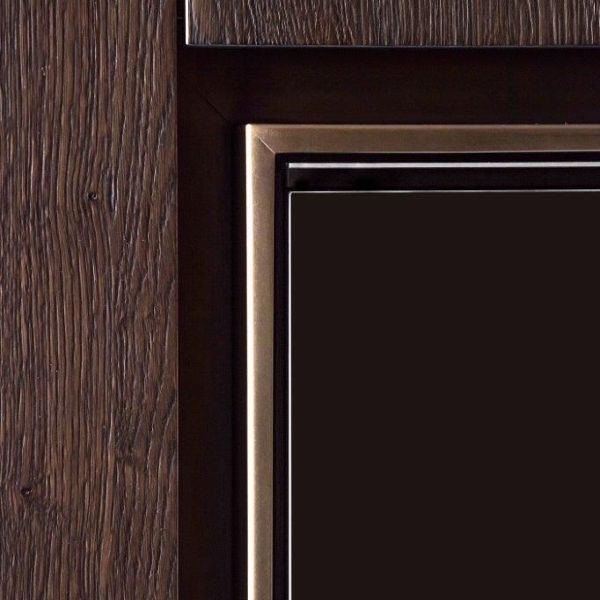

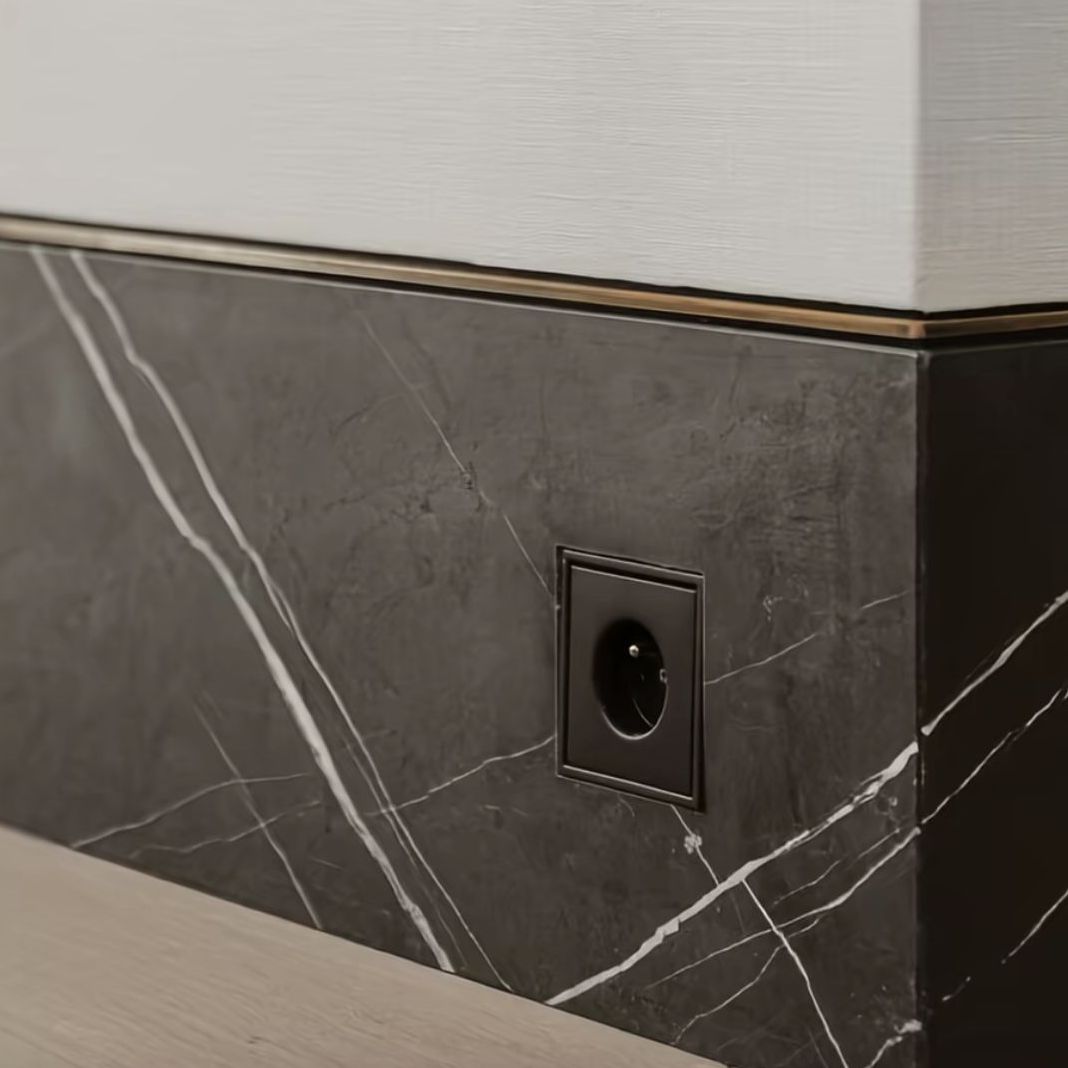

Use these profiles at tile terminations, wall-panel edges, stone returns, furniture edges and selected opening details. Check for projecting edges, flared channel legs, sharp cut ends, pressure marks and adhesive squeezed onto the visible face. Confirm dimensions against the completed facing build-up before fabrication.

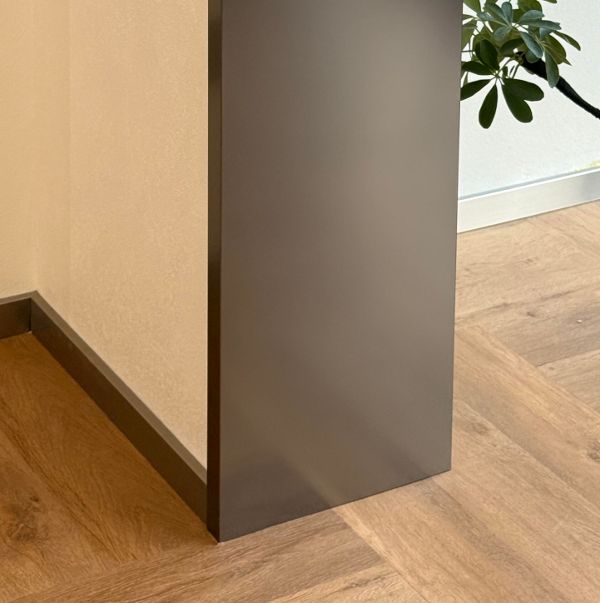

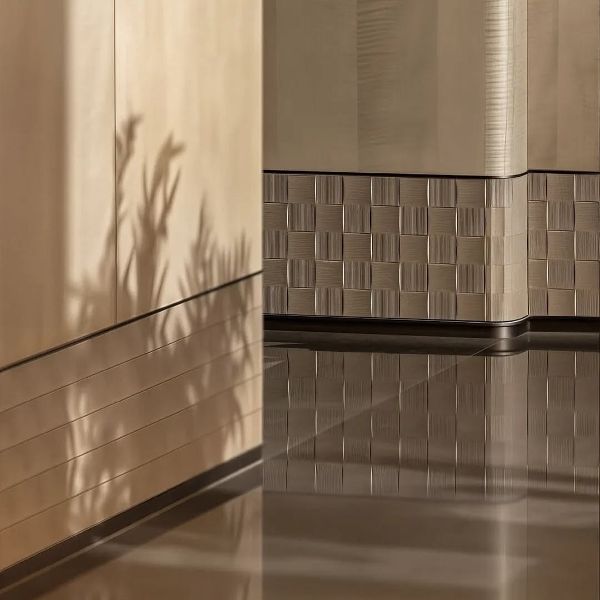

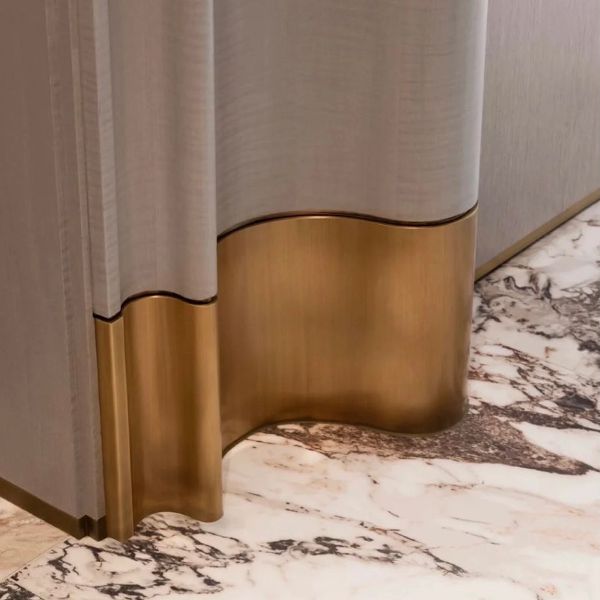

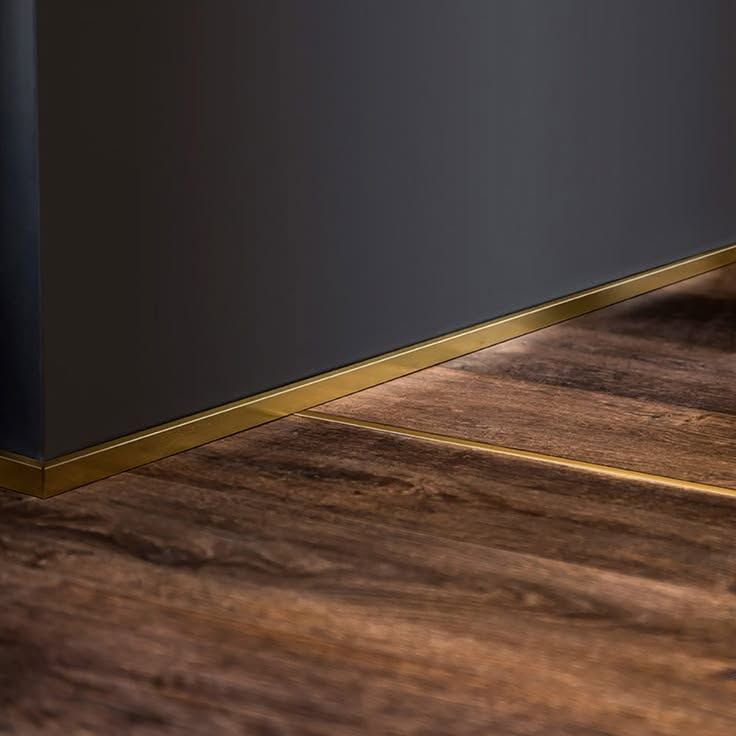

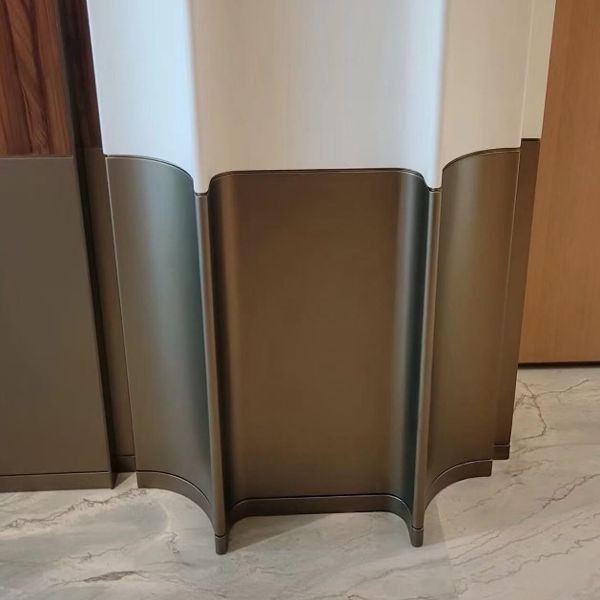

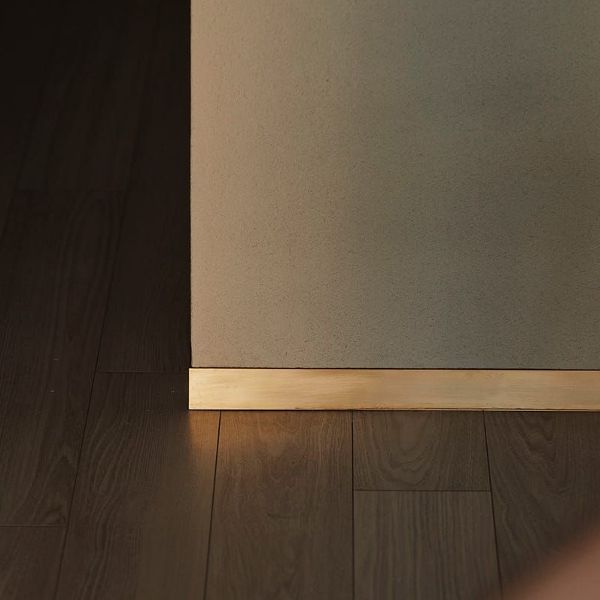

Projecting skirting sits forward of the wall finish. Its top edge, projection, ends and transitions into door casings remain visible and should be detailed together.

Flush skirting aligns with the finished wall. The wall-facing thickness, skirting build-up and substrate adjustment must produce a common plane, with a defined joint between the finishes.

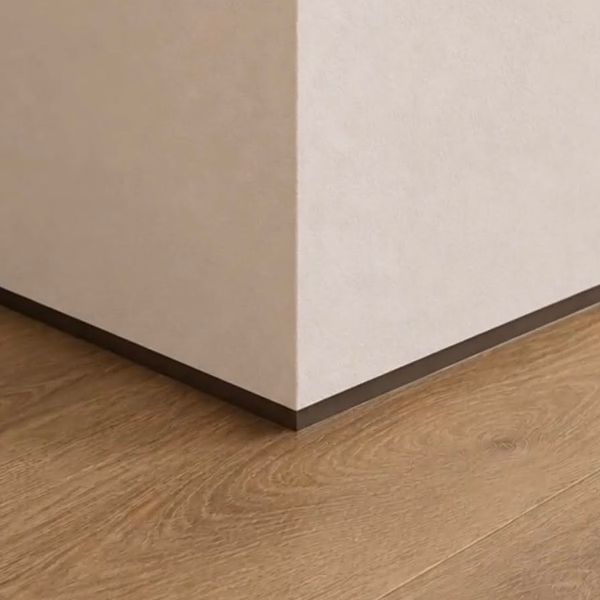

Recessed skirting sits behind the wall plane to create a shadow line. The recess needs sufficient depth and a workable installation route. It should be coordinated before the wall is closed or its facing is completed.

Upper and lower returns change the shape and rigidity of a thin-sheet section. Their geometry can help control the long edge, but straightness also depends on fabrication, handling and the receiving substrate. Increasing thickness alone does not correct an uneven wall.

Plan the joints along long corridor runs and identify the grain direction of each piece. Door ends, column bases, cabinetry and changes of material need deliberate termination details. Include representative corners and joints in the approved finish sample.

For a removable cover, the base, cover engagement and release direction must work as one assembly. A clip-on appearance does not prove that a piece can be installed or removed once adjacent finishes and end closures are in place.

Bonded projecting profiles: Establish the installation datum and inspect the wall for flatness, surface condition and moisture. Prepare or level the receiving construction as specified, dry-fit corners and ends, then bond and support the profile using the selected system. Do not pull a finished metal face against a wavy wall to disguise the substrate error.

Flush or recessed profiles: Confirm the recess and facing thickness before wall finishing. Check the base, joint and installation clearance, fit the skirting in the agreed sequence, and protect it while the adjacent finish is completed.

Base-and-cover systems: Fix and align the base, resolve corners and joints, then check the cover's insertion and removal path. Install the cover and verify engagement along the run. Tight end conditions or an obstructed approach can prevent an otherwise suitable cover from fitting.

Check the upper line, joint width, local bulging, corner edges and transitions at doors. Gaps may arise from the wall finish or base alignment; bulging may involve the fixing or a distorted section. Where cleaning water or moisture is expected, review the concealed substrate and wall-floor interface rather than assuming the metal face protects everything behind it.

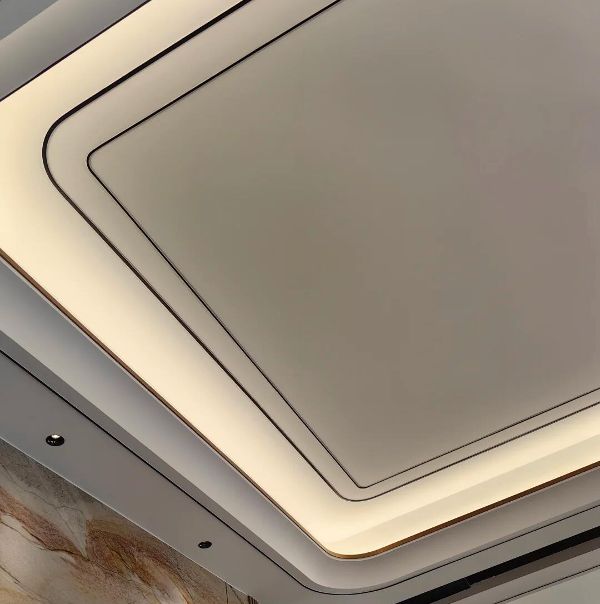

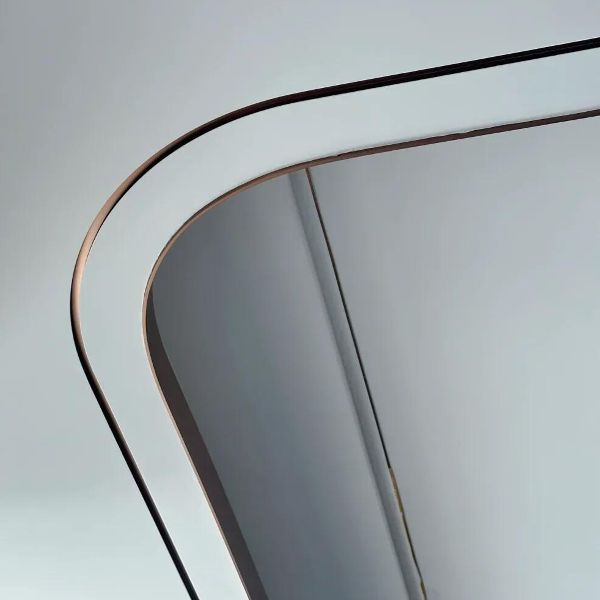

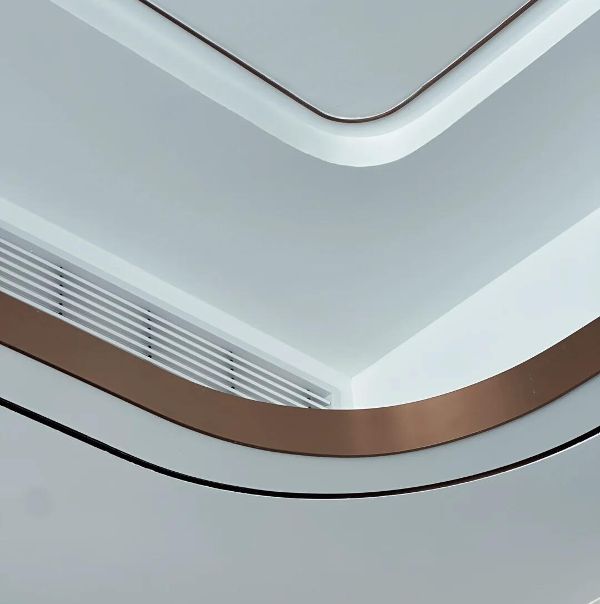

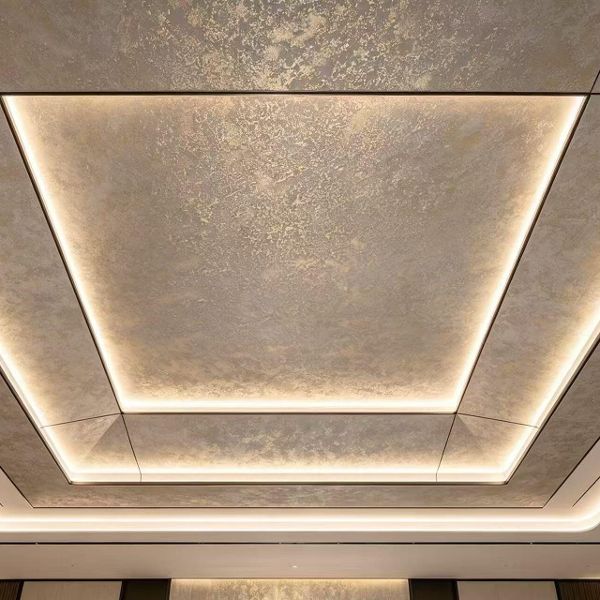

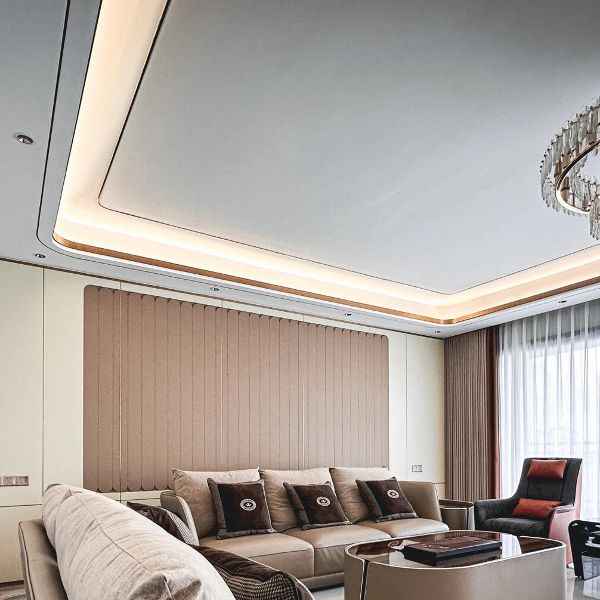

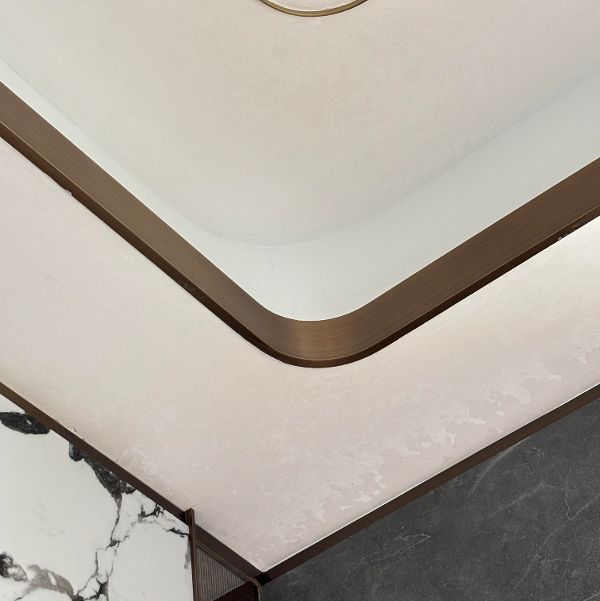

Plan lengths and joints around the ceiling grid rather than concentrating accumulated differences in the last piece. Confirm the corner assembly and the continuity of the intended light or shadow line.

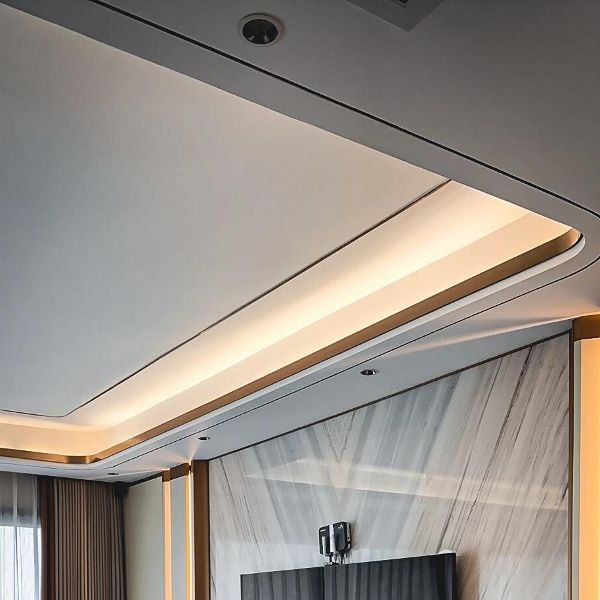

For lighting channels, show the light source, accessories and service route in the section. A decorative stainless steel channel should not be assumed to replace the heat-management components specified for the light fitting.

For access frames, check both the closed view and the opening movement. The panel needs room to release and move clear of adjacent equipment, trims and finishes.

Establish the finished ceiling datum, then agree the profile's fixing and support with the ceiling contractor. Coordinate concealed components and services before closing the surrounding construction. Dry-fit continuous runs and corners, secure the profiles, and complete the adjoining finishes without moving the established line.

Test access panels and inspect the installation under the intended lighting. The primary suspension and structural attachment follow the project design; the decorative profile alone does not define them.

Check changing shadow-gap width, offset joints, visible light sources, unwanted light leakage and obstructed access. These issues may involve wall or ceiling levels, the position of the lighting, the section geometry or the removal path. Review the complete interface rather than judging the metal strip in isolation.

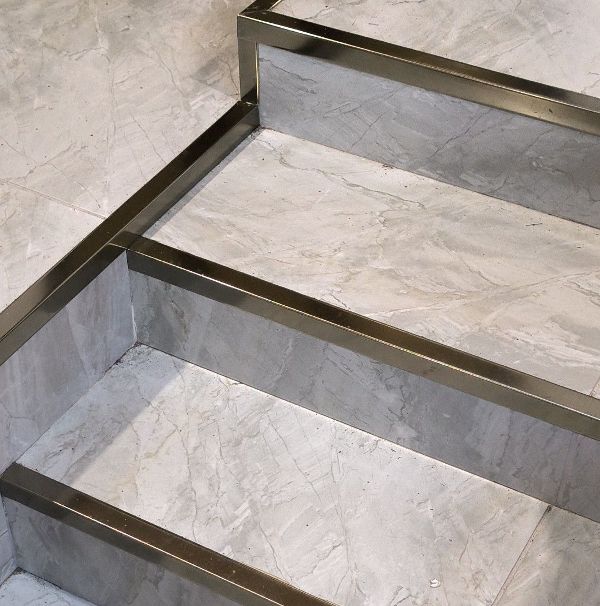

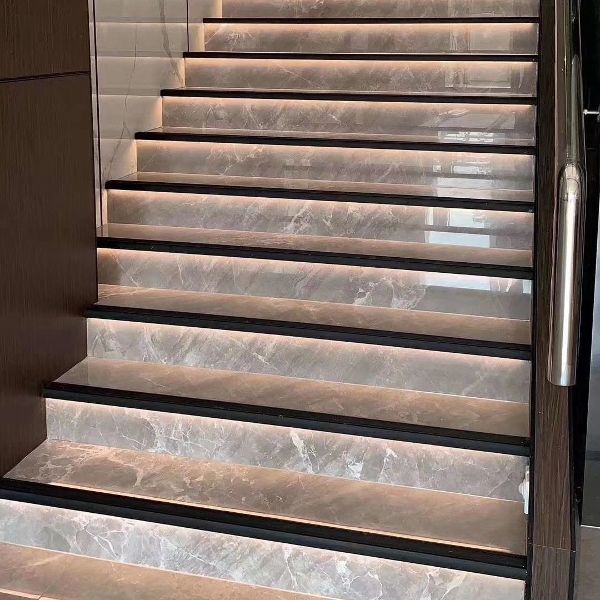

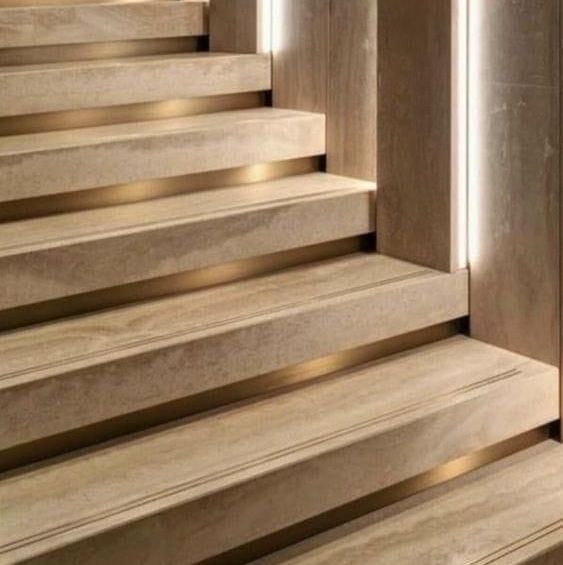

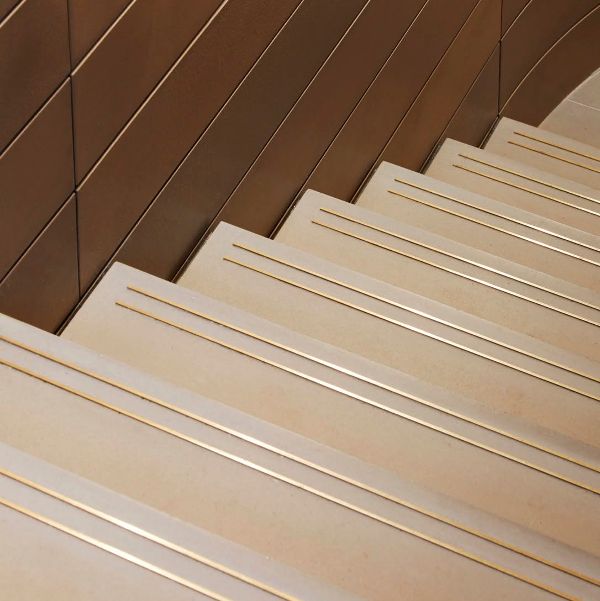

Define tread coverage, projection and vertical return separately. Check cut ends, burrs and corner conditions where shoes, cleaning equipment or hands may contact the profile.

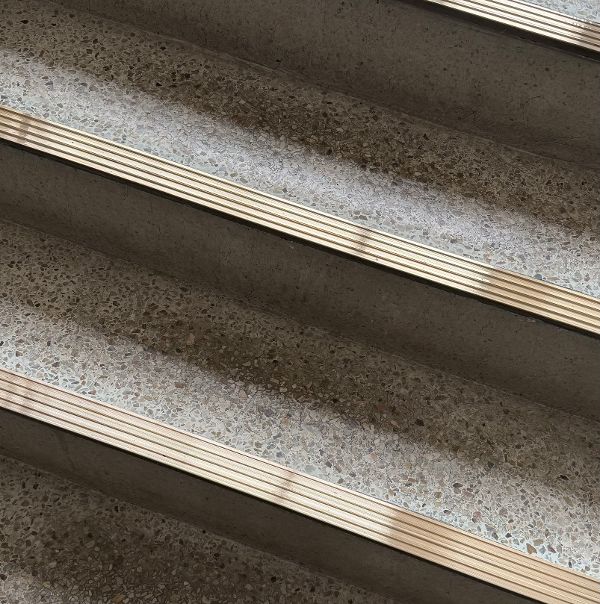

Where the design includes grooves or a separate anti-slip insert, identify the actual component, connection and replacement method. Performance claims must correspond to that surface and its stated conditions of use.

Check the dimensions and alignment of each step, then confirm whether the chosen profile is installed with the facing or applied afterwards. Dry-fit the front edge, verify the fixing and support detail, and resolve the ends before permanent installation.

Complete the assembly according to the selected detail and protect it during adjacent work. Before handover, check each step for loose components, lifted edges, inconsistent projection and accessible sharp points.

Profile selection depends on the stair location, facing material, cleaning regime and required performance. Local movement or noise at the front edge calls for inspection of the support and connection. A decorative cover should not conceal an unresolved defect in the underlying step.
