Circular Water Ripple Stainless Steel Ceiling Inserts

Circular water-ripple stainless steel inserts frame overhead reflections, with project-specific edge supports and coordinated lighting, ventilation and maintenance access.
Request a quote → Contact us now →
Product description

The gallery compares circular water-ripple stainless steel ceiling inserts above suspended fixtures and a separate linear service layout. The common design task is to keep equipment openings, access and the reflective panel pattern coordinated. These are visual references from different interiors, not one installation or one standard diameter.

Project FAQs

How is a circular insert held overhead?

Provide a designed circular edge frame and a carrier connected to the primary structure. A plain decorative plasterboard recess should not be assumed to support the metal insert or chandelier.

How are fittings and access positioned?

Overlay pendant support, lights, air grilles, detectors, sprinklers and access panels before cutting the metal. Large openings may need a reinforced edge or separate equipment module.

What determines the insert size?

Room proportions, curvature, sheet module, transport and the required opening locations set the feasible diameter. Approve a sample for ripple direction and seam visibility under the intended light.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Confirm the circular setting-out point, diameter, edge sections and panel divisions against the approved room and ceiling drawings.
  • Connect the edge frame and carriers to the verified structure; check that the decorative recess is not being used as an unapproved support.
  • Coordinate independently supported pendants, lighting, ventilation, detectors and sprinklers before cutting openings; detail reinforced edges or separate equipment modules where required.
  • Agree transport, lifting and removal access with the installation team, and approve the texture and seam appearance on a representative sample. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

Circular Water Ripple Stainless Steel Ceiling Inserts

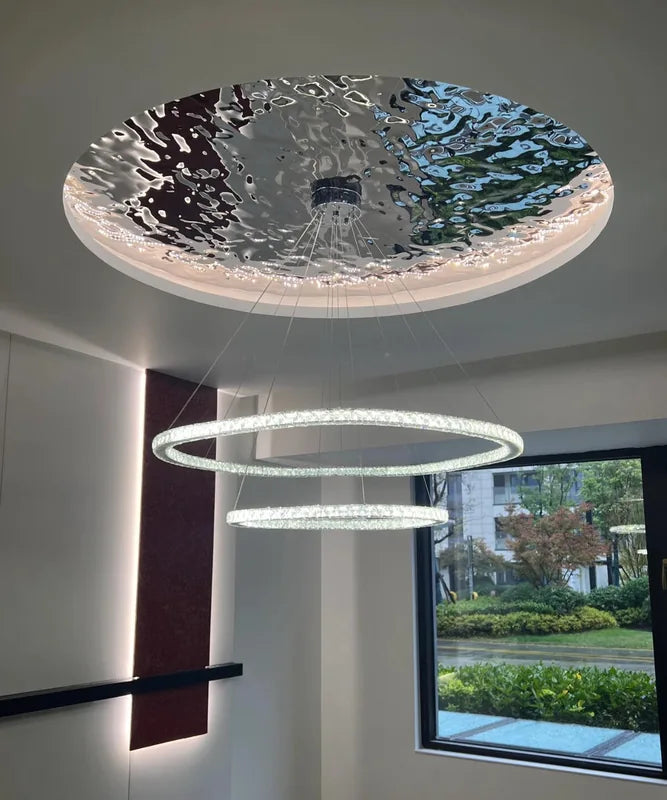

Circular Inserts for a Defined Overhead Feature

A circular ripple field creates a focused ceiling feature within a larger recessed surround. The references include different interior arrangements, not a single installation or standard diameter. Develop the circle around the room proportions, intended fixture position and the surrounding ceiling composition.

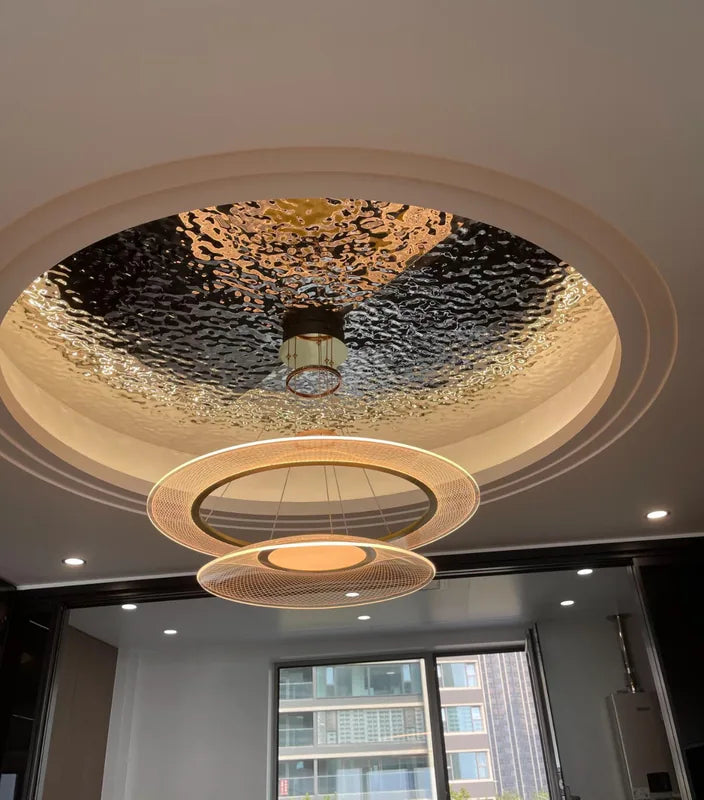

Ring Lights With Separate Supporting Connections

Hanging ring fixtures sit below several of the circular references, creating a layered overhead arrangement. Their suspension points and cables need coordination with the ripple field, but the fixtures require their own approved support connections rather than hanging from an unspecified decorative panel.

An Edge Frame Matched to the Recess

Define the circular edge frame and carriers back to the primary structure. The surrounding plasterboard recess cannot be assumed to support the insert. Resolve edge closures, assembly joints and access to connections on the approved sections, including how the metal meets the adjacent finished ceiling.

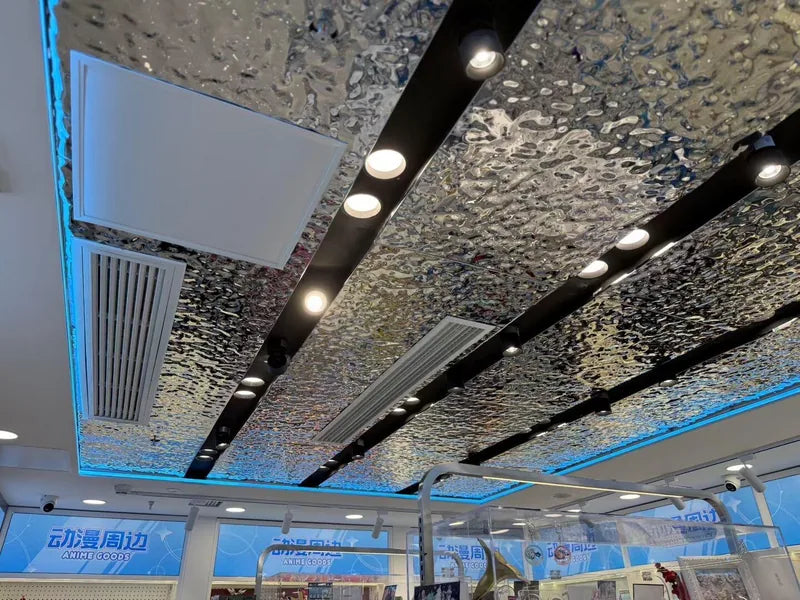

Circular Features and Linear Service References

The separate linear reference places lights and air grilles alongside ripple panels. It illustrates another service-layout approach, not a circular insert supplied with those components. For the selected design, overlay lighting, ventilation, detectors and sprinkler requirements before agreeing any panel openings.

Diameter and Panel Layout Developed Together

Set the insert diameter alongside sheet divisions, transport access and the approved edge geometry. Large openings may require a reinforced edge or a separate equipment module. Review a sample for texture, reflection and seam appearance rather than assuming every circular field can be supplied as one uninterrupted panel.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

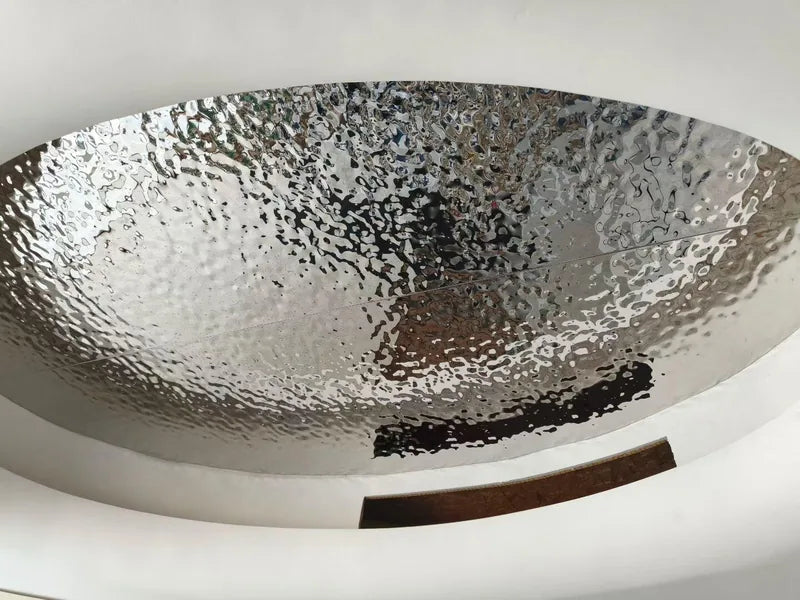

A Circular Outline Around Irregular Reflections

The consistent circular boundary contrasts with the uneven ripple texture, giving designers a clearly contained feature within the surrounding ceiling.

Layered Lighting Beneath the Reflective Field

Ring fixtures introduce another visible outline below the insert. Their relationship with the circle can be developed while keeping structural and electrical responsibilities separate.

Alternative Interior Proportions to Review

The circular references vary in surround and fixture arrangement. They offer design directions for a project-specific composition rather than a promise of identical room dimensions or a fixed kit.

Service Planning Beyond the Decorative Circle

The linear reference broadens the coordination discussion to air grilles and lighting lanes, helping teams separate the chosen feature geometry from its supporting service requirements.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
