Custom architectural metal ceilings

Custom Perforated and Mesh Stainless Steel Ceilings with Lighting

Geometric perforations, light-point fields and woven mesh offer distinct stainless steel ceiling designs for entrances, corridors and hospitality spaces.
Request a quote → Contact us now →
Product description

Custom perforated and mesh stainless steel ceiling panels offer a more graphic way to shape an entrance, corridor, spa or public interior. The collection includes geometric perforations, dense light-point patterns and woven mesh surfaces, each creating a different relationship between the ceiling, light and shadow. A perforated ceiling can be used as a full overhead plane or as a focused canopy above an arrival zone, while mesh panels can follow an undulating profile for a softer architectural effect. Xinmao Metal develops decorative stainless steel ceiling panels around the intended visual pattern and project layout. Panel dimensions, visible seams, ceiling edges and integrated openings can be coordinated with the design so the finished ceiling has a clear, intentional rhythm. Finishes and pattern direction can be selected to complement contemporary hospitality, retail and residential projects.

Perforated Panels and Woven Mesh Options

Perforated stainless steel sheet and woven stainless steel mesh are separate decorative options, not interchangeable descriptions of one construction. Confirm the selected pattern, panel edge and support in the approved sample. Any acoustic claim requires a specified complete assembly and supporting test evidence.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Identify each area as perforated sheet or woven mesh and check its actual pattern, edge condition and retention detail before installation.
  • Confirm carriers, hangers and anchors for the complete selected assembly, including the shaped mesh profile where applicable.
  • Coordinate light positions, drivers, wiring and separate equipment supports, leaving the approved access route available before closing the ceiling.
  • Inspect lit samples, panel joints and pattern direction under agreed conditions. Apply any acoustic backing only to its specified build-up, not as an unapproved substitute. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

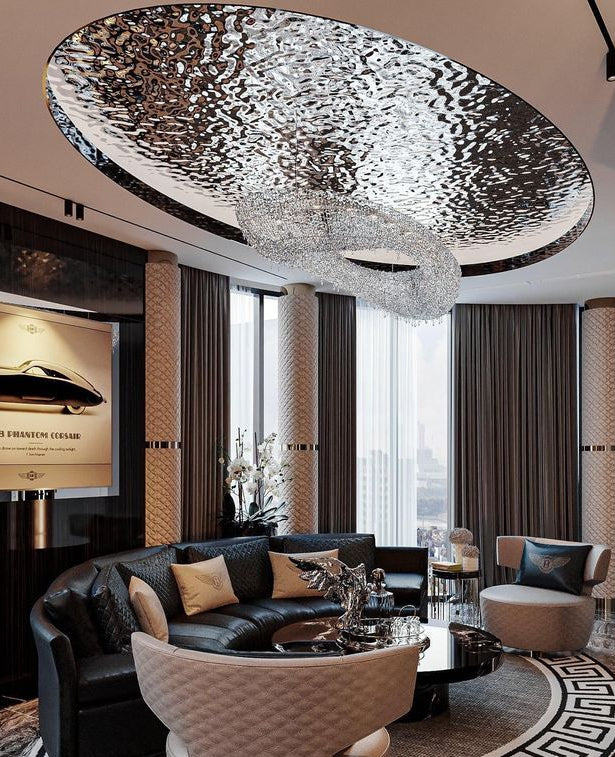

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

Custom Perforated and Mesh Stainless Steel Ceilings with Lighting

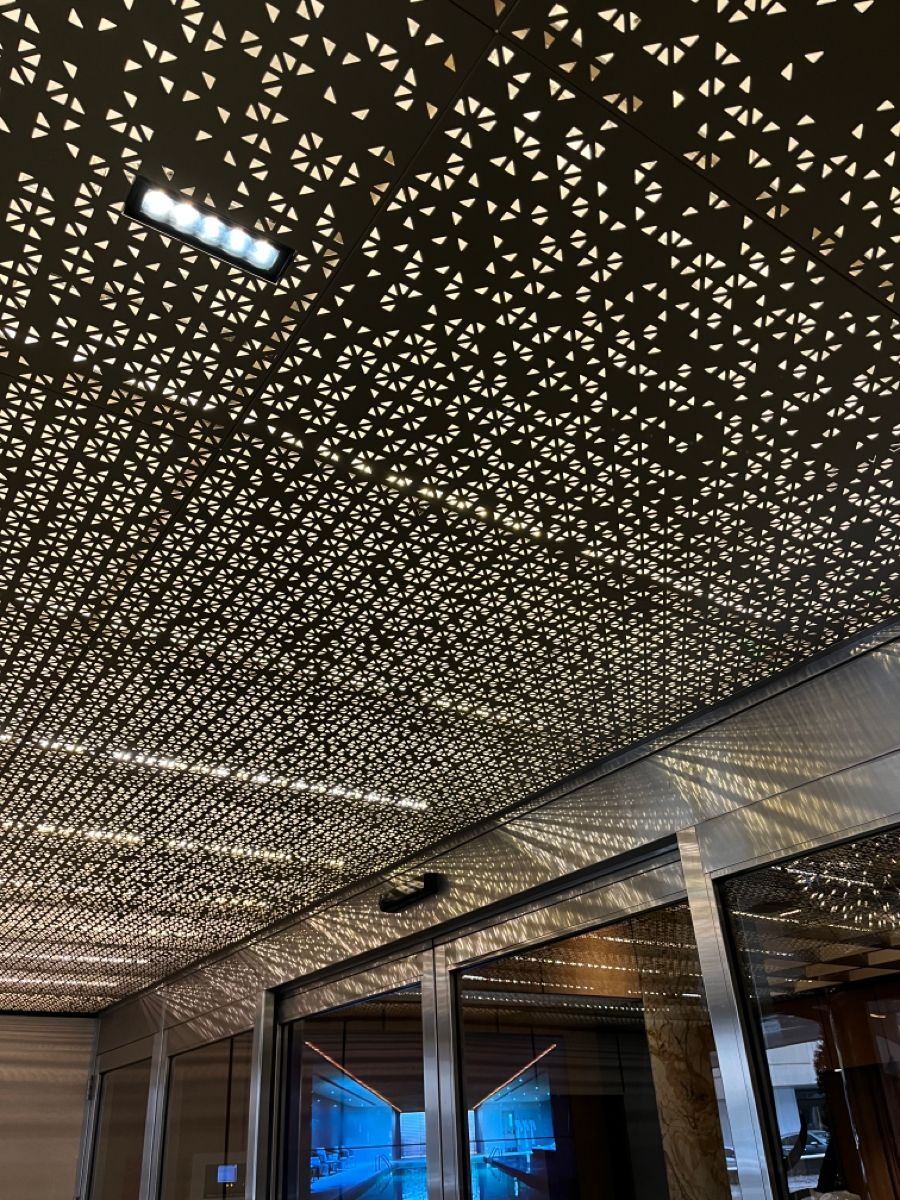

Geometric Perforations Create A Graphic Overhead Pattern

The geometric option groups small angular openings across a dark metal field. It gives an entrance canopy or interior ceiling a more graphic character than a reflective solid sheet. Establish the selected pattern, edge margins and panel joints together so the repeat remains intentional around the perimeter and service openings.

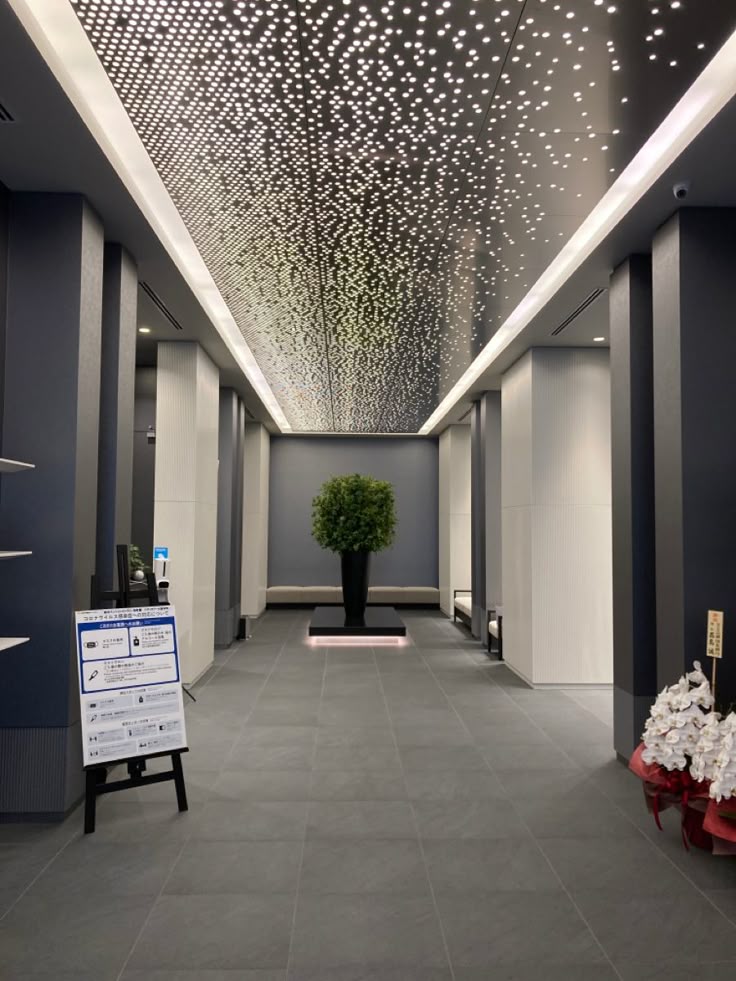

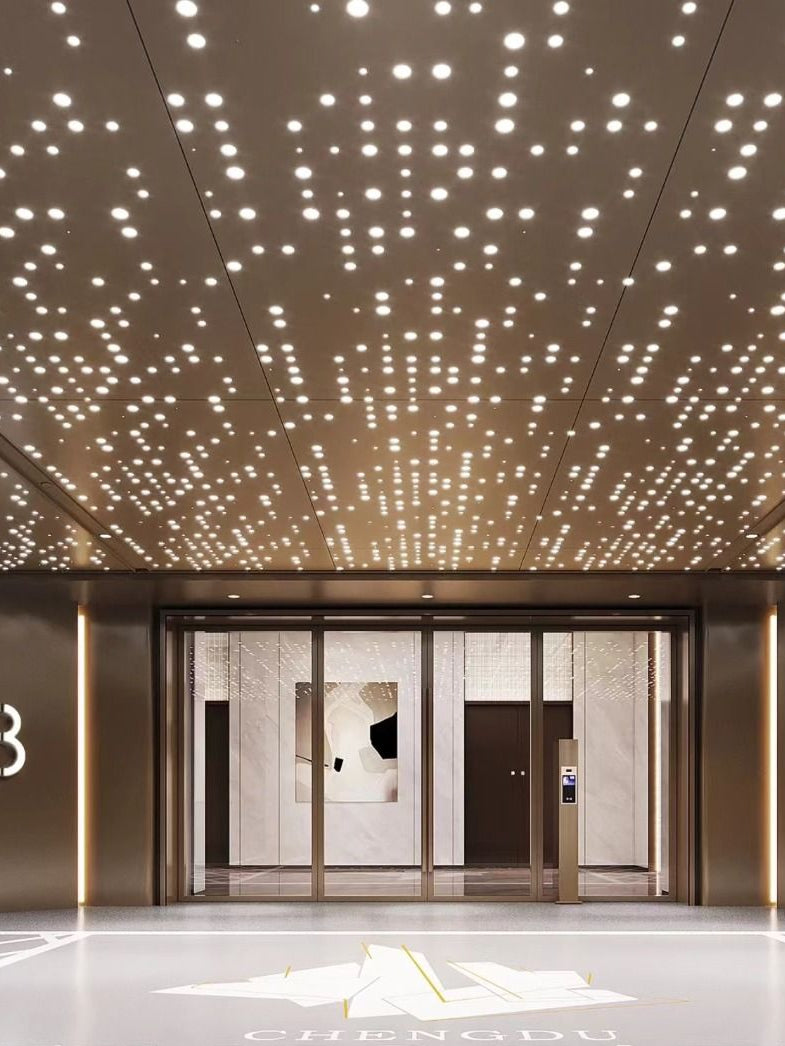

Small Light Points Offer A Different Decorative Direction

More closely distributed openings can create a field of light points when coordinated with the chosen backlighting. This is a separate visual direction from the larger geometric motifs. Review a representative lit section to agree the opening distribution, visible joints and relationship to adjacent walls before approving the overall ceiling arrangement.

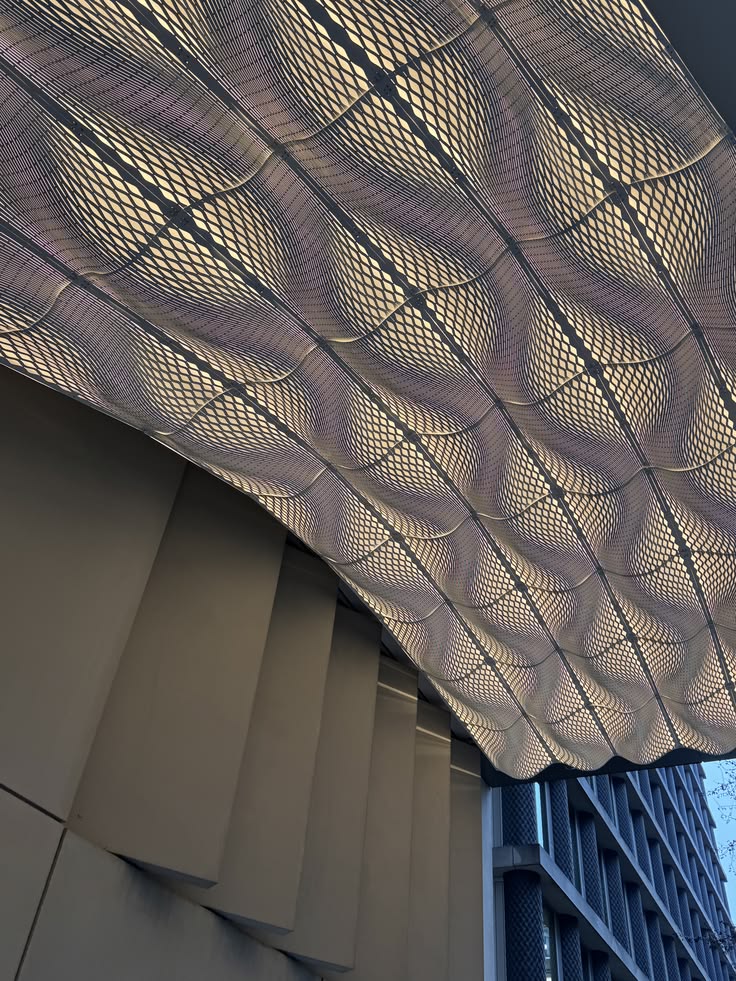

Woven Mesh Can Form An Undulating Ceiling Surface

A woven mesh alternative introduces a more continuous fine texture that can follow a wave-like profile. It is not the same construction as perforated stainless steel sheet. Define the actual mesh, edge retention, shaping and support for the selected design rather than assigning it a punched-panel detail.

Light And Metal Need A Coordinated Scope

Openings, mesh and the chosen light source work together to produce the intended appearance. Set out fixtures, drivers, wiring access and any separate supports with the electrical team before fabrication. The decorative ceiling design does not automatically include a complete lighting installation or establish an electrical performance specification.

Acoustic Requirements Refer To The Complete Assembly

A perforated face alone does not establish sound absorption. Where the project requires acoustic performance, specify the backing, cavity, panel construction and installation arrangement, then confirm suitable evidence for that combination. Decorative light openings and the mesh alternative should not be treated as interchangeable acoustic systems.

Panel Access And Borders Follow The Selected System

A flat field, a canopy edge and an undulating mesh run each need their own connection and access detail. Coordinate panel sizes, service penetrations and removable sections with the carrier or supporting frame. The support and retention arrangement is developed for the actual assembly rather than implied by its visible pattern.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

Angular Openings Establish A Graphic Pattern Field

Grouped geometric perforations give the ceiling a different rhythm from small circular light points.

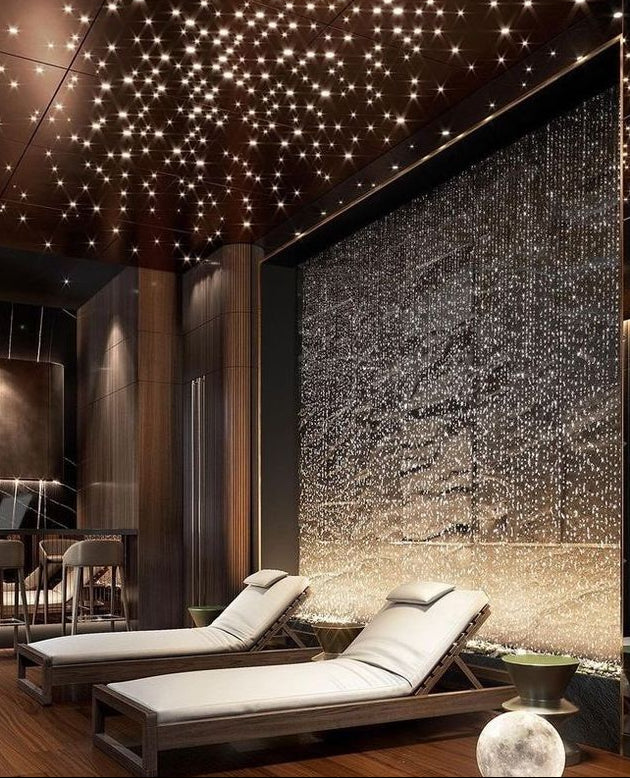

Dense Light Points Provide Another Visual Scale

A finer opening distribution can create a more atmospheric surface when developed with suitable backlighting.

Woven Mesh Allows A Wave-Like Visual Profile

The mesh option offers a distinct textured construction with its own shaping and edge-retention detail.

Borders And Service Openings Remain Part Of The Pattern

Coordinated joints, edges and penetrations keep the ceiling composition legible across an entrance or corridor.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

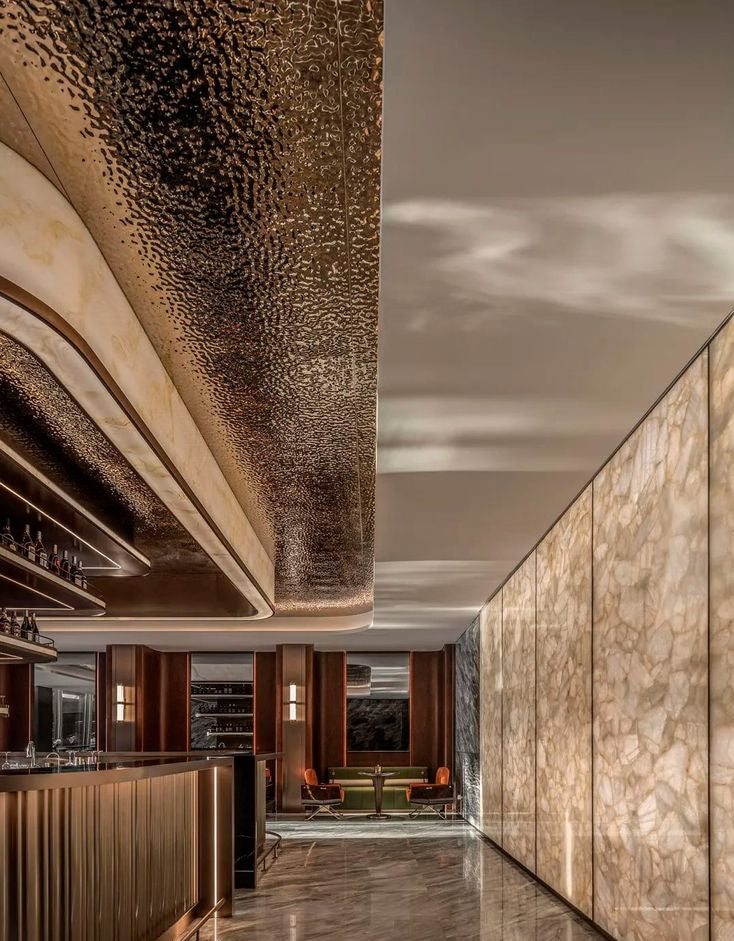

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
