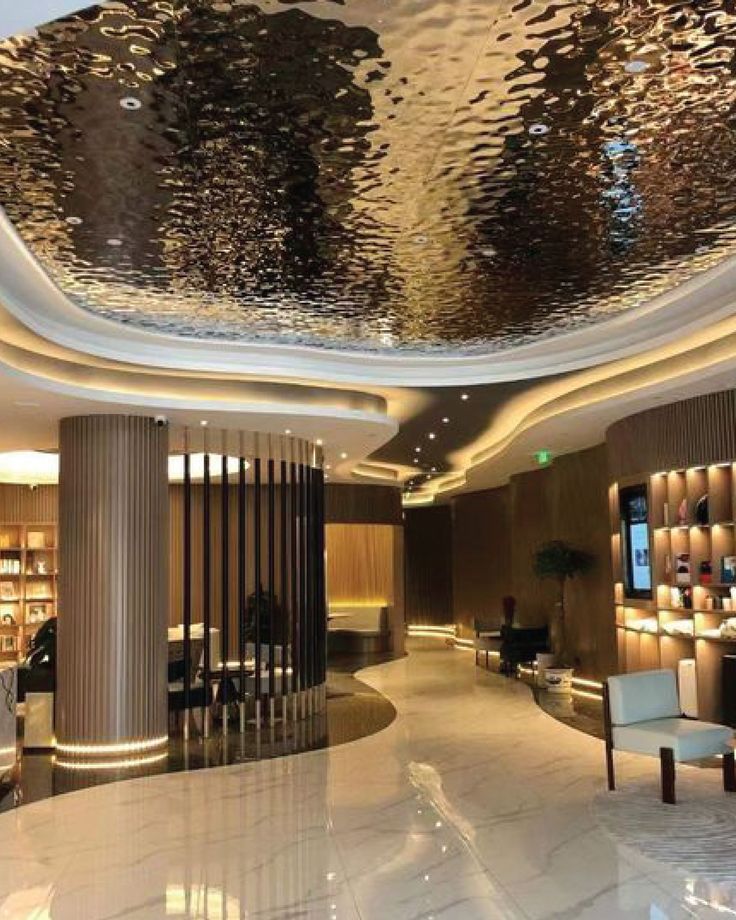

xinmaometal-gold-water-ripple-stainless-steel-ceiling-hotel-lobby
1 / 5

Custom architectural metal ceilings

PVD Gold Water-Ripple Stainless Steel Feature Ceiling Panels

PVD gold water-ripple stainless steel creates reflective ceiling features, with shaped outlines, panel joints and optional honeycomb construction developed for the project.
Request a quote → Contact us now →
Product description

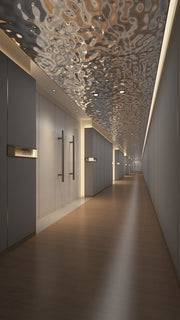

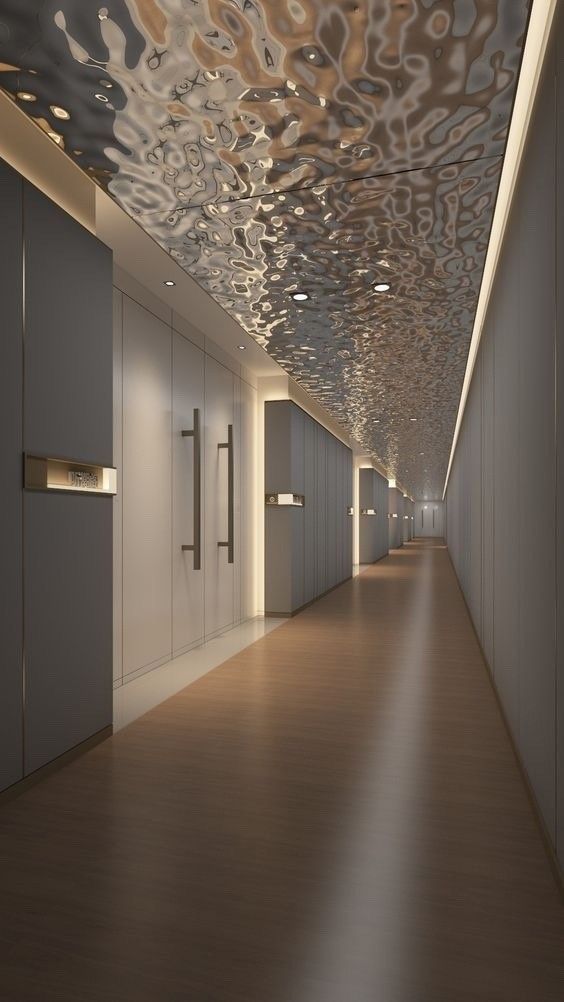

Gold water-ripple stainless steel ceiling panels bring a fluid reflective surface to hospitality and residential interiors. The embossed pattern catches surrounding light and gives recessed ceilings, corridor runs and shaped feature areas a changing visual texture. This collection is suited to hotel lobbies, restaurants, retail interiors, living rooms and circulation spaces where the ceiling is intended to be part of the design rather than a background plane. Xinmao Metal develops decorative stainless steel ceiling panels to suit the project layout, including panel size, joint arrangement, curved or straight ceiling geometry, edge details and coordinated openings. The visible gold-toned water-ripple finish can be used across a broad ceiling field or concentrated in a framed feature area, allowing designers to balance reflection with the surrounding materials and lighting.

Stainless Steel Honeycomb Panel Construction

For the PVD gold water-ripple ceiling field, a stainless steel-faced honeycomb panel option is available. The panel build-up uses a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. Core specification, bonding system, overall thickness, sealed edges and fixing inserts are selected for the project and recorded in the approved drawings. Hangers and a designed carrier transfer the complete assembly load to the primary structure; lights and other equipment require separately approved support.

Can curved or folded areas use honeycomb construction?

Honeycomb construction is generally not recommended for very small curved areas or tight-radius returns. Where the curved area is large enough and the geometry is suitable, it can be detailed as a separate curved honeycomb panel and joined to the adjacent panels during installation. Curvature, panel division, joint locations and fixing details are confirmed in the approved shop drawings and mock-up; not every fold or rounded edge uses a honeycomb core.

Approve the PVD gold tone, water-ripple texture and adjacent-panel appearance against the agreed sample under the specified lighting. Color and dimensional acceptance follow the project tolerances rather than an absolute uniformity promise.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Verify which scheduled areas use the approved honeycomb build-up and which require separate curved pieces or returns before accepting the panel layout.
  • Confirm complete module weights, carriers, hangers and structural anchors before lifting. Provide separately approved supports for lights and other equipment.
  • Set out free-form borders, service openings and removable access modules from the coordinated ceiling plan; do not trim a finished honeycomb edge on site without review.
  • Protect the PVD ripple face and inspect adjacent-panel appearance against the approved sample under agreed lighting, using only the finish-approved cleaning method. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

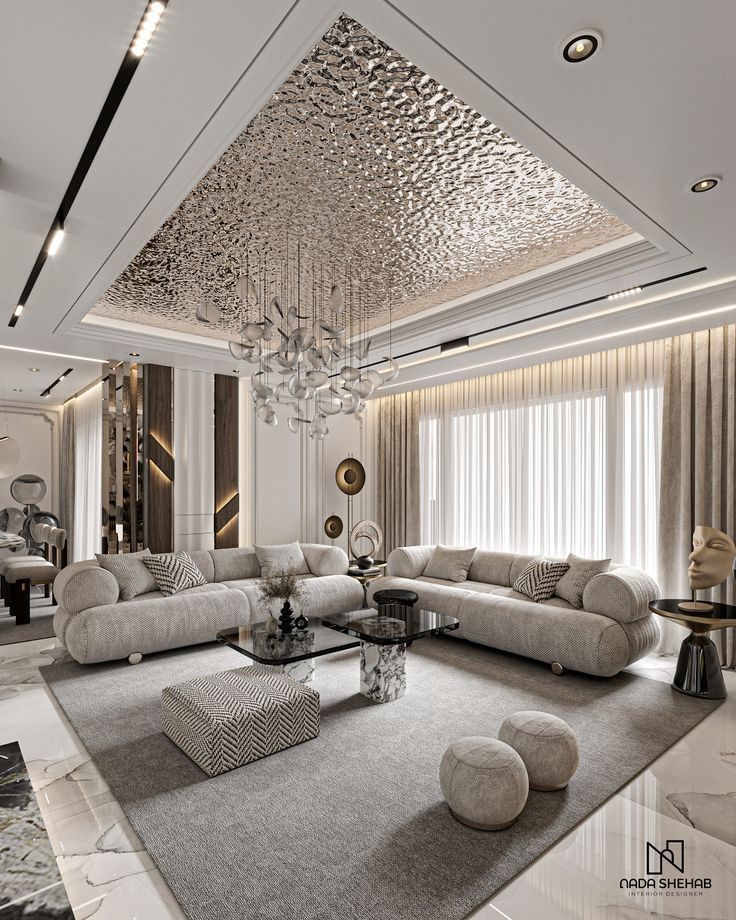

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

PVD Gold Water-Ripple Stainless Steel Feature Ceiling Panels

Gold Rippled Faces Make The Ceiling A Focal Surface

The PVD gold water-ripple face breaks reflected surroundings into a textured overhead field. It can concentrate attention above a reception area or dining space rather than covering every surface in metal. Agree the actual ripple texture and gold tone through samples, since differently scaled patterns create noticeably different visual results.

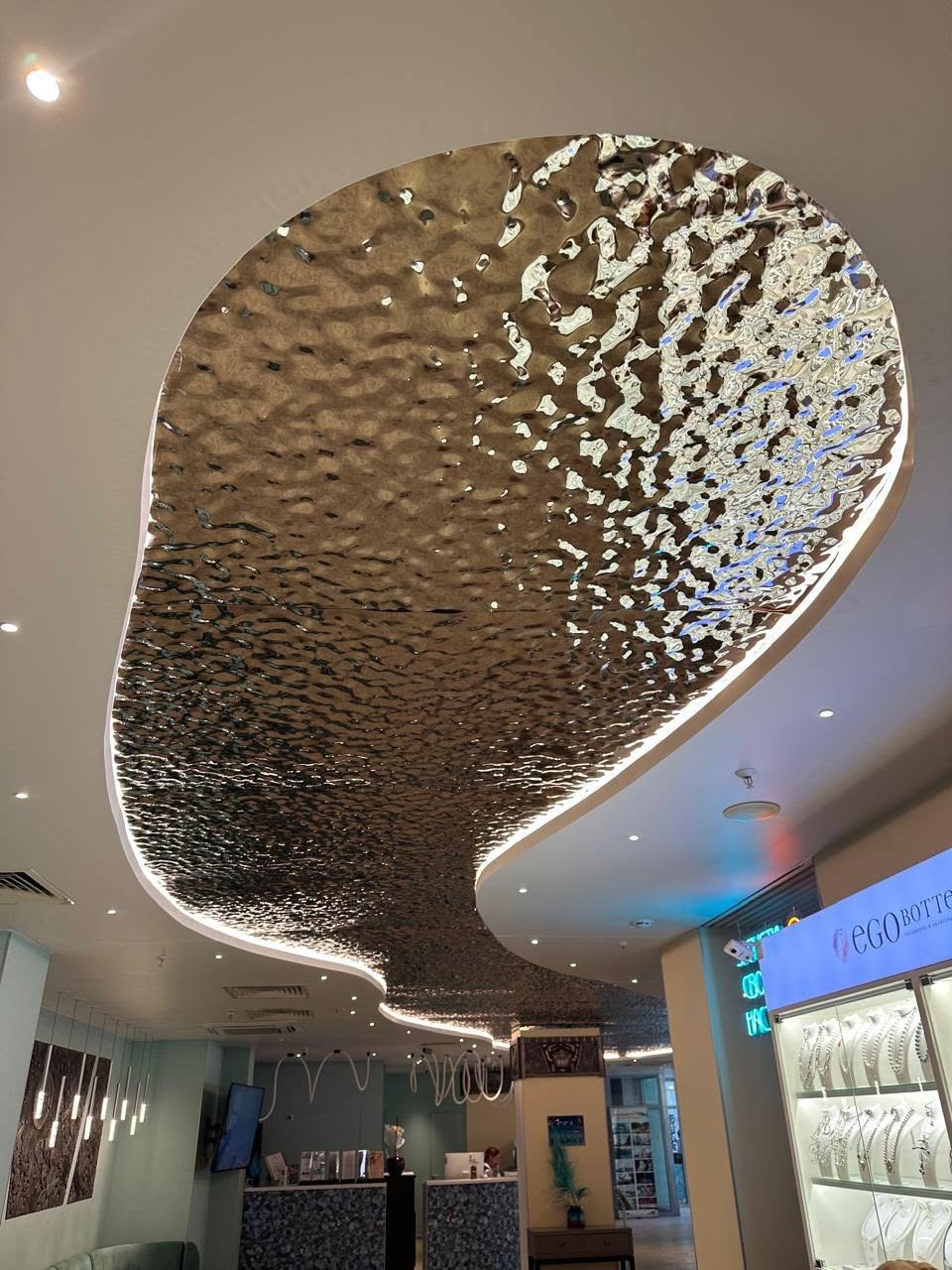

Free-Form Outlines Extend Beyond A Rectangular Inset

Rounded recesses and sweeping irregular borders offer alternatives to a straight ceiling field. The perimeter can follow a circulation route or establish a feature above selected tables. Develop the outline in the reflected ceiling plan, including panel divisions, rather than assuming a free-form field is fabricated as one continuous sheet.

Recessed Borders Separate Reflection From The Surrounding Ceiling

A framed recess gives the rippled surface a clear boundary against quieter surrounding finishes. Perimeter lighting can emphasise that boundary, while downlights or pendants create different reflected details. Coordinate these effects with the lighting designer; fixtures, drivers and equipment supports remain separately agreed parts of the project.

A Honeycomb Option Has A Defined Material Build-Up

The specified honeycomb option uses a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. The core, bonding, total thickness, edge closures and fixing inserts are selected for the actual module. This build-up is an option to document, not a construction inferred from the gold appearance.

Tight Curves Need A Different Edge Resolution

Very small curved areas and tight-radius returns are generally unsuitable for simply continuing the honeycomb core. A larger suitable curved area can be developed as a separate curved honeycomb piece and joined during installation. Resolve the selected edge and joint through drawings and a representative mock-up before production.

Openings And Panel Supports Follow The Ceiling Layout

Service penetrations, border panels and access locations need to be coordinated with the selected carrier and hanger arrangement. The complete ceiling load must reach the primary structure through a designed support system. Lighting and other equipment require their own approved support rather than loading the decorative ripple face.

Approve Adjacent Panels Under The Intended Lighting

A reflective gold finish changes with its surroundings, viewing angle and ripple pattern. Review neighbouring panels, joints and the chosen PVD tone together under agreed lighting. Visual acceptance should follow the approved sample and project tolerances, not an expectation of identical reflections or absolute colour uniformity at every position.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

A Gold Reflective Field Defines The Feature Area

Ripple texture gives a reception or dining ceiling a more expressive surface than a quiet surrounding plane.

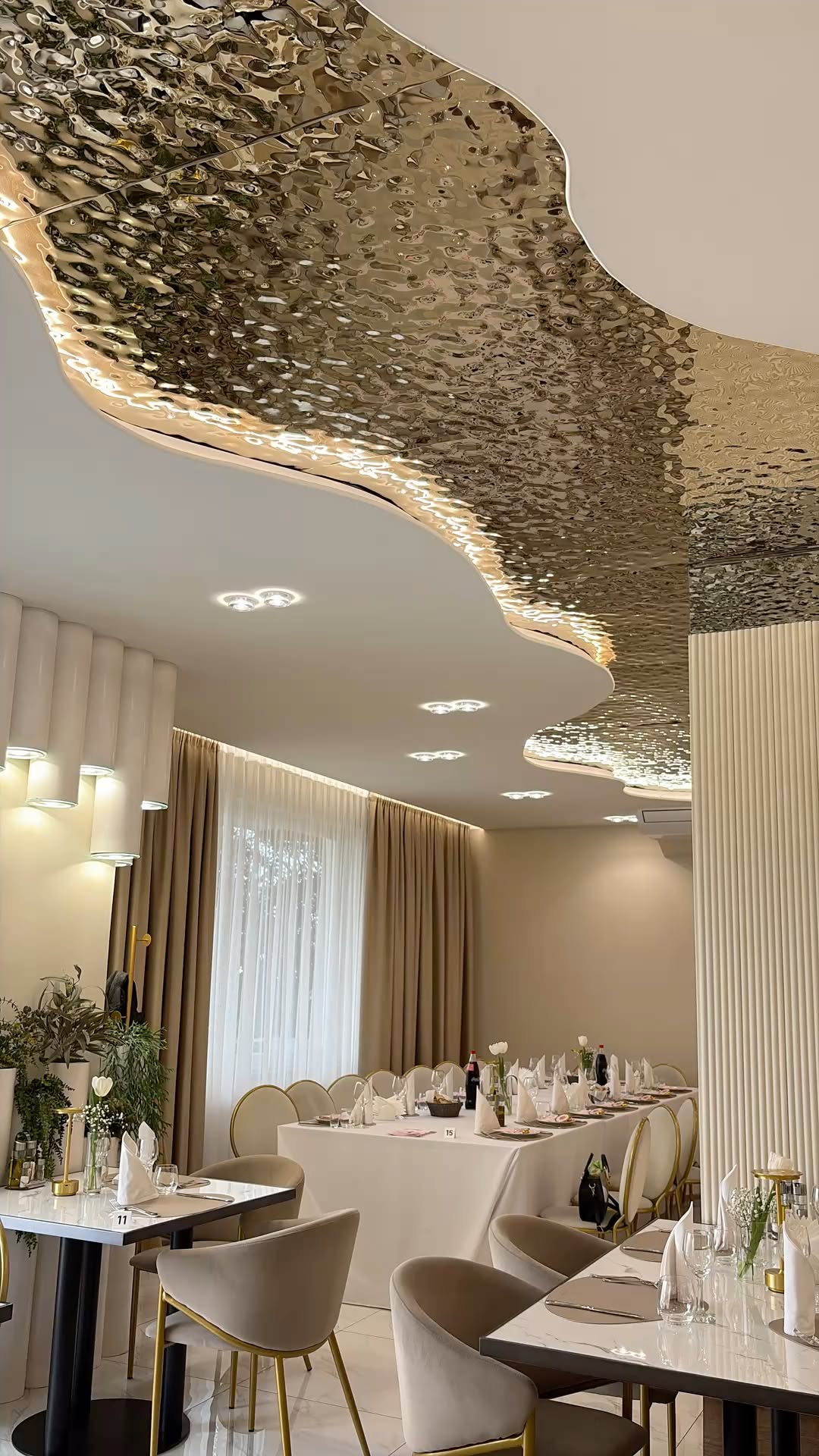

Sweeping Borders Allow More Than Rectangular Layouts

Curved and irregular outlines can relate the feature to circulation or the position of furniture below.

A Recessed Edge Gives The Pattern A Boundary

The border separates the reflective field from adjacent finishes and can be coordinated with perimeter lighting.

A Documented Honeycomb Option Supports Module Development

Stainless facing, aluminum backing and metal honeycomb are specified with the actual edges and fixing inserts, not assumed at every fold.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
