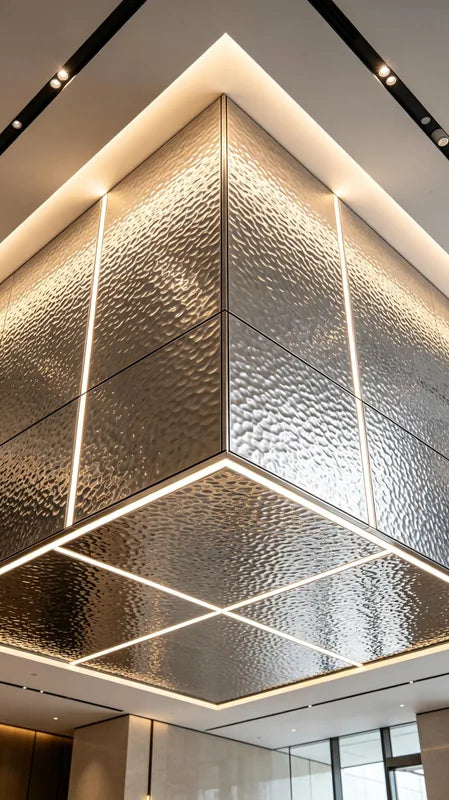

Angular water ripple feature ceiling concept with perimeter light
1 / 4

Custom architectural metal ceilings

Water Ripple Stainless Steel Ceiling Concepts with Perimeter Lighting

Angular and rounded ripple-ceiling concepts explore perimeter lighting, with panel construction and the real stainless steel finish resolved through drawings and samples.
Request a quote → Contact us now →
Product description

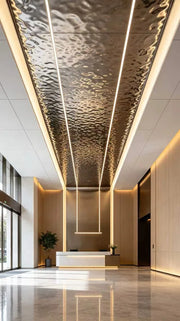

These visualisations compare shaped water-ripple stainless steel ceiling concepts: angular, long rectangular and rounded forms with perimeter lighting. They are design references, not photographs of one completed installation. Xinmao Metal develops a buildable stainless steel panel interpretation after the chosen shape, reflectivity and ceiling height are agreed, with the finish verified by a physical sample.

Stainless Steel Honeycomb Panel Construction

The chosen feature-ceiling concept can be developed using stainless steel-faced honeycomb modules where the geometry is suitable. The panel build-up uses a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. Core specification, bonding system, overall thickness, sealed edges and fixing inserts are selected for the project and recorded in the approved drawings. Hangers and a designed carrier transfer the complete assembly load to the primary structure; lights and other equipment require separately approved support.

Can curved or folded areas use honeycomb construction?

Honeycomb construction is generally not recommended for very small curved areas or tight-radius returns. Where the curved area is large enough and the geometry is suitable, it can be detailed as a separate curved honeycomb panel and joined to the adjacent panels during installation. Curvature, panel division, joint locations and fixing details are confirmed in the approved shop drawings and mock-up; not every fold or rounded edge uses a honeycomb core.

Project FAQs

How is a shaped feature ceiling supported?

A project-designed frame and hangers carry the decorative panels to the primary structure. Rounded or angled perimeters require their own edge detail and cannot rely on a generic flat-ceiling grid.

Where do lights and service access go?

Show cove lights, drivers, sprinklers, detectors and any return-air paths on one coordinated ceiling plan. Provide removable panel zones before the reflective surface is divided into modules.

What makes the illustrated finish achievable?

Approve a real material sample under the intended lighting. The rendering cannot prove the final ripple depth, panel size, joint visibility or color; these are resolved in the mock-up and shop drawings.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Do not release installation from the visualisation alone; obtain approved geometry, ceiling levels, module divisions and a physical finish sample.
  • Confirm where honeycomb construction is suitable, and identify tight returns or separate curved pieces with their own connection and edge details.
  • Approve the supporting frame, hangers and structural connections for the complete selected assembly, with lighting equipment supported independently.
  • Coordinate all service openings and removable access zones before closing the feature, checking the real illuminated mock-up against the agreed design intent. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

Water Ripple Stainless Steel Ceiling Concepts with Perimeter Lighting

Concept Images Compare Several Overhead Geometries

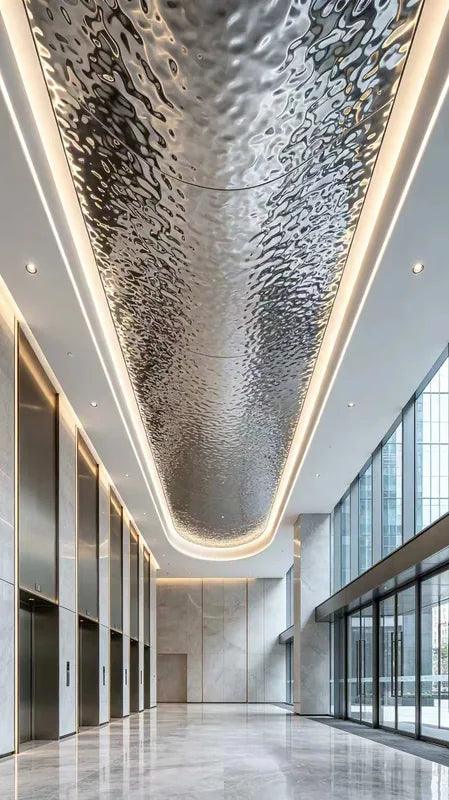

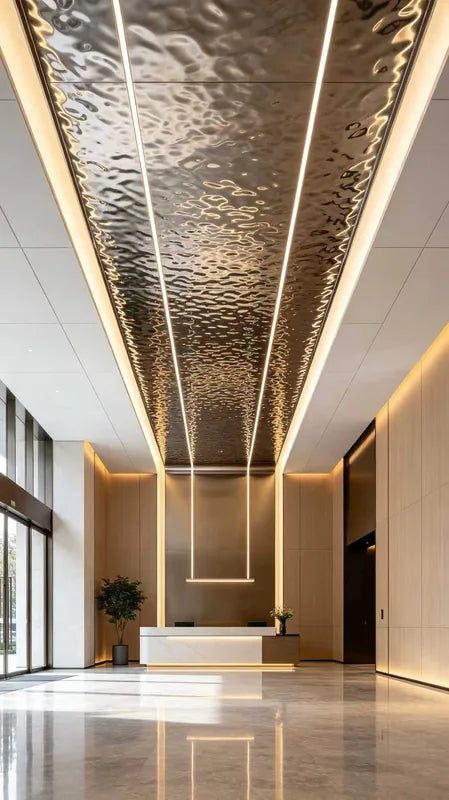

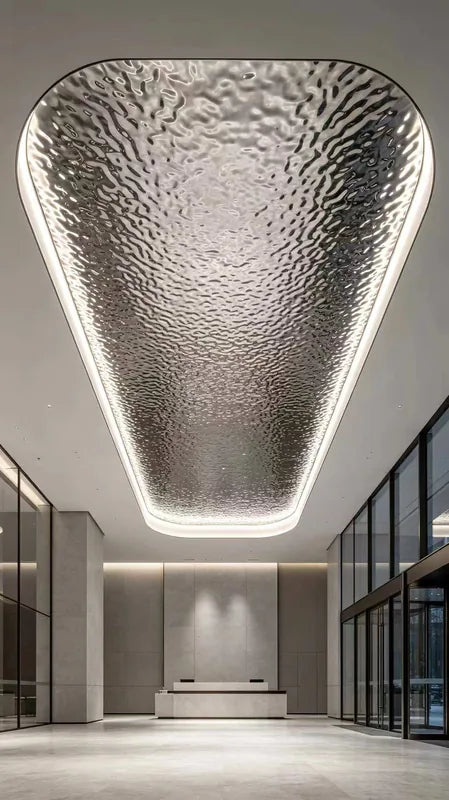

The design directions include an angular feature, a long rectangular field and softer rounded or capsule-like outlines. They help the project team choose a spatial composition before fabrication planning. These are visualisations rather than evidence of one completed installation, so dimensions, panel breaks and the final material appearance remain to be developed.

Perimeter Light Gives Each Concept A Defined Outline

An illuminated edge separates the ripple field from its quieter surrounding ceiling and emphasises the chosen shape. Decide the intended border width, light position and ceiling height as one design exercise. The illustrated glow does not establish a supplied luminaire, driver arrangement or a guaranteed lighting result.

A Physical Surface Sample Translates The Rendered Texture

A rendering can suggest a reflective water-ripple surface but cannot settle the actual ripple depth, tone or joint visibility. Compare real stainless steel samples under the proposed lighting, then review a meaningful panel junction. This gives architects and contractors an approval basis beyond the conceptual image.

Honeycomb Modules Are An Option For Suitable Geometry

Where the chosen layout permits, the concept can be developed with a stainless steel face, aluminum back sheet and metal honeycomb core. Select the bonding, core, complete thickness, edge seals and inserts for that module. The construction is an agreed project interpretation, not a hidden build-up proven by a visualisation.

Small Returns And Larger Curves Need Different Details

Very tight curved areas generally should not be assumed to continue the honeycomb core around the return. A sufficiently large suitable curved area can instead be developed as a separate curved honeycomb piece. Establish the selected transitions, joints and supporting frame in the mock-up rather than using one flat-panel edge detail everywhere.

A Coordinated Ceiling Plan Makes The Concept Buildable

Bring cove lights, drivers, sprinklers, detectors, return-air paths and removable zones into one drawing before dividing the reflective field into modules. The carrier and hangers must transfer the complete panel load to the primary structure. Separate equipment supports and access requirements are resolved alongside the chosen outline.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

Angular And Rounded Outlines Offer Different Design Directions

The concept set allows comparison of sharper forms, long fields and softer capsule-like compositions.

Illuminated Borders Make The Ceiling Shape Legible

Perimeter light can give the selected ripple field a clear visual boundary, with its actual equipment defined later.

A Real Sample Bridges Design Image And Fabrication

Physical stainless steel provides the basis for agreeing texture, colour and joint appearance beyond a rendering.

A Chosen Concept Can Guide The Module Layout

The preferred geometry gives the project team a starting point for panel divisions, edges, supports and service access.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
