CUSTOM STAINLESS STEEL COLUMN COVERS

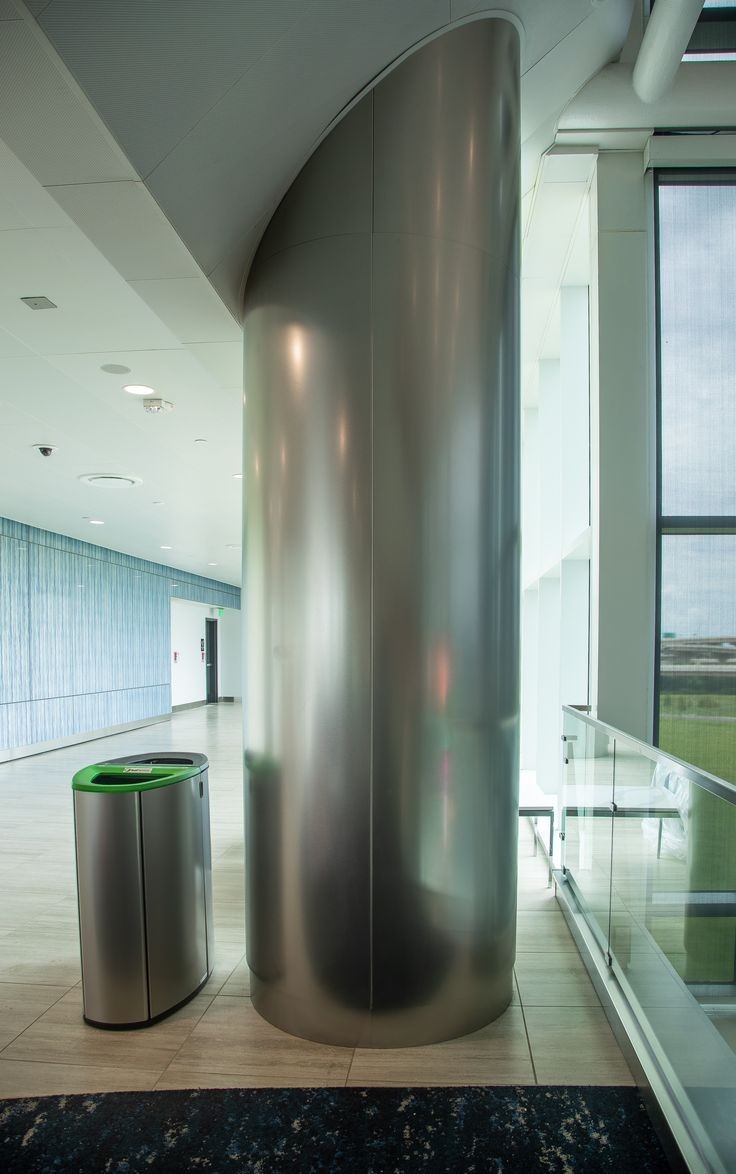

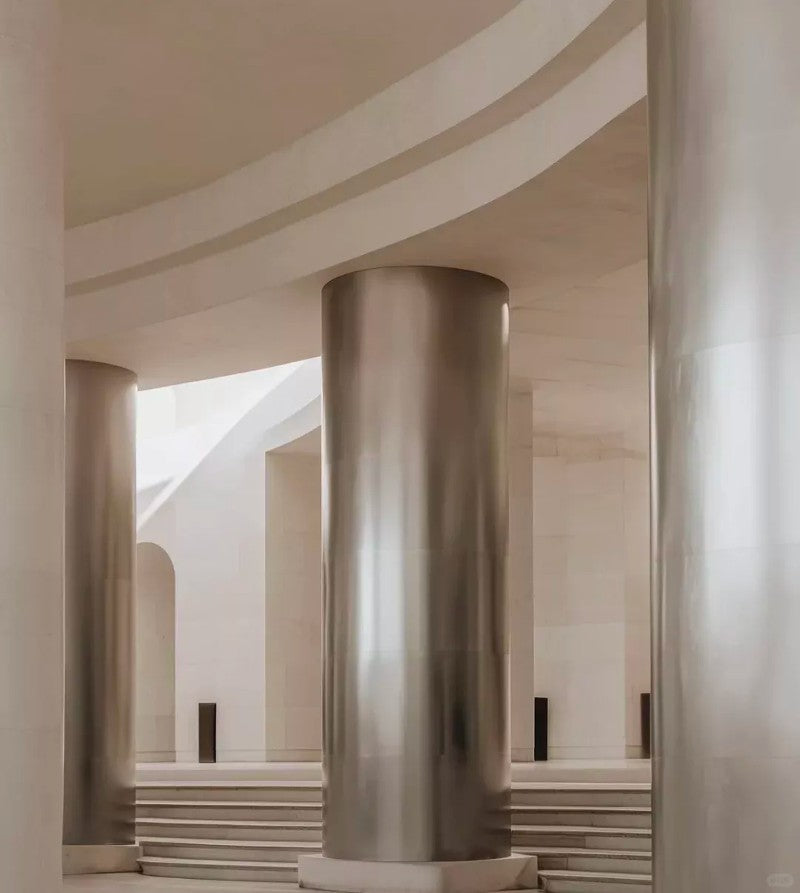

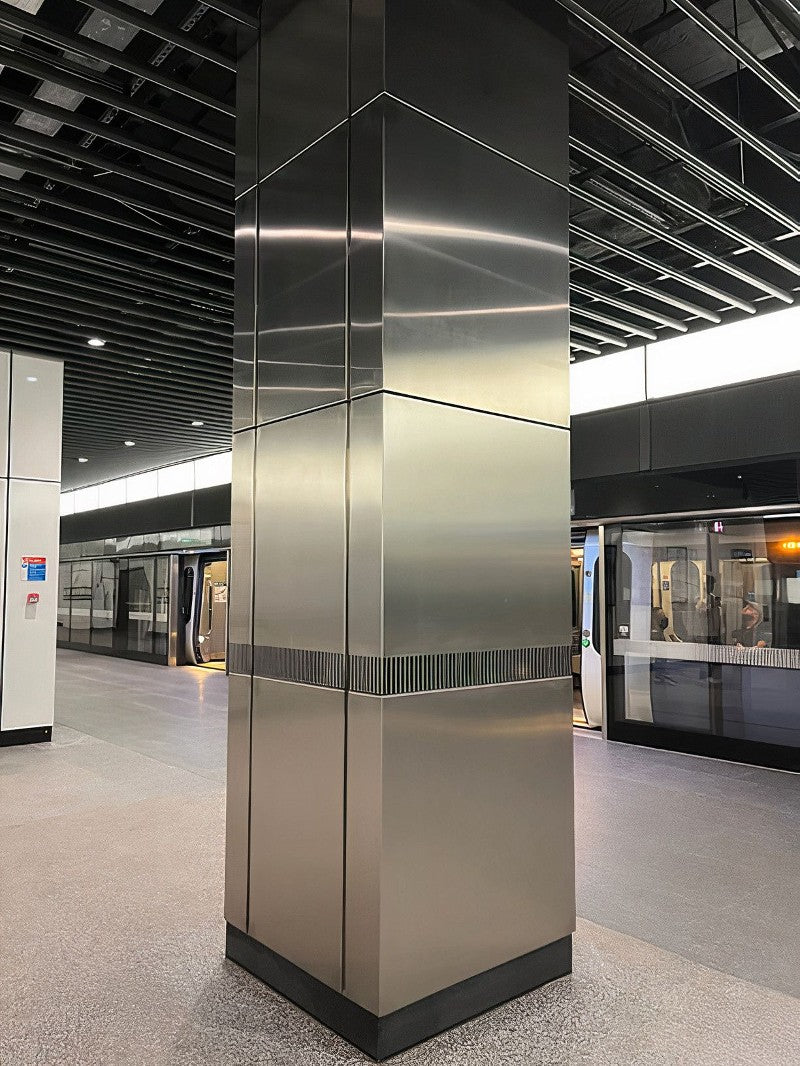

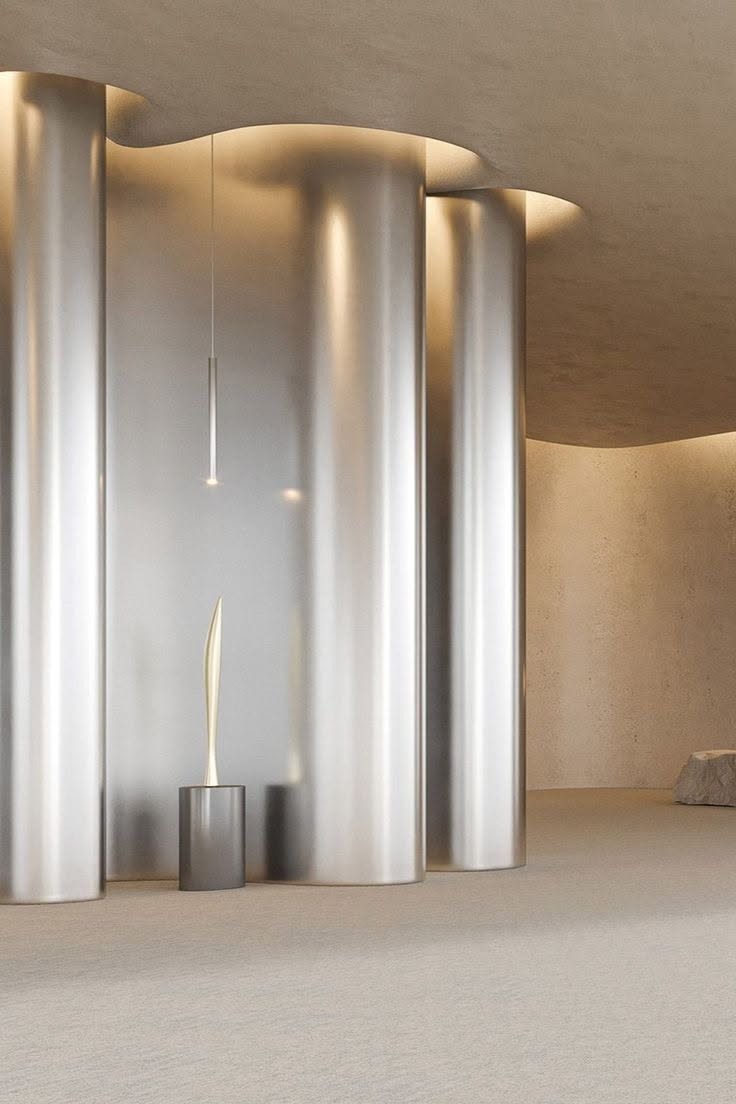

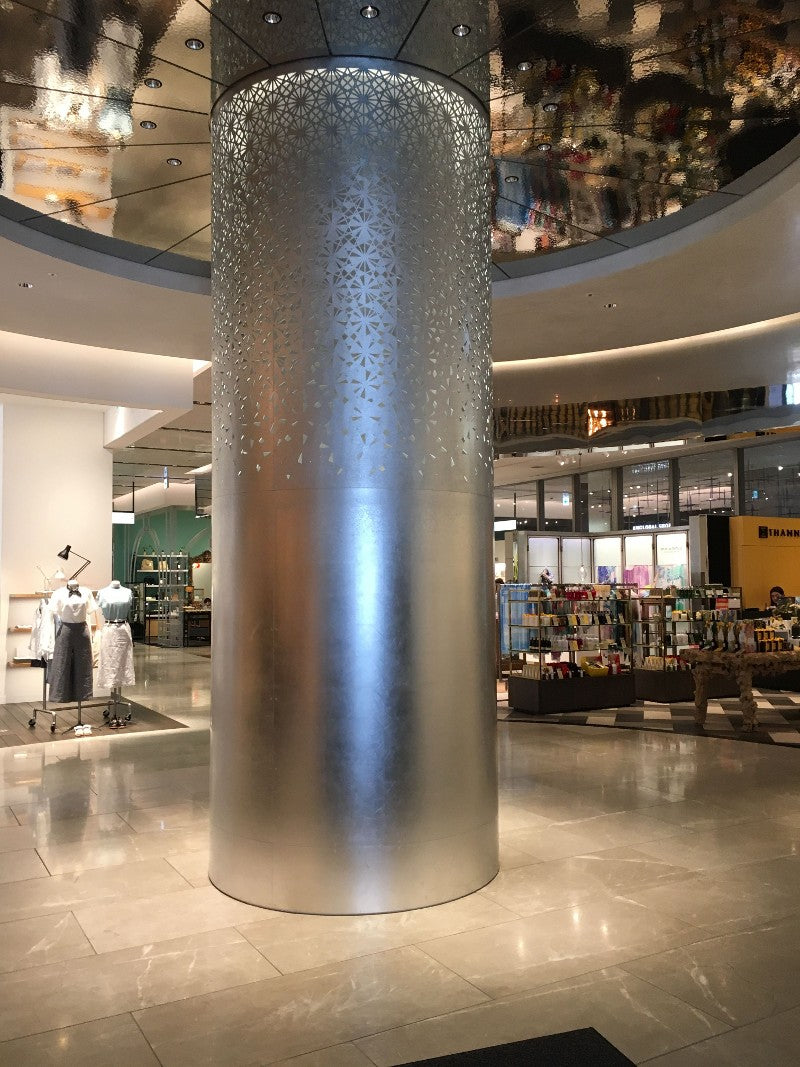

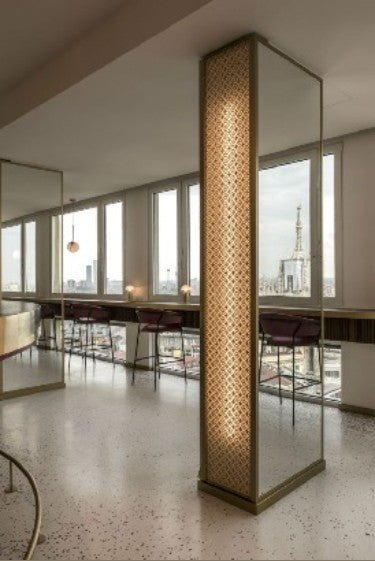

Custom stainless steel column covers can be adapted for public buildings, transport interiors, retail malls and bright architectural atriums. This group shows several useful directions: smooth satin cylinders, brushed square covers, a silver perforated upper screen, patterned gold metal and tall columns set against stone or glazed interiors. Round and square profiles can be coordinated with ceiling openings, wall panels, floor plinths and circulation zones so the metal reads as part of the architecture. A satin surface keeps the reflection controlled, while perforated or patterned sections add depth where a feature column needs more visual texture. Xinmao Metal develops column cladding around the visible geometry, preferred color, panel breaks and access requirements of each project. The result is a practical B2B product family for architects, contractors and commercial fit-out teams seeking stainless steel column covers that can move from a clean transit environment to a more decorative retail or hospitality setting.
Profile-led design:
Round, square, rectangular, faceted and project-specific column forms can be developed from approved dimensions or survey information.
Finish coordination:
Brushed, satin, mirror, textured, PVD or other approved finish directions can be reviewed alongside adjacent architectural metalwork.
Panel strategy:
Segmented wraps, access panels and controlled seam positions help the cover follow the elevation while remaining practical to handle and install.
Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480
PRODUCT DETAILS
Five engineering decisions for developing stainless steel column covers and metal wraps around project geometry, finish intent and installation constraints.
Typical parameters for preliminary design. Final geometry, material, finish, joints and fixing details are confirmed against approved drawings, samples and site conditions.
Profile selection establishes the panel shape, seam logic and relationship with adjacent walls, ceilings and floors.
The build-up is selected around the column geometry, handling route, fixing method and access requirements.
Final dimensions follow the actual column, surrounding build-up, panel joints and installation tolerances.
Final grade and gauge follow the project specification and the conditions around the column.
Support details are developed around the column condition, cover size, access and the intended finish.
Access needs should be identified before seam and fixing positions are finalized.
Physical samples establish the final tone, reflectivity, texture and relationship with the surrounding elevation.
Pattern density and detail scale are reviewed against the column size, viewing distance and cleaning access.
Colour, texture, sheen and grain direction are confirmed before production.
The route follows the approved geometry, finish direction, panel format and required level of visible joint control.
Seam positions are coordinated with the elevation and practical access instead of being left as a site adjustment.
Joint locations, panel sequence and fixing allowances are reviewed before fabrication.
Base, head, wall, floor and ceiling interfaces are confirmed during design development.
Clear panel identification and handling planning reduce avoidable damage or confusion on site.
Final cleaning guidance should follow the approved finish sample and the project environment.
A stainless steel column cover has to do more than hide a structural element. It must follow the geometry, hold a consistent finish, allow for access and sit naturally within the surrounding architecture. Xinmao develops each wrap as a coordinated package from drawing review to installation.
A column cover is strongest when geometry, surface, joints and access are resolved as one architectural package.
We use profile, panel depth, surface texture and pattern scale to give the column presence while keeping the surrounding space legible.
The wrap is developed from approved dimensions, survey information or coordinated site measurements so the geometry follows the actual condition.
The elevation is divided into practical sections with controlled seams, clear identification and an installation sequence.
Finish samples and grain direction are reviewed with adjacent metalwork, stone, timber and glass before approval.
Fixing details, removable areas and surrounding clearances are coordinated during detailing, giving the site team a clearer package.
Explore related Xinmao project stories and architectural metalwork applications.
This 50-storey Shenzhen office building uses custom metal honeycomb panels for interior walls, curved columns, elevator areas and exterior cladding, backed by factory checks...
View project
Xinmao supplied XM-1617 PVD stainless steel decorative cladding for six curved viewing-platform assemblies at Kingdom Centre Riyadh. A partner contractor provided the load-bearing frames.
View project
Bantai Jinghe Sales Center in Nanning uses coordinated PVD stainless steel from the entrance canopy and exterior details to interior ceilings, screens, a water...
View projectView more
Practical answers for architects, contractors and project teams reviewing stainless steel column covers.
These interfaces should be drawn together with the surrounding floor, wall and ceiling finishes. Folded returns, trims, controlled joints or other approved details can be sampled to check appearance and touch points before production.
Seam positions depend on the column profile, panel size, finish direction and installation access. They can be located and reviewed in the approved elevation and sample. Concealed fixing may be possible for a specific build-up, but a completely seamless appearance should not be assumed.
Serviceable sections can be incorporated when identified before fabrication. Confirm the access location, panel release method and clearance needed to remove the section after nearby finishes and furniture are installed.
Brushed, satin, mirror, textured and PVD finishes create different levels of reflection and show contact differently. Review physical samples under the project's lighting and cleaning conditions, especially at hand height and near corners. Final material and finish selection should follow the project specification.
Outdoor column covers require separate review of exposure, material grade, movement, drainage, base clearance, support and dissimilar-metal contact. Interior decorative details should not be copied outdoors without a project-specific detail.
They can be considered for hotel lobbies, retail interiors, offices, residences, restaurants, public buildings, transport hubs and selected exterior applications. The final specification should respond to the actual location and exposure.
Yes. Round, square, rectangular, faceted and project-specific profiles can be developed from approved dimensions, drawings or coordinated site measurements.
Grades such as 304 or 316 may be considered depending on the project location, exposure, specification and approved finish. The final grade and gauge should be confirmed for the actual project.
Finish references and physical samples can be reviewed alongside nearby metalwork, stone, timber or glass. Colour, texture, sheen and grain direction should be approved before production.
Seams, returns, base and head details, removable sections and service openings are positioned around the elevation and the access requirements of the column.
Outdoor use can be considered, but the material, finish, backing, drainage, fixings and local exposure conditions must be reviewed for the specific project.
Overall dimensions, column profile, quantity, project location, intended use, finish preference, pattern references and available drawings provide a useful starting point.
Installation may use concealed brackets, frames, substrate fixing or removable sections depending on the existing condition. Base, head, wall, floor and service interfaces should be confirmed during detailing.
Use a soft cloth with clean water or a neutral cleaner suitable for the approved finish. Avoid abrasive pads and unsuitable acidic or alkaline chemicals.
Yes. Share the relevant elevations, plans, dimensions, reference images and site information. We can then review the profile, panel divisions, finish direction and fixing interfaces.
