Architectural stainless steel wall panels

Custom Perforated and Textured Stainless Steel Wall Panels

Perforated patterns, water-ripple textures and smooth stainless steel faces offer contrasting wall treatments for hospitality, retail and commercial interiors.
Request a quote → Contact us now →
Product description

Custom stainless steel decorative wall panels cover smooth brushed surfaces, water-ripple textures, perforated patterns and warm-toned feature panels. They can be used in hotel lobbies, lounges, bars, elevator areas and commercial interiors where the wall needs a stronger material presence. The collection shows both large panel fields and detailed decorative surfaces, from a reflective water-ripple wall to a perforated wall treatment around an opening. Xinmao Metal can tailor panel dimensions, pattern layout, seam direction, edge details and required cut-outs to the wall design. Smooth panels keep the look simple and architectural, while textured or perforated panels add visual depth. Each approach can be coordinated with adjacent stone, timber, lighting and furniture so the finished wall reads as part of the complete interior.

Panel system

Flat, folded, or cassette-style wall panels tailored to architectural elevations, corner details, reveals, and maintenance access points.

Information for review
  • Approve the chosen plain, ripple or perforated finish for each wall area. For hole patterns, confirm artwork, solid fixing borders and accessible-edge finishing before release to production.
  • Verify the selected backing, support and attachment without assuming perforations provide an acoustic function. Obtain complete-assembly evidence separately if any sound or fire rating is specified.
  • Coordinate entrance reveals, lift service access and removable covers before fitting the patterned panels; use the responsible equipment contractor's clearance requirements where applicable.
  • Handle textured and open-edged panels with suitable protection, then inspect face orientation, joint alignment and edge condition against the sample before final cleaning and handover. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Wall Panel Engineering & Specification

Five core engineering parameters for tailoring custom architectural wall cladding from design elevation to site installation.

Reference specifications for design planning. Final panel formats, finishes, and structural fixing methods are refined against approved shop drawings, sample sign-offs, and site conditions.

xinmaometal-bronze-perforated-stainless-steel-wall-cladding-corridor

Typical applications

Interior feature walls, lobby backdrops, external cladding, column wraps, soffits and entrance portals.

The location determines the required backing, joint treatment, access strategy and environmental review.

Panel geometry

Flat panels, folded returns, cassettes, curved elements, perforated features or mixed solid and open profiles.

Geometry is coordinated with corners, openings, doors, services and adjacent materials.

Module planning

Panel widths, heights and joint positions are balanced against architectural grids, sheet yield, and site handling constraints.

Final divisions follow approved drawings, transport access and the intended visual alignment.

Architectural wall panels built around the elevation

Wall cladding is read as one continuous architectural surface, but it is delivered through many coordinated decisions. Xinmao develops the visible panels, concealed support, joints and finish direction as an integrated wall system.

xinmaometal-bronze-stainless-steel-curved-wall-panel-lobby

Select the Wall Character Before the Pattern

This family includes smooth metal planes, textured feature walls and visibly perforated panels. Each gives a different relationship with neighbouring lighting and furniture. Choose one direction for the specified wall area, then develop its panel schedule rather than treating every warm-toned reference as the same decorative construction.

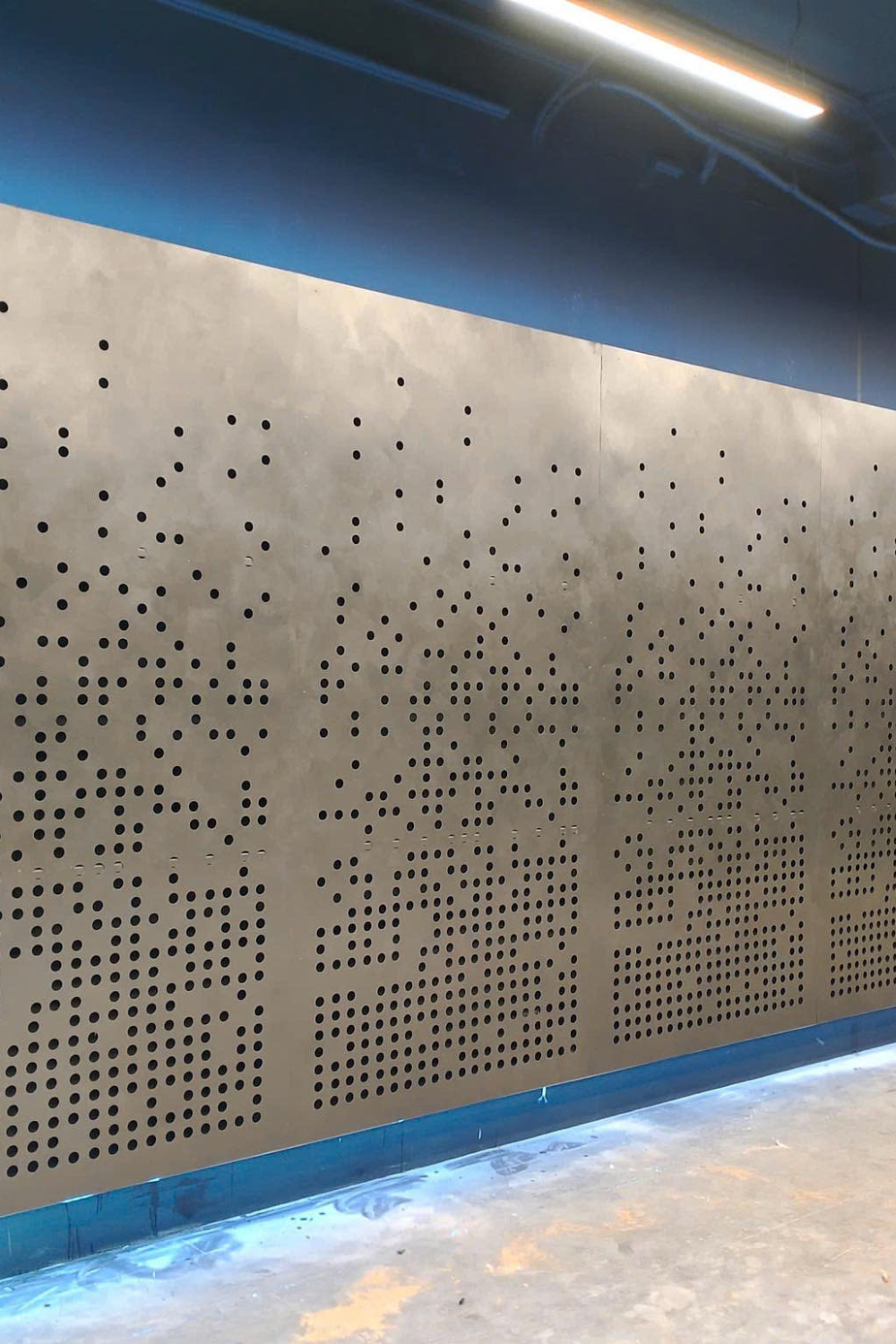

Perforation Gradients with Defined Solid Borders

The perforated references use changing hole distribution to give the face a visible pattern. Agree the hole layout, panel joints and solid edge zones on artwork before fabrication. Openings and attachment areas need coordination with that pattern; the photographs do not establish a hole diameter, pitch or open-area percentage.

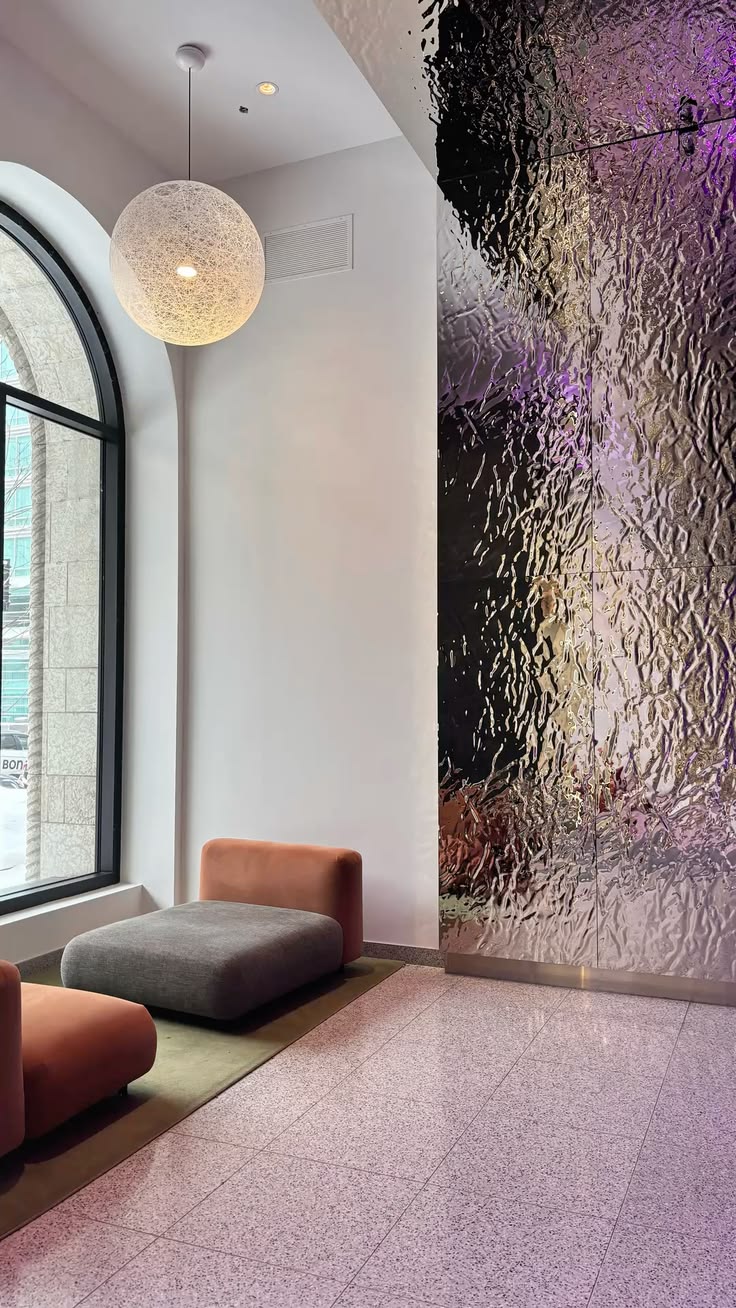

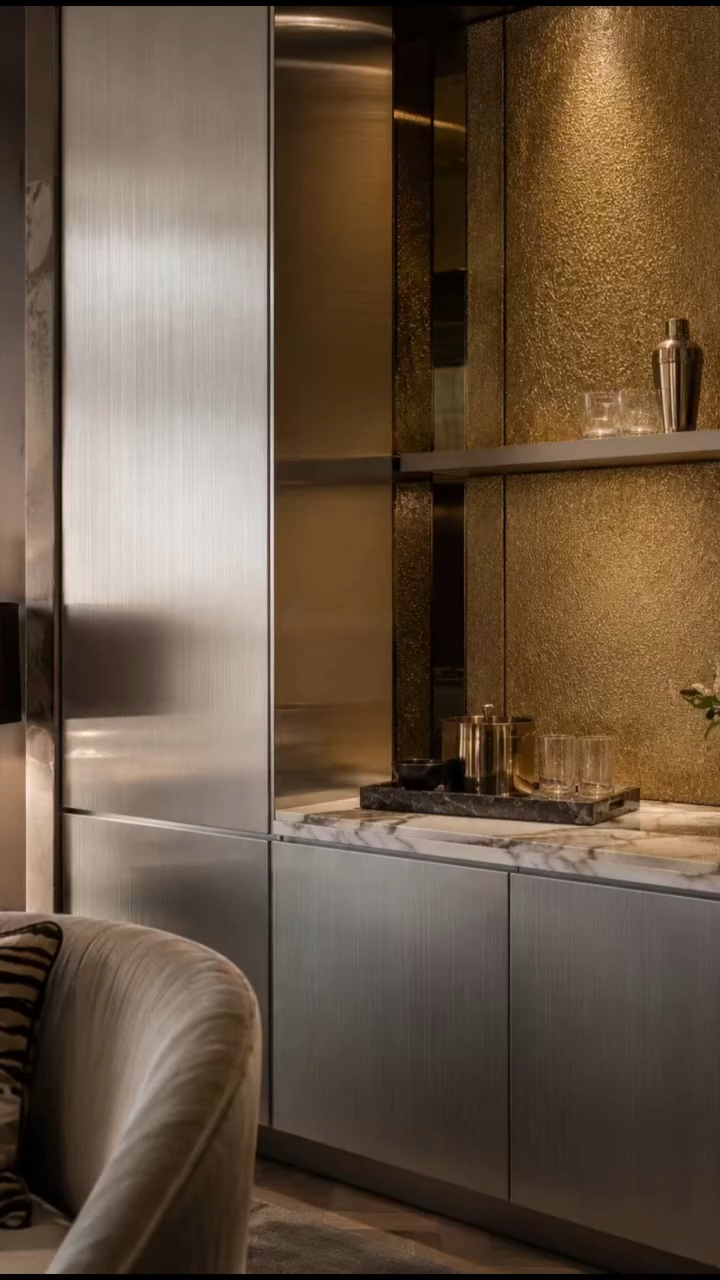

Ripple Texture in Dark and Warm Finishes

Dark reflective and gold-toned ripple references offer two different feature-wall directions. Their uneven surfaces break up reflected light rather than behaving like a smooth mirror plane. Approve the texture and colour together with the intended lighting, without assuming that either appearance identifies a coating process or a shared backing structure.

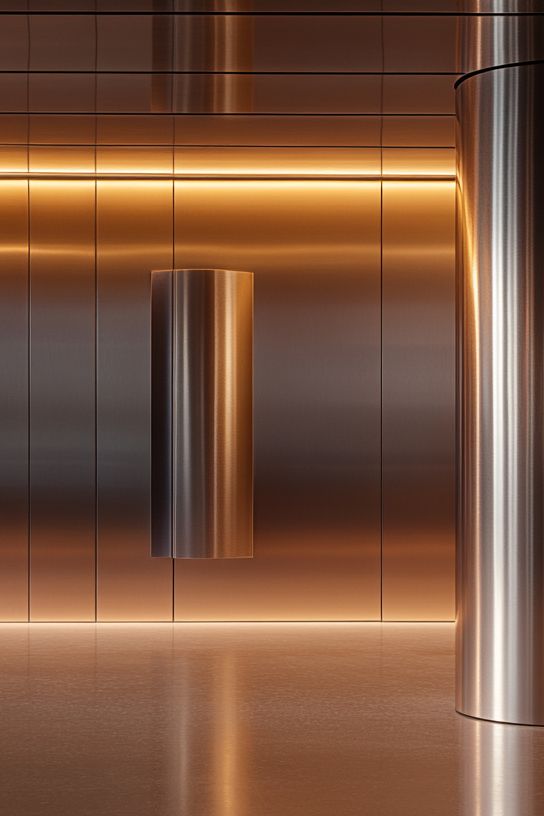

Smooth Panels Can Keep Nearby Details Quieter

The smoother wall options provide a contrast to the patterned and textured treatments. Broad faces make panel divisions, reflection and edge quality especially visible. Review the selected sample with its adjoining return and support arrangement, keeping any displayed sculpture, cabinetry or light fixture outside the wall-panel scope unless separately listed.

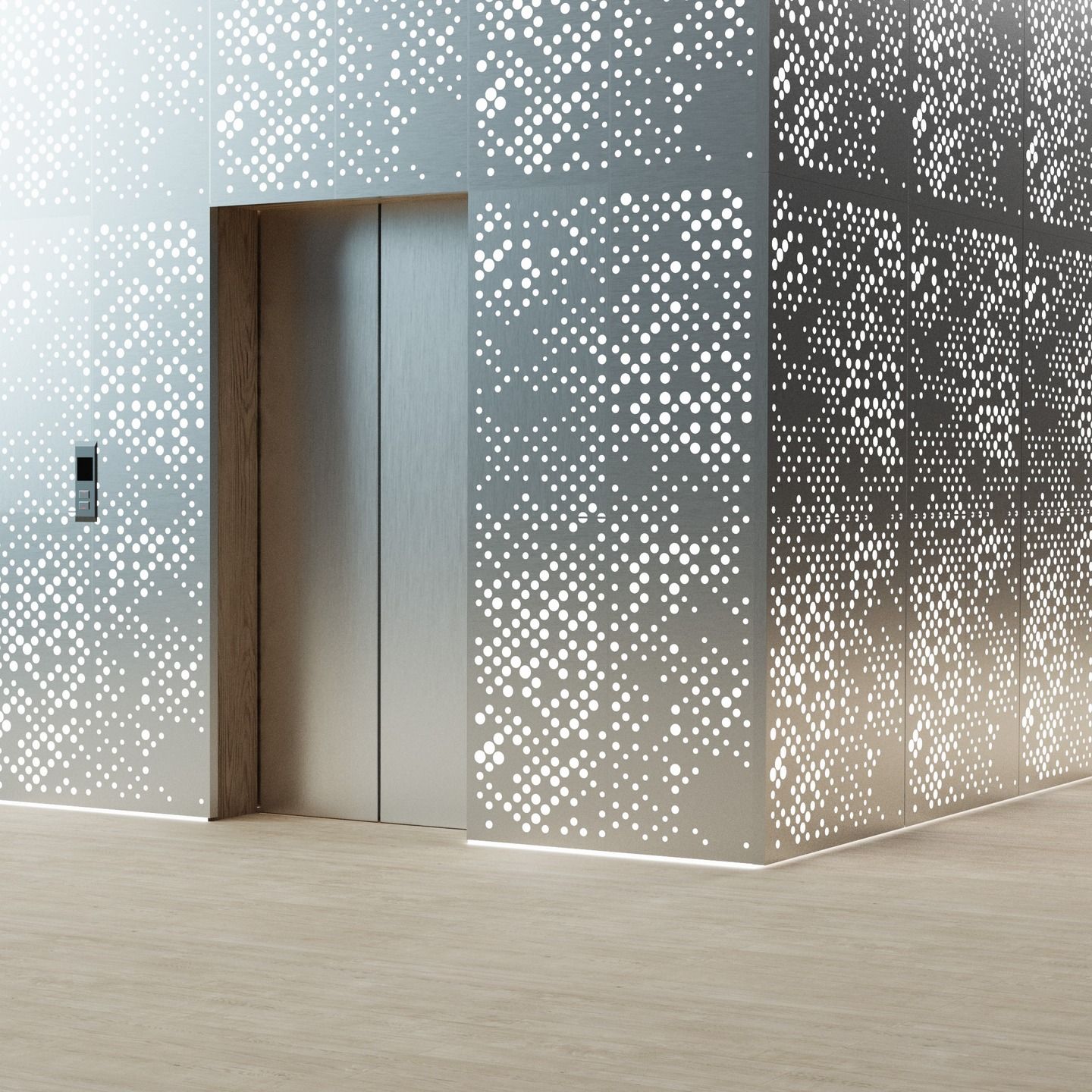

Openings Require Their Own Pattern and Reveal Detail

Around an entrance or lift opening, continue the intended panel layout through coordinated borders and reveals. Keep required access and equipment clearances outside the decorative fixing zone. A perforated or ripple face does not establish how a door frame, concealed backing or service cover will be supported.

Do Perforated Panels Provide an Acoustic Rating?

A perforation pattern alone does not establish sound absorption. If acoustic performance is required, confirm the backing, cavity, complete assembly and relevant evidence for the selected application. Otherwise specify these panels as decorative metal facing and avoid assigning a performance class from the appearance of the holes.

How Are Patterned Edges Prepared for Use?

The selected perforated layout needs an agreed edge condition, including cut openings, borders and exposed returns. Review accessible edges on a sample and confirm appropriate finishing before installation. This is separate from choosing the pattern and does not imply that one cutting method or one generic deburring detail suits every panel.

What Helps Compare Decorative Wall Panel Quotes?

Provide the selected finish reference, wall elevation, pattern artwork where needed, opening details and quantities. State whether the request is for plain, ripple or perforated faces and identify any required backing or performance evidence. Comparing the same construction scope avoids treating unlike decorative surfaces as directly interchangeable products.

Details that create a continuous surface

A successful cladding system seamlessly bridges visual design, precision fabrication, and site installation—preserving the true architectural intent.

Gradient Holes Introduce a Graphic Wall Surface

Changing perforation density provides a visible decorative pattern, with solid borders and opening positions developed alongside the selected panel layout.

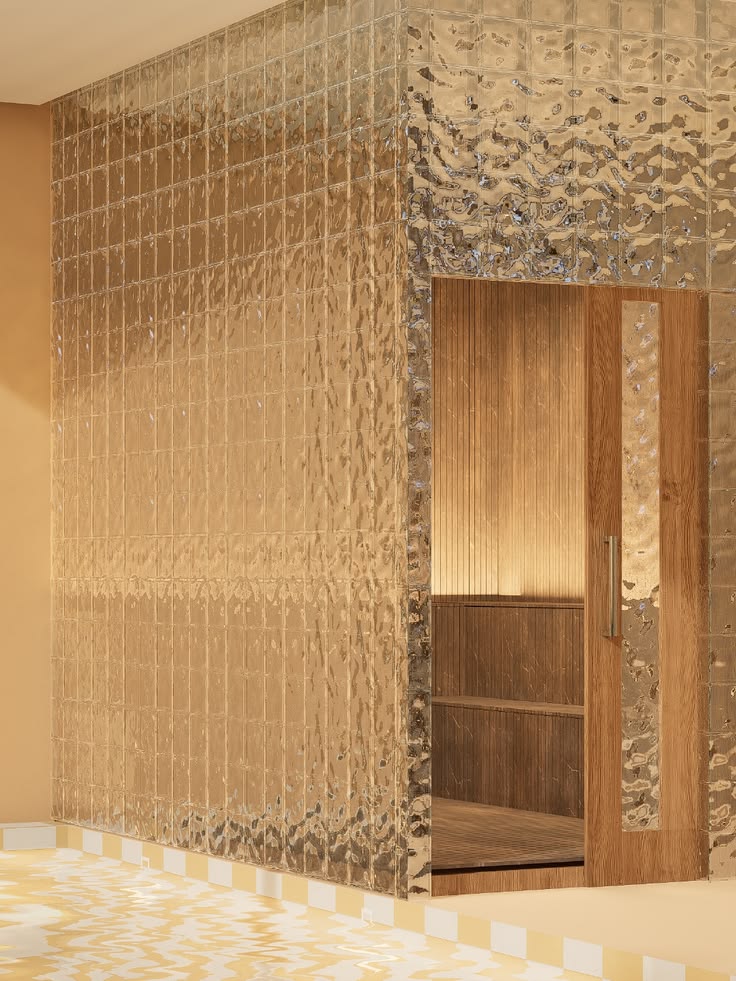

Ripple Finishes Offer Dark or Warm Reflections

The textured references range from darker faces to gold-toned surfaces, allowing a distinct material emphasis without assigning the same colour to every option.

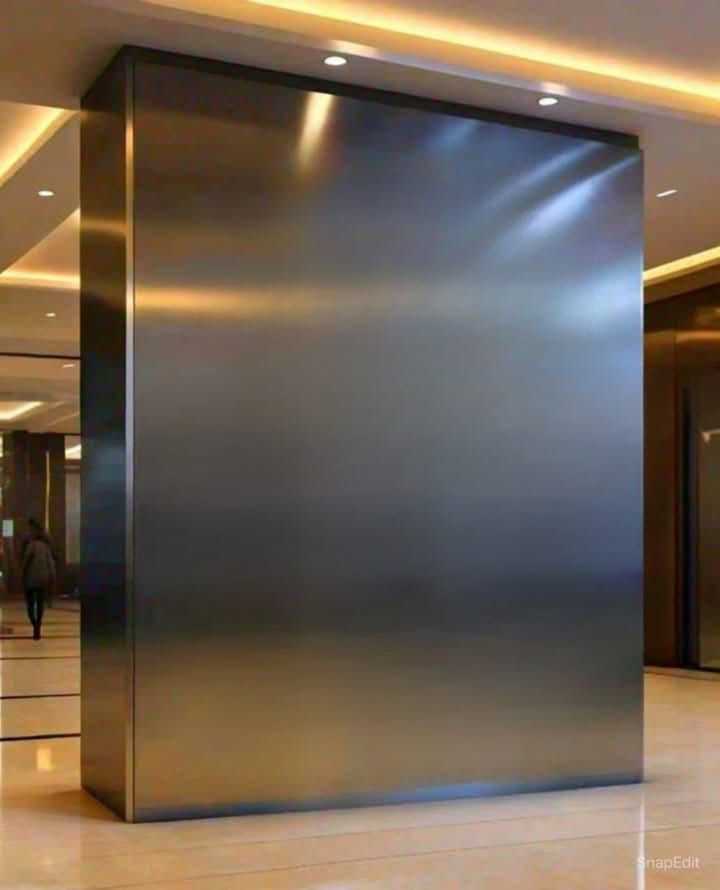

Smooth Faces Balance More Detailed Areas

Plain metal fields provide a different level of visual activity beside textured or perforated zones, helping designers choose where the wall should attract attention.

Patterned Panels Developed Around Architectural Openings

An entrance can be incorporated through planned borders and reveals, keeping the chosen face pattern connected to the wider wall elevation rather than interrupted arbitrarily.

Engineering Solutions for Wall Cladding Systems

Project challenge

The receiving wall is not perfectly even

Xinmao response

Adjustable subframe brackets compensate for substrate unevenness, establishing a precision datum for panel alignment.

Project challenge

Panel joints disrupt the design intent

Xinmao response

Joint layouts are aligned with the architectural elevation, ensuring module breaks enhance rather than disrupt the composition.

Project challenge

Large panels are difficult to transport and handle

Xinmao response

Elevations are modularized into manageable panel sections, with returns and joints seamlessly integrated into the grid.

Project challenge

Reflective panels show inconsistent direction

Xinmao response

Grain orientation and finish tone are mapped across all panels prior to production to guarantee seamless visual continuity.

Project challenge

Doors, services and corners are resolved too late

Xinmao response

Door cutouts, MEP penetrations, and corner details are fully resolved in shop drawings before fabrication begins.

Wall panels specified for real projects

View more

Wall panel questions

Practical answers for architects, contractors and project teams reviewing a custom wall cladding package.

Custom architectural stainless steel screen detail
01Are the same panels suitable for interior walls and exterior facades?

Not by default. Exterior use requires a separate review of weather exposure, supporting frame, movement, drainage, corrosion compatibility and local building requirements. Interior decorative wall details should not be copied into a facade without that review.

02Which metal and finish should I choose for a high-traffic or humid area?

Selection depends on exposure, cleaning products, touch frequency, impact risk and the desired appearance. Stainless steel grade and finish should be agreed through the project specification and a sample. No finish is completely free from fingerprints, scratches or maintenance.

03Can Xinmao provide installation and compliance documentation?

The available package may include approved shop drawings, finish samples, panel references and material information, depending on the agreed scope. Ask for the exact document list at quotation stage. Project engineering approvals, tests and local compliance certificates must be identified separately where required.

04What drawings are needed to review a wall panel project?

Please share elevations, plans, key dimensions, corner details, openings, substrate information and finish references where available.

05How are material and thickness selected?

Selection depends on panel size, location, finish, fabrication method, support system and the approved project specification. Final values are confirmed during detailing.

06Can the panel sizes be customised?

Yes. Module sizes are developed around the elevation, visual grid, transport route, site access and handling requirements.

07Can the finish match nearby metalwork?

Finish references and physical samples can be reviewed with doors, ceilings, trims or other architectural metalwork before production.

08Can the panels be used outside?

Exterior use can be considered, but material, finish, drainage, joints, support and exposure conditions must be reviewed for the actual project location.

09Can selected panels be removable?

Removable panels can be developed where services or inspection require access, subject to the panel geometry and support system.

10Do you provide installation details?

Fixing concepts and coordinated interface drawings can be developed around the agreed scope and confirmed receiving conditions.

11What is needed for an initial quotation?

Provide dimensions, quantities, project location, application, preferred finish, available drawings and any programme requirements. Provisional information should be clearly marked.
