Custom architectural metal ceilings

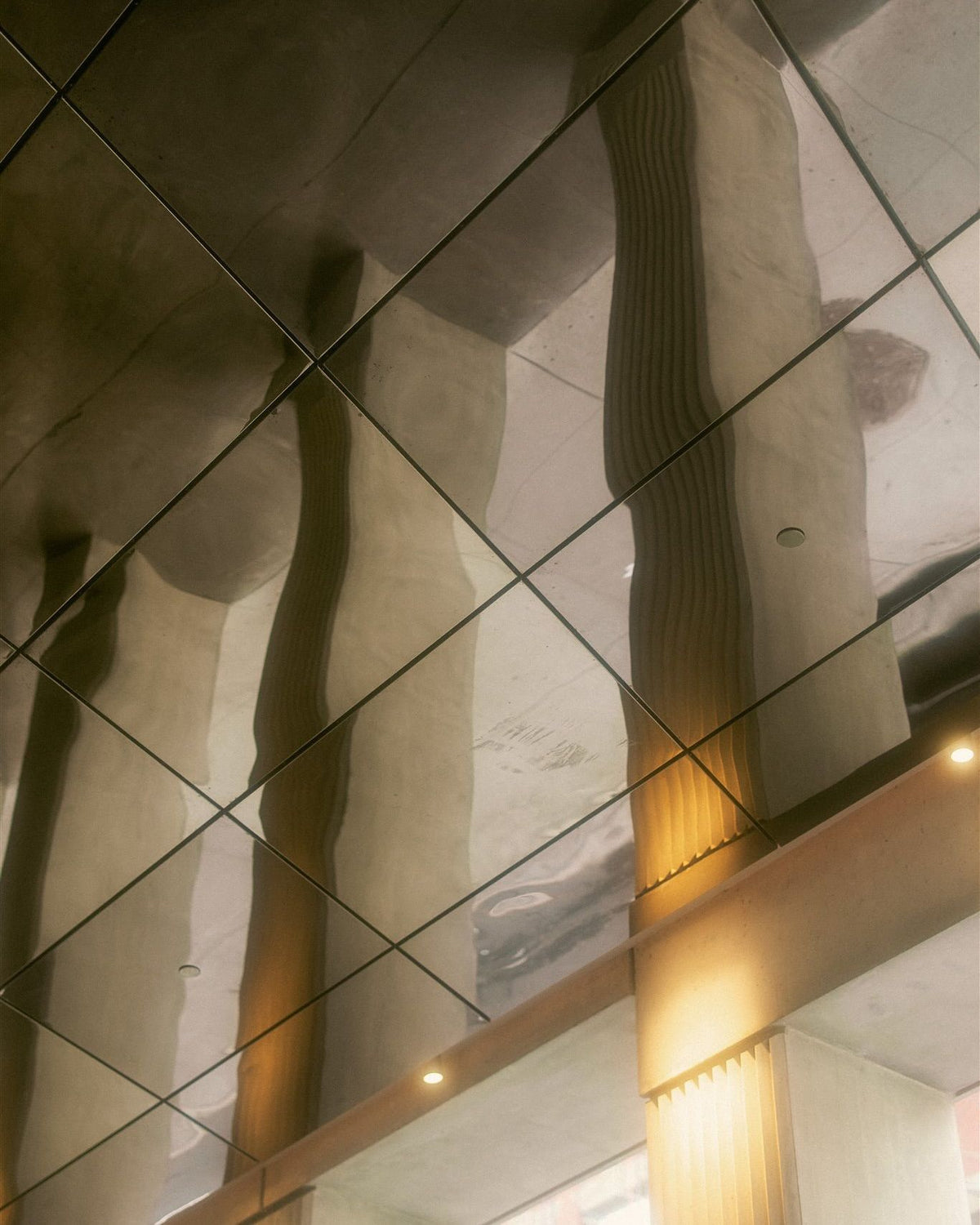

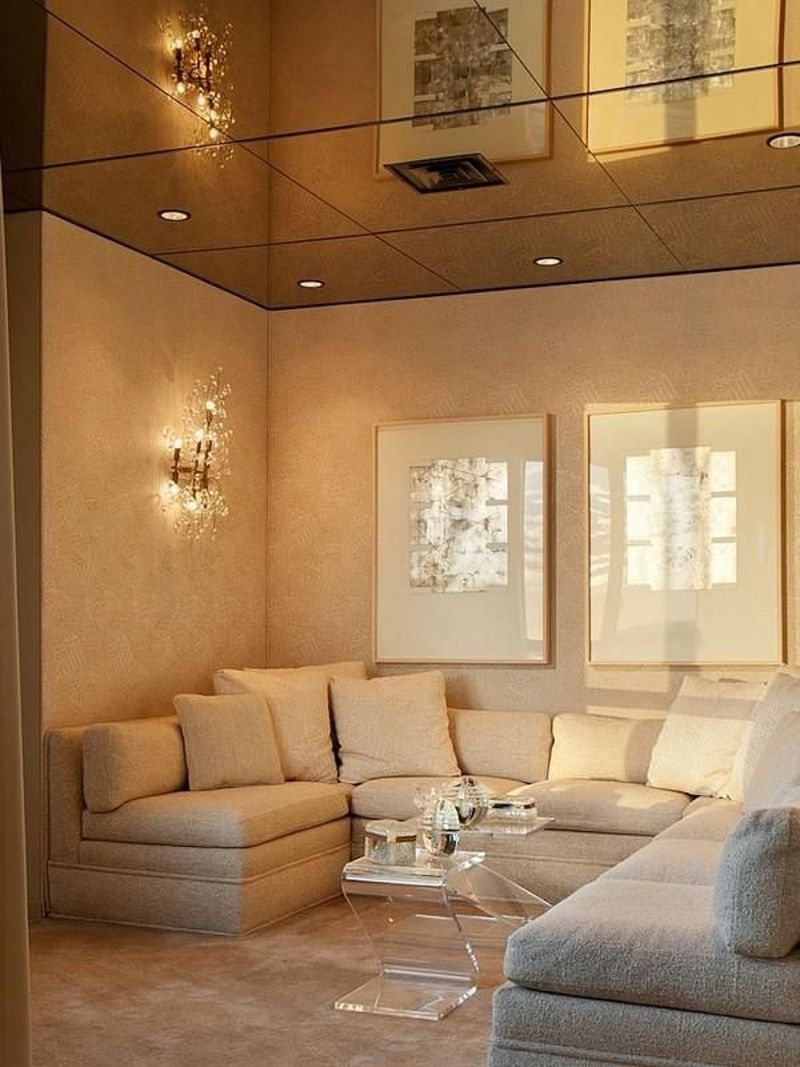

This gallery compares expansive reflective ceiling fields in several interior settings, from a public concourse to a lobby and a warm-toned lounge. They are separate design references rather than photos of a single finish or project. Xinmao Metal can develop a large-format stainless-facing ceiling around the chosen room geometry.
For a broad flat reflection, compare a reinforced single-sheet panel with a stainless-faced honeycomb sandwich panel. The latter requires a declared face sheet, core, adhesive, back sheet, sealed edges and fixing inserts. Quote and engineer the complete panel plus carrier weight, not the visible steel sheet alone. Confirm 304/316 and the mirror grade by approved samples.
The listed price is a placeholder, not a project quotation.
For the large-format mirror honeycomb option, confirm the complete face-to-back build-up and fixing inserts against the approved ceiling module. The panel build-up uses a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. Core specification, bonding system, overall thickness, sealed edges and fixing inserts are selected for the project and recorded in the approved drawings. Hangers and a designed carrier transfer the complete assembly load to the primary structure; lights and other equipment require separately approved support.
No. Factory pressing, backing, carrier coplanarity and fixing torque still matter; approve an installed neighboring-panel mock-up.
No fixed saving applies. Compare complete assemblies at the same span, support and deflection target.
Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.
Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480
PRODUCT DETAILS
Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.
Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.
Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.
Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.
Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.
Material grade and gauge are selected based on module proportions, deflection limits, finish type, and site requirements.
Structural suspension capacity is validated against ceiling dead loads, MEP integration, and anchor fixing points.
Acoustic absorption and fire-rating performance are certified for the complete ceiling assembly build-up.
Finish suitability and production lead times are validated based on module geometry and site conditions.
Grain orientation is coordinated to guarantee uniform reflection and color consistency across adjacent panels.
Sample sign-off accounts for specified ambient lighting and key site viewing angles.
Manufacturing workflows follow panel geometry, structural alloy, and specified visual finish.
Factory-integrated MEP cutouts eliminate risky site cutting and ensure clean, flush-fit installations.
Joint profiles are engineered to support spatial visual rhythm while maintaining necessary access points.
Set-out follows approved Reflected Ceiling Plans (RCP) and verified as-built site measurements.
Access zones are coordinated with MEP service requirements prior to final fabrication release.
Care guidance and maintenance protocols align with the specified surface finish and site environment.
An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).
Visible aesthetic design and concealed MEP coordination are engineered in unison.
Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.
Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.
Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.
Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.
Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.
Foshan Sanlong Bay clubhouse combines stainless steel screens, satin wall cladding, mirror cabinets, a hammered gold ceiling and curved stair railings across reception and...
View project
Fairmont Riyadh pairs 304 stainless steel restaurant screens up to 6 m high with 48 m² of mirror ceiling across eight rooms and 86...
View project
South Hotel Suites uses 304 stainless steel with XM-1604 mirror champagne PVD for its public-area lines and screens, and 316 stainless steel with a...
View projectPractical answers for teams reviewing a custom architectural ceiling package.
Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.
A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.
Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.
It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.
This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.
A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.
Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.
Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.
Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.
The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.
Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.
Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.
The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.
Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
