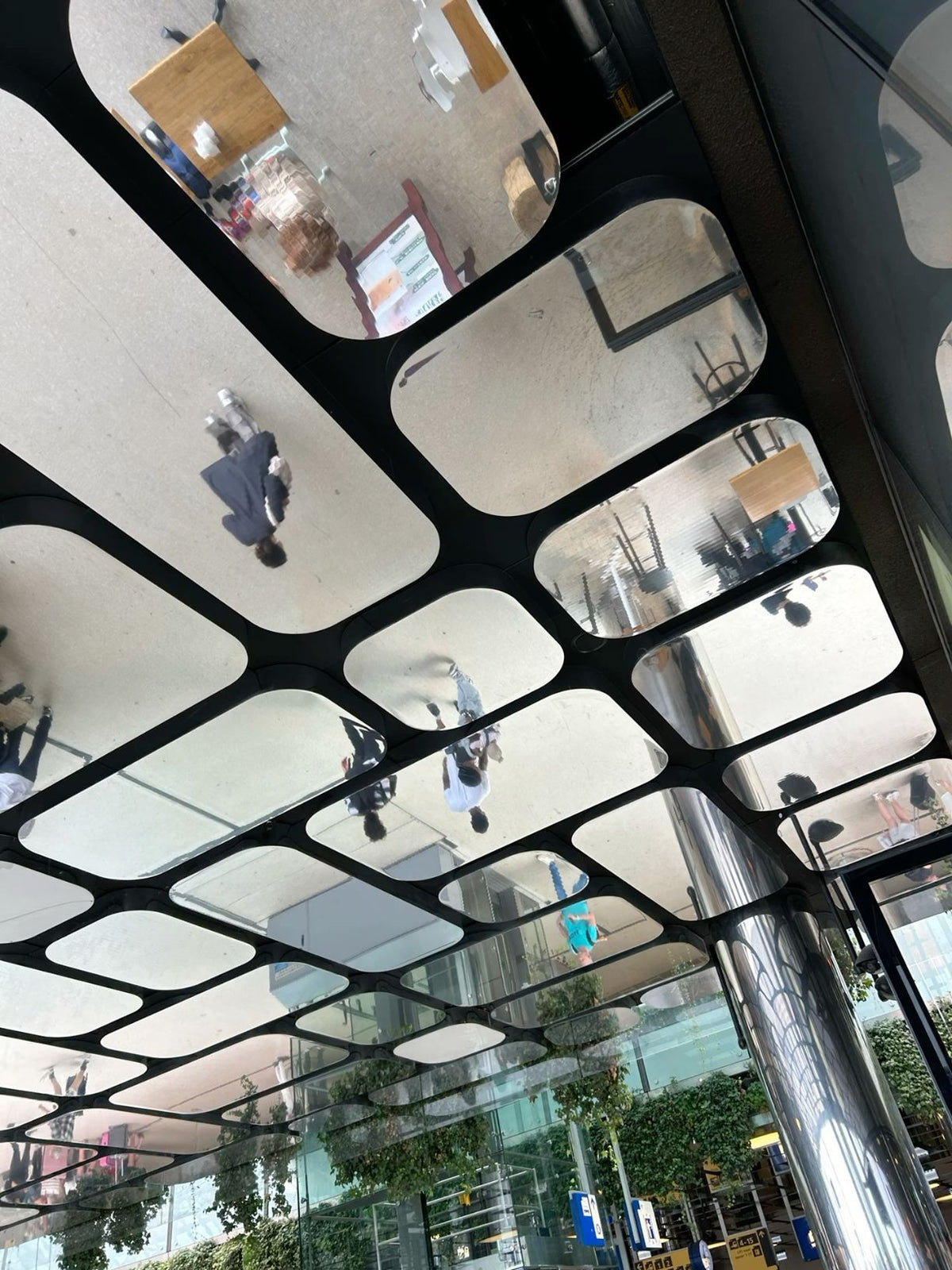

Rounded rectangular mirror ceiling modules above a public passage
1 / 3

Custom architectural metal ceilings

Rounded-Rectangle Mirror Stainless Steel Ceiling Modules

Rounded mirror stainless steel ceiling modules create repeated reflections within dark reveals, with project-specific honeycomb construction, support and access detailing.
Request a quote → Contact us now →
Product description

Rounded-rectangle mirror modules sit within a dark overhead grid, creating repeated reflected views along a public passage. The design differs from a continuous mirror sheet: each module edge and the dark reveal are part of the composition. Xinmao Metal can adapt the pattern to a project ceiling plan.

Confirm module length, corner radius, reveal width, edge reinforcement and removable-panel positions by mock-up. Select the stainless grade and mirror finish by sample; establish panel build-up and complete weight before designing the carrier, hanger and structural anchor. Lighting and signs need separately approved support.

The listed price is a placeholder, not a project quotation.

Stainless Steel Honeycomb Panel Construction

The rounded-rectangle mirror modules can use stainless steel-faced honeycomb construction, with corner returns, edge reinforcement and replacement access approved by mock-up. The panel build-up uses a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. Core specification, bonding system, overall thickness, sealed edges and fixing inserts are selected for the project and recorded in the approved drawings. Hangers and a designed carrier transfer the complete assembly load to the primary structure; lights and other equipment require separately approved support.

Can curved or folded areas use honeycomb construction?

Honeycomb construction is generally not recommended for very small curved areas or tight-radius returns. Where the curved area is large enough and the geometry is suitable, it can be detailed as a separate curved honeycomb panel and joined to the adjacent panels during installation. Curvature, panel division, joint locations and fixing details are confirmed in the approved shop drawings and mock-up; not every fold or rounded edge uses a honeycomb core.

Project FAQs

Can one module be replaced?

Only if the selected fixing and access detail allows removal without disturbing adjacent panels. Test the opening and reinstallation sequence on a sample.

How should mirror modules be cleaned?

Use the finish supplier-approved soft cloth and water or chlorine-free neutral cleaner, then dry. Avoid chlorine-containing cleaners and abrasive pads.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Approve the module plan, rounded corners, reveal widths and edge build-up by drawing and mock-up. Confirm which areas use honeycomb construction and which need separate returns or curved pieces.
  • Submit the complete panel weight and selected build-up before finalising carriers, hangers and structural anchors. Lighting, signage and other equipment require separate approved supports.
  • Verify removable-panel locations, handling access and the opening and reinstallation sequence before closing the ceiling. Do not assume a fixed module can later be removed independently.
  • Protect mirror faces throughout installation and inspect alignment under agreed lighting. Use a soft cloth and finish-approved water or chlorine-free neutral cleaner; avoid abrasive pads and chlorine-containing products. Further guidance: Shop drawing and interface coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

Rounded-Rectangle Mirror Stainless Steel Ceiling Modules

Rounded Mirror Modules Within A Dark Grid

Rounded-rectangle mirror faces alternate with dark overhead reveals, creating a repeated field rather than one continuous mirror sheet. The contrasting edges make each module part of the design. Module length, corner radius and the surrounding grid are coordinated to the ceiling plan and the routes beneath it.

Stainless Steel Faces On Honeycomb Construction

The selected module can use a stainless steel visible face, an aluminum back sheet and a metal honeycomb core. This is a project-specific panel build-up, not a description of every edge return. Core selection, bonding, overall thickness and fixing inserts are recorded in the approved drawings for the complete module.

Rounded Edges Need Their Own Construction Detail

Small curved areas and tight returns are generally unsuitable for simply continuing a honeycomb core around the edge. Larger suitable curves can be developed as separate curved honeycomb pieces and joined during installation. A mock-up should establish the actual corner construction, edge reinforcement and visible junctions for this module.

Panel Layout Around Columns And Building Services

The module rhythm can be developed around columns, lighting positions and other ceiling interfaces. Each interruption needs an agreed border or infill detail rather than an improvised site cut. Lighting, signage and equipment require separately approved supports; the decorative mirror face is not an assumed attachment point.

Access And Finish Reviewed Before Installation

Removable modules are possible only with an appropriate fixing and access detail. Review the opening and replacement sequence on a representative sample alongside the mirror finish and dark reveals. Assembly weight, carrier, hangers and structural anchors must be coordinated before fabrication without inferring acoustic or fire certification from the metal face.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

Rounded Corners Define Each Reflected Field

The rounded-rectangle outline gives every reflected area a recognisable shape. Repeating that outline makes the ceiling a composed modular surface, with corner proportions contributing to the design rather than disappearing into a continuous sheet.

Dark Reveals Frame The Mirror Surface

Dark lines separate the reflective faces and establish a clear overhead grid. The contrast can relate the ceiling to nearby columns and architectural edges, while reveal widths remain part of the coordinated ceiling layout.

A Repeated Rhythm Along Public Passages

Successive mirror modules introduce a repeated visual rhythm along circulation routes. Their reflected views change with movement below, while the planned grid maintains a consistent architectural framework across the passage.

Panel Divisions That Accommodate Architectural Interfaces

A modular layout allows columns and ceiling interruptions to be addressed through defined panel divisions. Coordinated infill and perimeter details help those interfaces remain part of the overall composition instead of appearing as unrelated cuts in the mirror field.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
