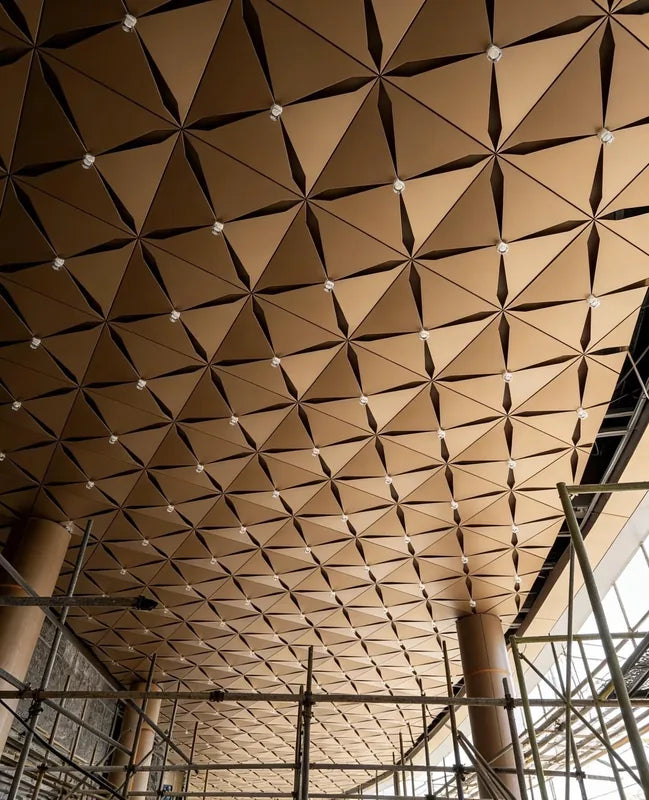

Square aluminum ceiling modules with folded triangular facets above commercial interior
1 / 4

Custom architectural metal ceilings

Triangular Folded Stainless Steel Ceiling for Commercial Interiors

Folded triangular facets within square stainless steel modules create a three-dimensional commercial ceiling grid, with coordinated point lights and project-specific supporting details.
Request a quote → Contact us now →
Product description

Square stainless steel modules, each shaped with folded triangular facets, combine into a repeated three-dimensional ceiling grid. Small light points can be coordinated near the square-module junctions. Unlike the canopy design, this is an indoor commercial ceiling; the stainless steel module edges, supporting frame and light access require project-specific detailing and an approved formed sample.

Project FAQs

What information is needed for a quote?

Send the reflected ceiling plan, square-module geometry, ceiling height, finish sample, quantities and site location. Pricing depends on the folded stainless steel modules, carrier, corner pieces, transport and installation scope; the placeholder website price is not a project quotation.

How are the folded modules fixed?

The carrier and hangers must connect to the main structure through engineered anchors or steel connections. Confirm each module’s back detail, weight and dismantling sequence before choosing hooks or clips.

How are lights and services integrated?

Coordinate point lights, detectors, sprinklers, air outlets and access zones with the triangular grid. Equipment needs independent or designed reinforced support; it cannot simply hang from a decorative folded face.

Ceiling system

Modular panel, linear, baffle, and custom feature ceiling systems tailored to your Reflected Ceiling Plan (RCP), lighting cutouts, and MEP service requirements.

Information for review
  • Approve the square-module setting out, triangular facet geometry and formed finish sample before releasing fabrication drawings.
  • Confirm module weights, back connections, carrier anchors and the safe dismantling sequence for the suspended assembly.
  • Coordinate point lights, detectors, sprinklers and air outlets with module junctions, with independent or designed reinforced equipment supports.
  • Resolve perimeter closures, corner pieces and access zones before completing the main grid; protect folded edges during transport and fitting. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Metal Ceiling Engineering & Specification

Five core engineering parameters for tailoring custom metal ceiling systems to your Reflected Ceiling Plan (RCP), MEP services, and maintenance access.

Reference parameters for preliminary layout. Final suspension build-up, module dimensions, and perimeter details are confirmed against approved shop drawings and site constraints.

xinmaometal-silver-water-ripple-stainless-steel-ceiling-luxury-living-room

System format

Panel, linear baffle, open-cell, perforated feature, or custom architectural ceiling modules.

Format selection is guided by aesthetic intent, acoustic requirements, MEP service integration, and access strategy.

Module direction

Linear runs, regular grids, radial layouts, curved zones, or mixed module arrangements.

Module orientation aligns seamlessly with spatial circulation, lighting layouts, and primary architectural axes.

Ceiling depth

Engineered to suit available plenum depth, primary suspension, MEP service zones, and access clearance.

Finished ceiling levels correspond to coordinated RCP drawings, structural slab heights, and site constraints.

Ceilings developed as part of the interior system

An architectural metal ceiling must seamlessly balance visual intent with MEP services, maintenance access, and structural suspension. Xinmao engineers visible modules and concealed supports directly around your Reflected Ceiling Plan (RCP).

Triangular Folded Stainless Steel Ceiling for Commercial Interiors

Square Modules With Folded Triangular Faces

Each square module contains triangular facets that repeat across the ceiling to form a three-dimensional pattern. The effect comes from the relationship between the folded faces and the square grid, not from separate triangular tiles. Approve the module geometry and formed sample together before production.

Light and Shadow Across the Folded Grid

Warm-toned faces alternate with dark fold lines as the ceiling extends through the commercial interior. Specify the actual stainless steel finish through an agreed sample; the photographed colour is a visual reference, not proof of a particular coating process, alloy grade or finish designation.

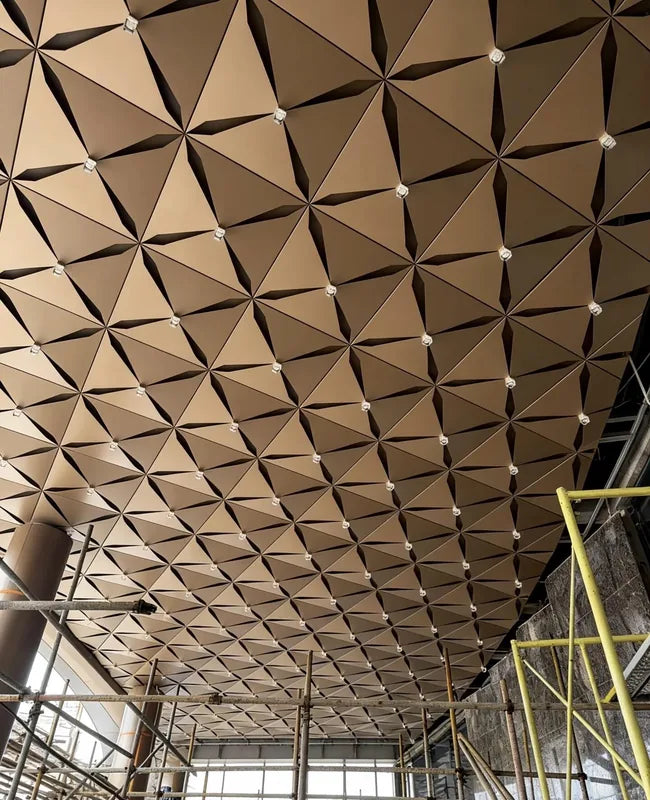

Point Lights at Selected Module Junctions

Small light points sit near intersections in the repeated grid, allowing the lighting layout to follow the module rhythm. Coordinate fixture dimensions, cable access and replacement space with the folded geometry. Each light needs a separately approved or designed reinforced support arrangement rather than an assumed fixing to a facet.

Carrier Details Behind the Sculpted Surface

The module backs, supporting carrier and hangers form an assembly that must be detailed for the project. Confirm module weight, connections and dismantling sequence before selecting clips or hooks. The decorative folds define the visible face; they do not establish the capacity of the suspended ceiling.

Perimeter Pieces That Complete the Repeated Pattern

The long installation views emphasize how the grid meets the edges of the room. Develop corner pieces and perimeter closures from the approved setting out, avoiding unresolved partial modules at glazing or walls. Resolve the finished edge and any adjacent service lane alongside the main repeated field.

Commercial Interior Scope Defined Before Quotation

A useful enquiry includes the reflected ceiling plan, module geometry, ceiling height, finish reference, quantities and site location. Agree the carrier, corner pieces, transport and installation responsibilities with the folded panel package. This indoor ceiling reference does not establish suitability for an exposed external canopy.

A ceiling that works above and below the surface

Visible aesthetic design and concealed MEP coordination are engineered in unison.

Triangular Relief Within a Square Rhythm

The facets create depth while the square module boundaries retain an orderly grid, combining a sculpted appearance with a repeatable visual unit.

Warm Faces Contrasted With Dark Fold Lines

The photographed finish separates illuminated faces from shadowed creases. A physical sample establishes the intended colour and reflection for the project's lighting conditions.

Lighting Aligned With the Module Intersections

Point lights work with the repeated junctions, giving designers a way to coordinate the lighting rhythm without placing unrelated openings across the facets.

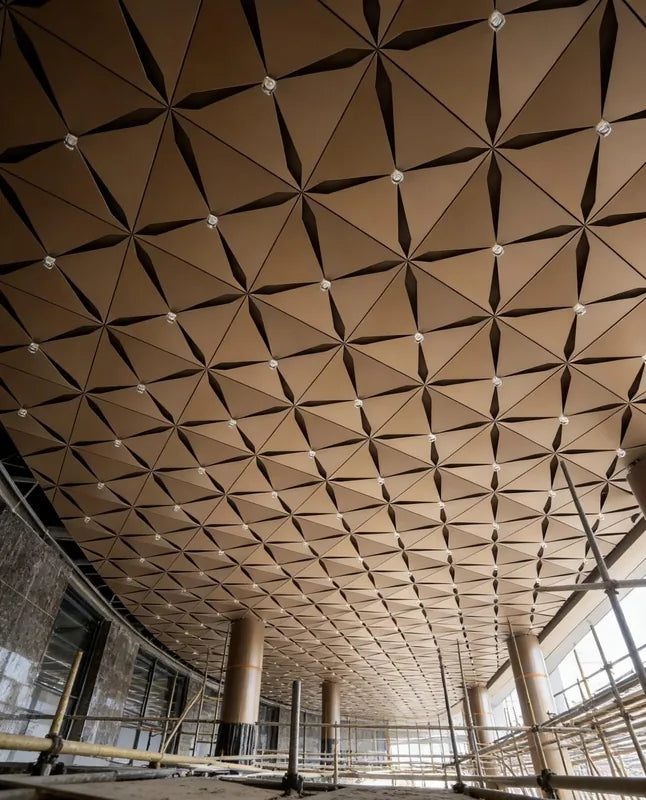

A Long View Through the Commercial Space

The repeated grid reinforces the length of the interior, making perimeter setting out and the alignment of successive modules important to the finished composition.

What a coordinated metal ceiling solves

Project challenge

MEP cutouts interrupt ceiling pattern

Xinmao response

Factory-integrated cutouts ensure lighting, HVAC, and fire protection merge seamlessly into the module grid.

Project challenge

Maintenance access is unclear

Xinmao response

Demountable modules and concealed access hatches are mapped directly to underlying MEP service locations.

Project challenge

Large ceiling elements are difficult to handle

Xinmao response

Elevations are modularized into precision panel units, balancing visual scale with transport routes and site handling.

Project challenge

Reflective panels appear inconsistent

Xinmao response

Grain orientation, sheen control, and panel mapping are verified before production to guarantee overhead visual continuity.

Project challenge

Wall junctions and level changes look unresolved

Xinmao response

Perimeter shadow gaps, bulkheads, and level transitions are fully resolved in shop drawings prior to fabrication.

Metal ceilings in architectural projects

View more

Metal ceiling questions

Practical answers for teams reviewing a custom architectural ceiling package.

Custom architectural stainless steel screen detail
01Who designs the suspension and fixings for a custom metal ceiling?

Responsibilities should be defined in the project scope. Xinmao can develop decorative panels and visible interfaces from approved information; the responsible engineer and ceiling system supplier must confirm loads, hangers, anchors, fire requirements and local approvals for the complete installation.

02What should a ceiling mock-up include?

A useful mock-up includes the actual finish, a typical joint, a curved or folded transition if used, a service opening, backing, support and one removal sequence. This allows the team to assess the pattern, flatness, light effect and access together.

03How are perforated panels cleaned and maintained?

Cleaning depends on the approved finish, perforation, backing and site environment. Agree a finish-specific care method and access route with the supplier and facilities team, and test the method on a sample before applying it to the installed ceiling.

04When would a honeycomb-core ceiling panel be considered instead of a solid metal panel?

It may be considered when a large, relatively flat panel and lower assembly weight are design priorities. Suitability depends on the complete face/core construction, edge closure, suspension, fire requirements and verified project data. Compare approved assemblies, not material labels alone.

05Can Xinmao supply honeycomb-core ceiling panels?

This requires product-level confirmation. Xinmao's public case material currently documents honeycomb panels for walls, columns, elevator areas and facades, while its ceiling collection shows stainless steel feature and perforated panels.

06Can a mashrabiya-inspired pattern be used on a metal ceiling?

A geometric openwork pattern may be adapted for a decorative ceiling if the panel, support, lighting, access and finish are developed for that overhead location. Describe it as mashrabiya-inspired metalwork rather than a traditional mashrabiya.

07What ceiling formats can be developed?

Projects may use panels, strips, baffles, open-cell layouts, perforated features or custom-formed elements, subject to the design and approved build-up.

08What information is needed for design review?

Please provide the reflected ceiling plan, levels, room dimensions, service layouts, access requirements, finish references and available substrate information.

09Can lighting and service openings be integrated?

Yes. Confirmed locations can be coordinated into modules, trims or removable areas before production.

10Can the ceiling be coordinated with an acoustic system?

The metal finish layer can be coordinated with a separately specified backing assembly. Required acoustic performance must be confirmed for the complete approved system.

11Can panels be removed for maintenance?

Removable modules or access panels can be developed where services require access, subject to the selected ceiling system.

12How is the ceiling finish approved?

Physical samples are reviewed for colour, texture, sheen and direction. A mock-up may be useful where lighting and reflection are critical.

13How is the suspension system selected?

The support concept follows the module, ceiling level, receiving structure, access and coordinated project requirements.

14What is required for an initial quotation?

Share the ceiling area, module concept, finish, project location, available drawings, quantities and programme information.
