Custom stainless steel elevator interiors

Dark Brushed Stainless Steel Elevator Lobby Wall Panels

Dark brushed stainless steel lobby panels coordinate flush wall fields, recessed portals and fluted accents, with project-specific joints, backing and service access.
Request a quote → Contact us now →
Product description

Dark brushed stainless steel panels form a decorative lift-lobby wall finish in charcoal and bronze tones. The references show flush joints, vertical fluting, recessed portals and narrow light reveals in hotel and office settings. The metal package can cover stationary wall panels, jamb returns and header cladding; it does not include the lift door assembly or supporting frame.

Choose the grain direction, panel width, joint rhythm and reflectivity against the surrounding stone, timber-look materials and lighting. Send lobby elevations and opening dimensions to coordinate call-panel positions, wall backing, inspection access and the boundary to the original lift frame. Finish samples and approved shop drawings define the final decorative scope.

Project Questions

How can large lobby panels be kept visually flat?

Review panel subdivision, reinforcement or composite backing against the support layout. Trial-install a full-size sample and correct an uneven substrate before fixing the panels.

Can lobby wall panels be removable?

Use a panel system designed for removal, with appropriate clips or mounting details. Identify service-access modules and confirm the opening path and replacement procedure.

Interior package scope

Cabin wall panels, doors, jambs, ceilings, skirting, trims and selected feature elements can be coordinated around approved elevator supplier information.

Information for review
  • Verify wall levels and the original lift-frame position before setting panel joints, recess depth and the selected brushed-grain direction.
  • Agree backing or reinforcement and correct uneven substrates using a representative full-size trial installation as the visual reference.
  • Detail call-panel openings and any removable service modules, confirming their release path and replacement procedure before adjacent finishes close in.
  • Coordinate light-channel access and keep the stationary cladding clear of the lift contractor's equipment zones; do not modify door mechanisms or the original supporting frame. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Elevator interior engineering details

Five coordinated areas used to develop the decorative cabin package around the approved elevator system.

All dimensions, loads, clearances and technical interfaces must be confirmed with the elevator supplier and responsible project parties.

Metal Yanda Ludaopei Hospital Repeated Curved Columns

Package elements

Cabin wall panels, feature walls, doors, jambs, ceilings, skirting, trims and selected handrail interfaces.

The exact scope is confirmed with the elevator contractor and project team.

Panel composition

Flat, folded, framed, patterned, mirror-accented or mixed-material decorative panels.

Panel arrangement responds to cabin proportions, control locations, maintenance access and design intent.

Design coordination

Matched or coordinated finishes with lobby doors, portals, wall panels and surrounding trims.

Finish direction should be reviewed across both cabin and landing interfaces.

Elevator interiors developed as a coordinated package

Elevator interiors combine close-range architectural finishes with strict cabin interfaces. Xinmao develops the decorative panels around the confirmed supplier information and the wider interior design language.

Dark Brushed Stainless Steel Elevator Lobby Wall Panels

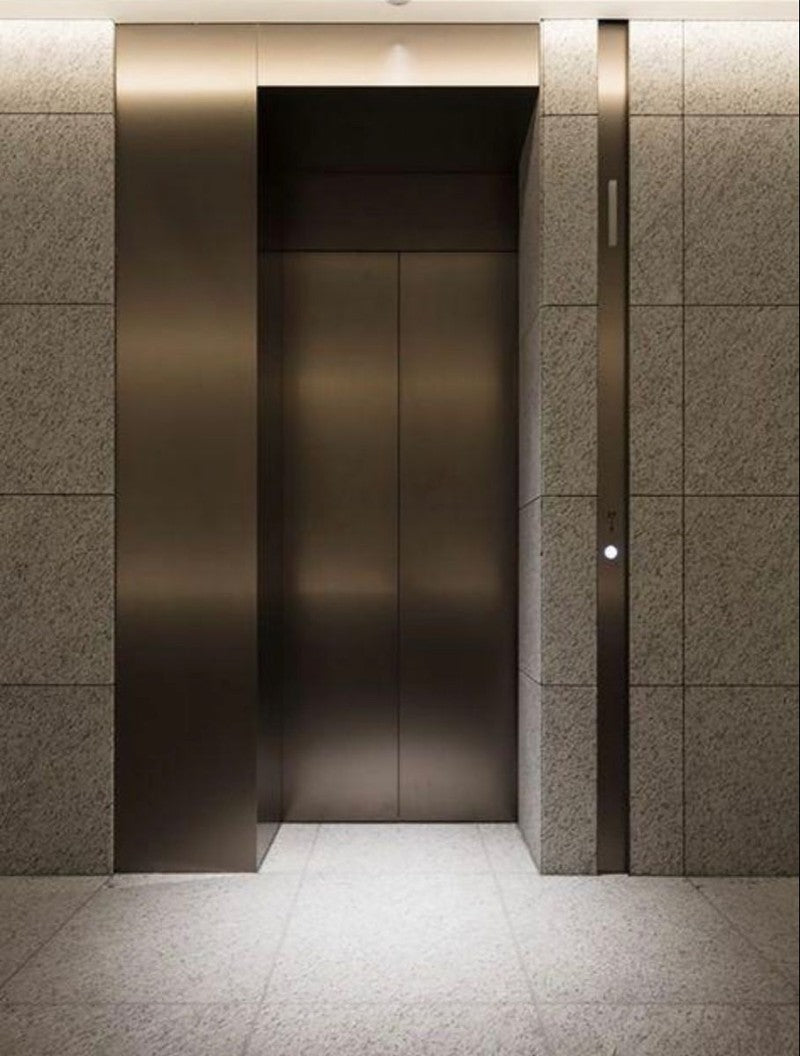

Dark Wall Fields Around Recessed Lift Entrances

Charcoal and bronze-toned stainless cladding gives lift entrances a defined setting within the wider lobby wall. The package may include stationary panels, jamb returns and header facing. It remains separate from the original lift doors and supporting frame, even where their colours are visually coordinated.

Flush Panels and Fluted Accent Directions

The references compare broad planar surfaces with vertically fluted framing and more compact recessed portals. Choose the relief and panel rhythm for the actual wall rather than assuming one construction across the series. A visual flute pattern does not establish how the backing or concealed supports are formed.

Grain and Reflectivity Beside Adjacent Materials

Review the dark brushed finish beside the proposed stone or timber-look surfaces and linear lighting. Grain direction, panel width and sheen change how the wall reads along a corridor and close to an entrance. Set the selected appearance through a representative sample before applying it to the full elevation.

Large Panels Reviewed With Their Supporting Substrate

Visible flatness depends on the panel divisions, proposed reinforcement or backing and the condition of the wall support. Trial-install a representative full-size panel to assess those relationships. Correct substrate irregularities before fitting the finish rather than relying on the decorative face to conceal an uneven base.

Light Reveals Kept Separate From Wall Fixings

Narrow light lines can define a recessed entrance or the meeting point of adjacent wall fields. Coordinate channels, drivers and access with the panel joints. The lighting arrangement and electrical supply require their own agreed details; their appearance in a lobby reference does not define the metal mounting system.

Removable Wall Modules for Planned Inspection

Where a service zone needs access, develop a panel system with suitable removable mounting details and a confirmed opening path. Identify those modules on the wall elevation and agree the replacement procedure. Flush-looking joints do not automatically mean the panels can be removed independently after installation.

Elevator details that protect the design intent

The finish package is developed around the real cabin, not applied as an unrelated decorative layer.

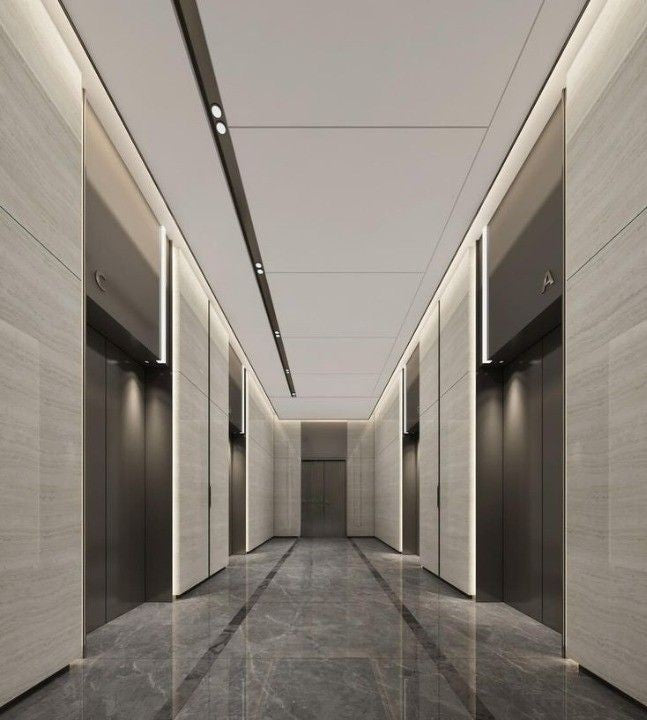

A Restrained Dark Field at the Lift Bank

The dark finish gives the entrance zone a quieter architectural background, with the wall divisions and recessed portals carrying the main visual order.

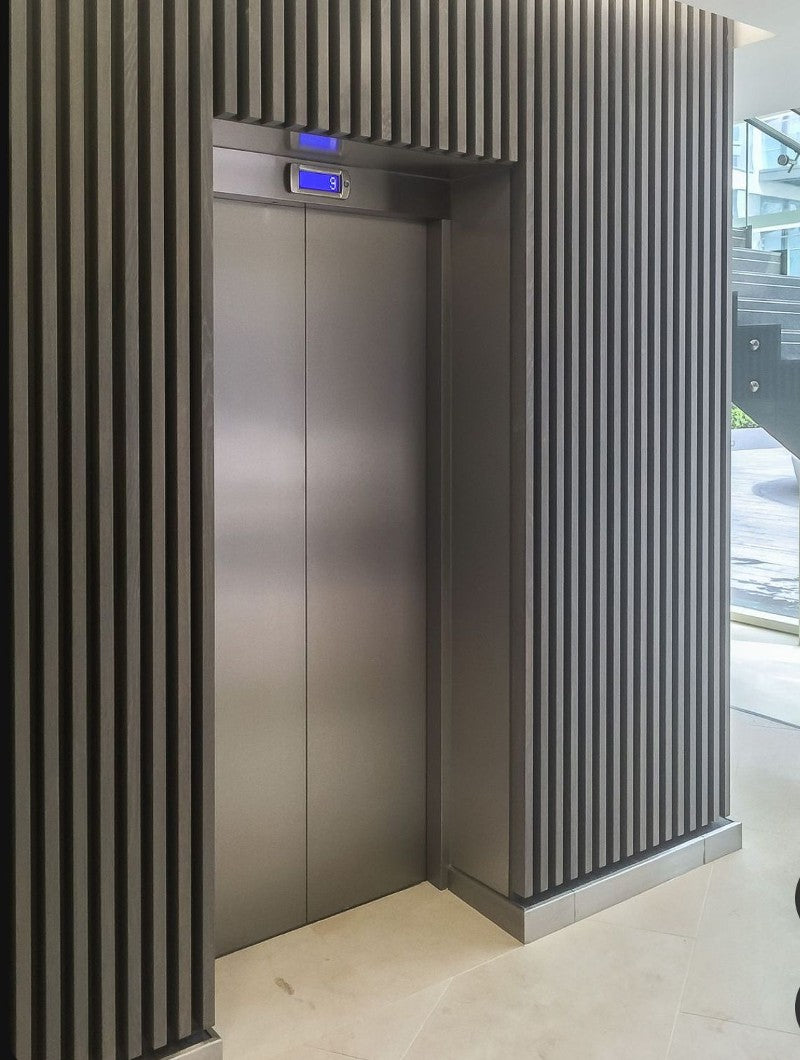

Vertical Fluting as an Alternative Accent

The fluted reference offers a more strongly directional surround than the flat wall schemes. Its rhythm is selected as a design option, not assumed to appear on every panel.

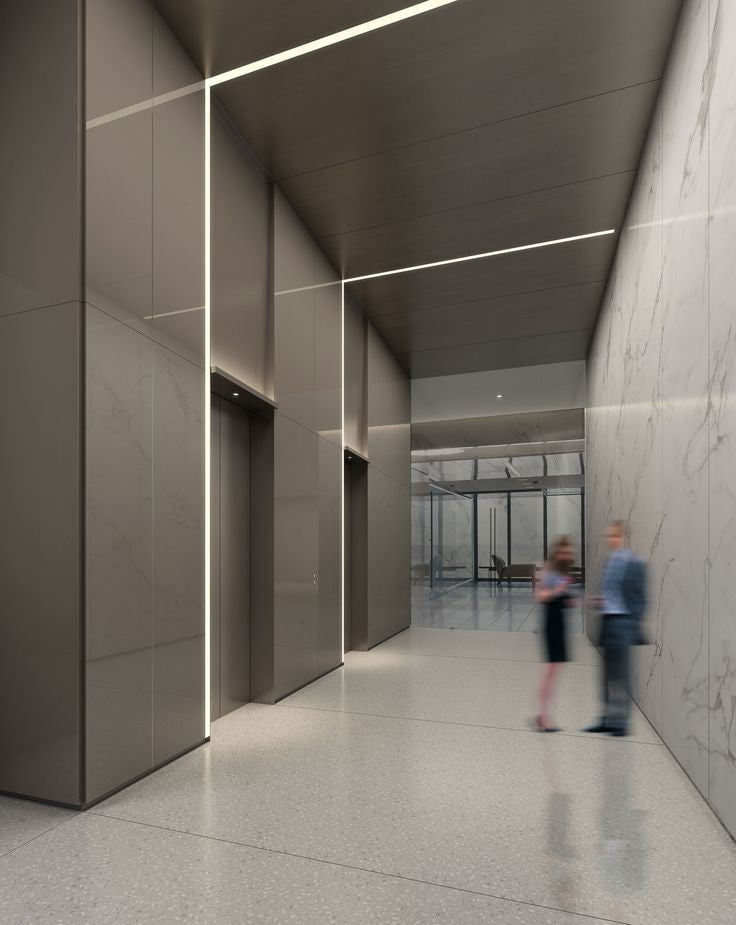

Linear Light Against Dark Metal Surfaces

Slim lighting reveals outline selected boundaries, providing contrast with the brushed face while leaving the main wall field comparatively restrained.

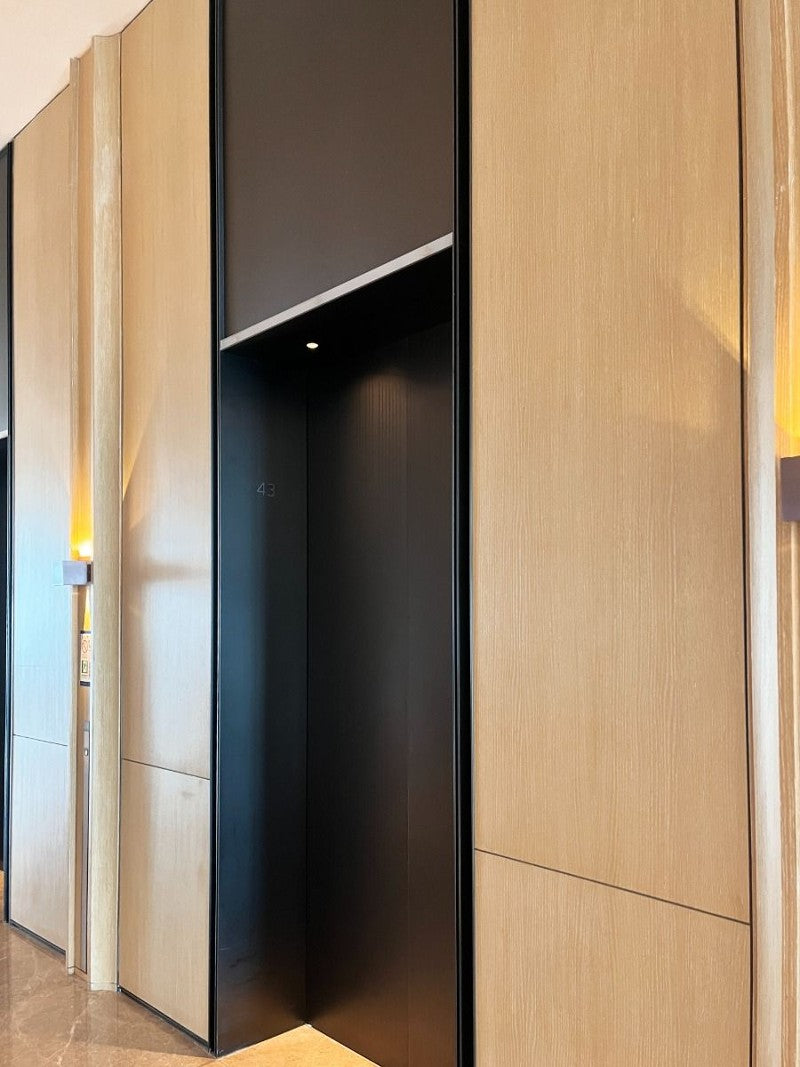

Dark Portals Within Lighter Material Schemes

Stone and wood-like neighboring surfaces show how a dark entrance can sit within a lighter lobby palette without extending one metal finish across the entire wall.

What a coordinated elevator interior solves

Project challenge

Cabin and landing finishes do not match

Xinmao response

Finish references can be reviewed across cabin panels, doors, jambs and nearby architectural metalwork.

Project challenge

Controls and ventilation interrupt the panel design

Xinmao response

Confirmed supplier interfaces are integrated into panel divisions and edge details before fabrication.

Project challenge

Decorative additions exceed available allowances

Xinmao response

Panel construction is developed within limits confirmed by the elevator supplier and responsible project team.

Project challenge

High-contact surfaces quickly show marks

Xinmao response

Finish direction and practical cleaning requirements are considered alongside the desired appearance.

Project challenge

Maintenance access is blocked by decorative panels

Xinmao response

Selected panels or trims can be coordinated as removable elements where the approved system requires access.

Elevator finishes in completed interiors

View more

Elevator interior questions

Practical answers for design and construction teams reviewing a custom elevator finish package.

Custom architectural stainless steel screen detail
01Is an elevator entrance header a decorative cover or part of the door mechanism?

Our entrance header refers to decorative metal cladding above the landing door. It is specified separately from the elevator door operator, structural header and rated entrance assembly. Fixings, clearances, access and the junction with the door jambs are reviewed against approved elevator and architectural drawings.

02How do you coordinate the header and jamb cladding with the lobby wall?

We review the entrance opening, visible returns, wall build-up, adjacent finishes and panel joints together. Final sizes should follow confirmed site dimensions and the elevator supplier's entrance drawings. The project team should agree who prepares the substrate and who completes any required fire stopping.

03Can cab panels be removed for maintenance?

Where the approved elevator system requires access, selected panels or trims can be detailed for removal. Access locations and removal clearances should be marked on the supplier drawings before the decorative layout is approved.

04Can the cab ceiling include lighting?

The decorative ceiling can be coordinated around an approved lighting layout and required access. Light fixtures, wiring and emergency lighting should be specified and approved by the responsible elevator and electrical teams unless explicitly included in the agreed scope.

05Which stainless steel finish is best for a high-traffic elevator?

The choice depends on the desired appearance, touch frequency, cleaning routine and lighting. Brushed, textured, mirror and selected coloured finishes can be reviewed through physical samples. A sample should be assessed in representative lighting, especially around doors and controls where marks are more visible.

06How should stainless steel elevator panels and doors be cleaned?

Use the care instructions approved for the selected finish or coating. Before using any cleaner across the whole surface, test it on a discreet area and avoid methods that could scratch or alter the finish. Request a finish-specific care sheet with the approved sample.

07Can you match the finish across cab walls, doors and elevator lobby cladding?

We can review these visible elements as one finish family using approved samples and a coordinated panel layout. The final match depends on substrate, finish process, batch, viewing angle and lighting; samples and acceptance criteria should be agreed before production.

08Which elevator interior elements can be included?

The agreed scope may include cabin wall panels, feature walls, ceilings, doors, jambs, portals, skirting and selected trims, subject to supplier coordination.

09Do you coordinate with the elevator supplier?

Yes. Approved supplier drawings, dimensions, allowances and technical interfaces are essential inputs for the decorative package.

10Can an existing elevator interior be refurbished?

Refurbishment can be reviewed after the existing cabin, substrate, clearances, condition and supplier requirements are confirmed.

11What finish options are available?

Brushed, mirror, textured, etched, embossed and selected PVD-coloured stainless steel finishes may be considered, subject to sample approval and product suitability.

12How are weight and clearance constraints handled?

All relevant limits must be supplied and confirmed by the elevator provider or responsible consultant. Panel construction is then developed within those confirmed constraints.

13Can a sample or mock-up be prepared?

Physical finish samples and representative panel details can be discussed once the design direction and scope are defined.

14Who installs the decorative package?

Installation responsibility depends on the project scope. The sequence and interfaces should be agreed with the elevator contractor and site team before production.

15What information is needed for a quotation?

Provide supplier drawings, cabin dimensions, quantities, scope elements, finish references, project location, programme and any confirmed technical constraints.
