Custom stainless steel elevator interiors

Custom Stainless Steel Elevator Door Skins & Portal Cladding

Custom stainless steel door skins and fixed portal pieces are specified separately, with moving components reviewed for added weight, travel and lift-equipment compatibility.
Request a quote → Contact us now →
Product description

Custom stainless steel elevator door skins and fixed portal cladding are two separate decorative supply scopes. The gallery illustrates residential entrance finish directions in satin silver, warm brown, antique bronze and gold-toned surfaces. These are design references; the quotation must identify the moving door-facing areas separately from the stationary jambs, headers and returns.

For fixed portal cladding, Xinmao Metal develops the jamb depth, head profile, edge returns, visible joints and finish sample from approved opening and frame dimensions. The decorative covers do not replace the original structural frame. Adjacent lobby wall panels belong to a separate wall-cladding scope and should be marked on the elevation.

Door-facing skins attached to moving equipment require separate review by the elevator supplier or responsible elevator contractor. Agree added weight, fixing method, door travel, clearances, operating interfaces and service access before fabrication. The decorative supply does not include the complete operating door assembly, door operator, controls or safety devices; any required entrance performance documentation must correspond to the approved assembly.

Provide the elevator drawings, door-leaf and opening dimensions, floor quantities, marked supply areas, finish reference and project programme. Material grade and any PVD finish are selected in the approved specification and checked against the physical sample. Quote door skins, fixed portal pieces, wall panels and installation responsibilities separately.

Project Questions

Are elevator door surrounds the same as elevator door panels?

No. Surrounds describe the fixed entrance perimeter; door panels are the moving leaves or their visible cladding. Keep them separate in drawings and quotations.

Does a stainless steel surround provide a fire-rated elevator entrance?

The decorative surround’s material does not establish the rating of the complete entrance assembly. Use the elevator provider’s applicable tested and approved system documentation.

Interior package scope

Cabin wall panels, doors, jambs, ceilings, skirting, trims and selected feature elements can be coordinated around approved elevator supplier information.

Information for review
  • Schedule moving skins, fixed portal pieces and adjoining wall panels as separate items using confirmed leaf, frame and opening dimensions.
  • Obtain the elevator contractor's acceptance of the complete skin mass, fixing, door travel, clearances and access before fabrication or attachment to moving equipment.
  • Approve grade, texture and any colour process with the formed details, preserving edge protection through the agreed fabrication and installation sequence.
  • Do not modify operators, controls, safety devices or the structural frame through decorative work; confirm applicable assembly documentation and retain maintenance access. Further guidance: Architectural metal systems and project coordination
Delivery & Order Information

Lead time ：10–15 days after drawing confirmation (standard screen / ceiling / wall panel)
Minimum order ： No fixed MOQ; feasibility assessed per project
Standards ：Fabricated to ASTM A240 / EN 10088 material spec; finish per ASTM A480

PRODUCT DETAILS

Elevator interior engineering details

Five coordinated areas used to develop the decorative cabin package around the approved elevator system.

All dimensions, loads, clearances and technical interfaces must be confirmed with the elevator supplier and responsible project parties.

Metal Yanda Ludaopei Hospital Repeated Curved Columns

Package elements

Cabin wall panels, feature walls, doors, jambs, ceilings, skirting, trims and selected handrail interfaces.

The exact scope is confirmed with the elevator contractor and project team.

Panel composition

Flat, folded, framed, patterned, mirror-accented or mixed-material decorative panels.

Panel arrangement responds to cabin proportions, control locations, maintenance access and design intent.

Design coordination

Matched or coordinated finishes with lobby doors, portals, wall panels and surrounding trims.

Finish direction should be reviewed across both cabin and landing interfaces.

Elevator interiors developed as a coordinated package

Elevator interiors combine close-range architectural finishes with strict cabin interfaces. Xinmao develops the decorative panels around the confirmed supplier information and the wider interior design language.

Custom Stainless Steel Elevator Door Skins & Portal Cladding

Two Decorative Scopes Within One Entrance Brief

Moving door-facing skins and stationary portal cladding need separate component schedules, even when the finish is coordinated. Identify door leaves, jamb covers, headers and returns on the entrance elevation. Xinmao Metal fabricates the approved decorative components; the operating door assembly, controls and safety devices remain outside this supply.

Door Leaf Dimensions Separate From Opening Dimensions

Measure the moving leaf surfaces independently of the finished opening and fixed frame. The skin layout must follow the lift supplier's accepted interfaces, not dimensions inferred from an entrance photograph. Record joint positions and visible edges with the intended fixing arrangement before preparing the fabrication package.

What Must Be Approved Before Adding Skins?

The responsible elevator supplier or contractor reviews added mass, fixing method, door travel, clearances and service access. Submit the complete facing construction, including any backing and attachments, for that review. There is no universal face thickness or allowable weight that can be selected from the decorative finish alone.

Fixed Portal Sections Developed Around the Original Frame

Jamb depth, header profile and folded returns are developed from confirmed frame and opening dimensions. These stationary covers do not replace the structural entrance frame. The adjacent lobby wall belongs to its own cladding schedule, keeping portal and wider wall quantities distinct when drawings and quotations are prepared.

Finish Samples With a Planned Fabrication Route

Select material grade and any PVD treatment through the approved specification and physical sample. Establish the base texture, visible cut edges and formed returns alongside the processing sequence. If a finished sheet is used, agree how subsequent operations and edge protection will be handled rather than assuming site modification leaves the colour unchanged.

Can Decorative Skins Replace the Door Mechanism?

No. A decorative skin changes the visible facing, not the operator, controls or other functional door equipment. Any required entrance performance documentation must apply to the approved complete assembly. The material name of a skin or surround alone does not establish the rating or suitability of the operating entrance.

Patterns Belong on an Approved Component Map

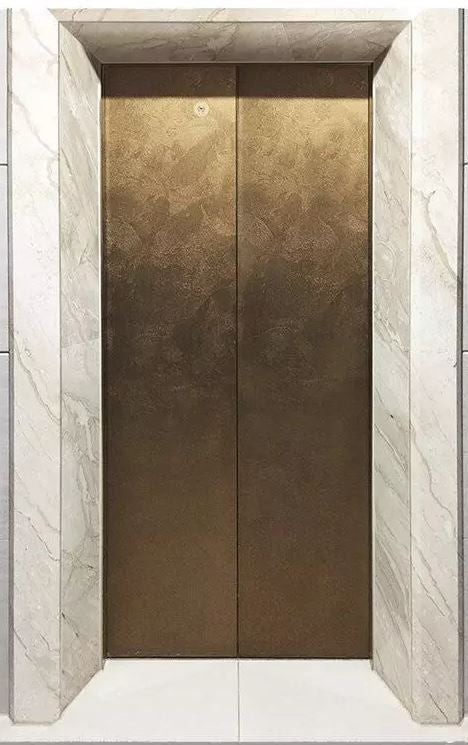

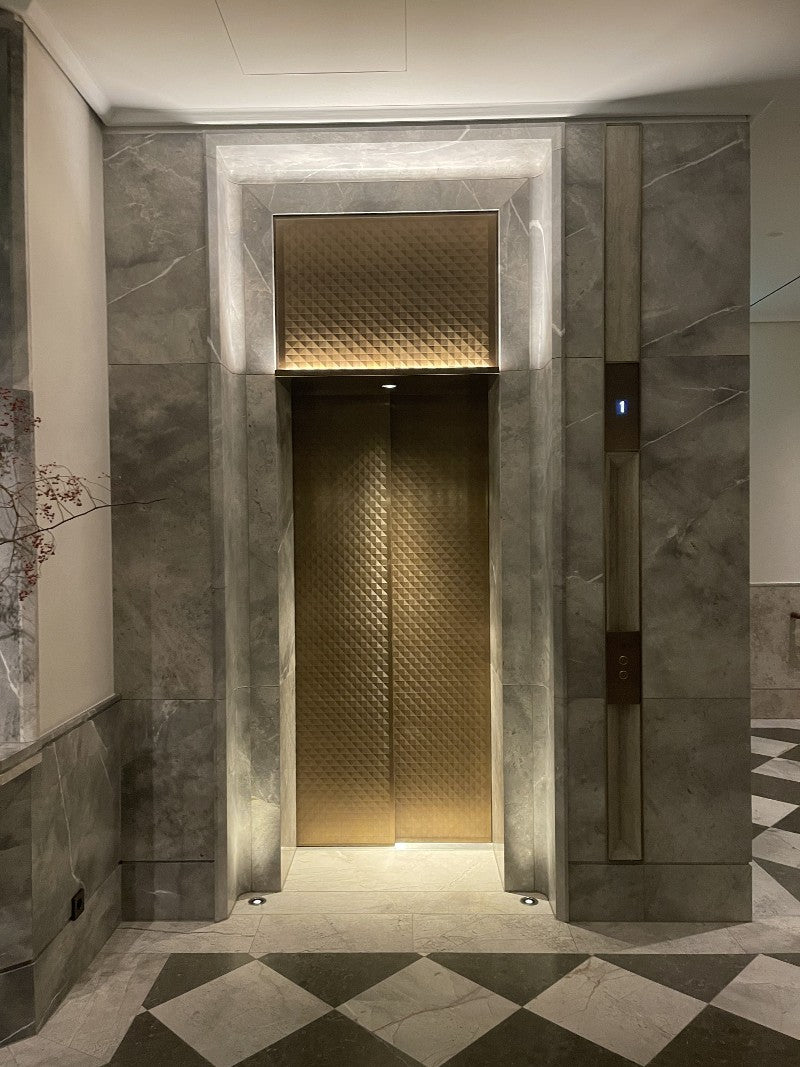

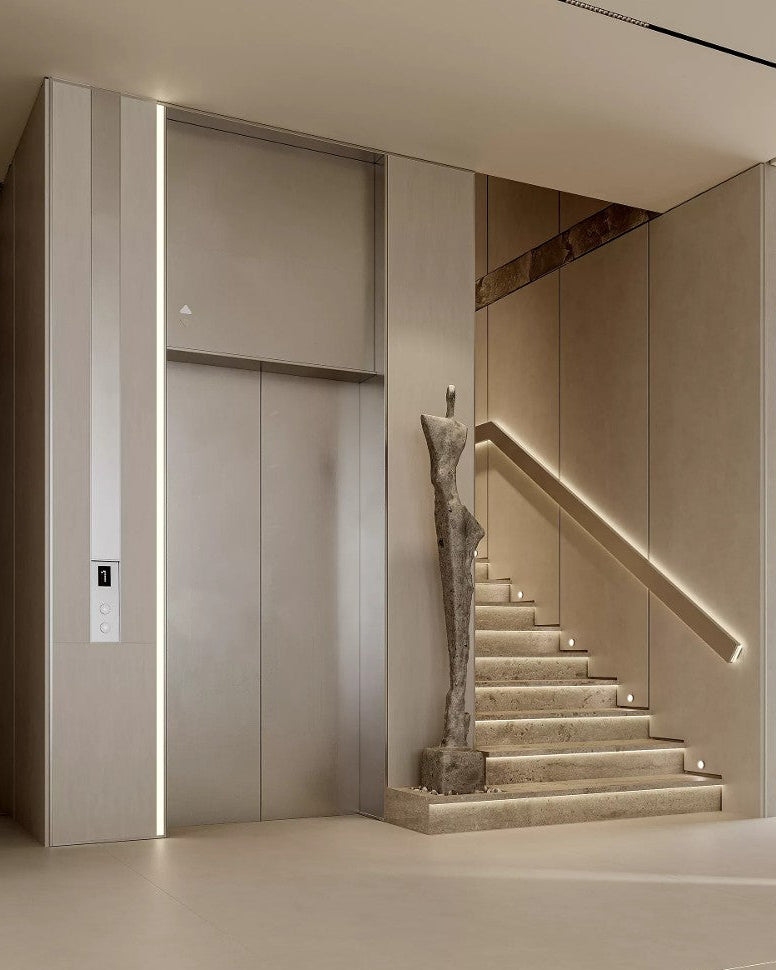

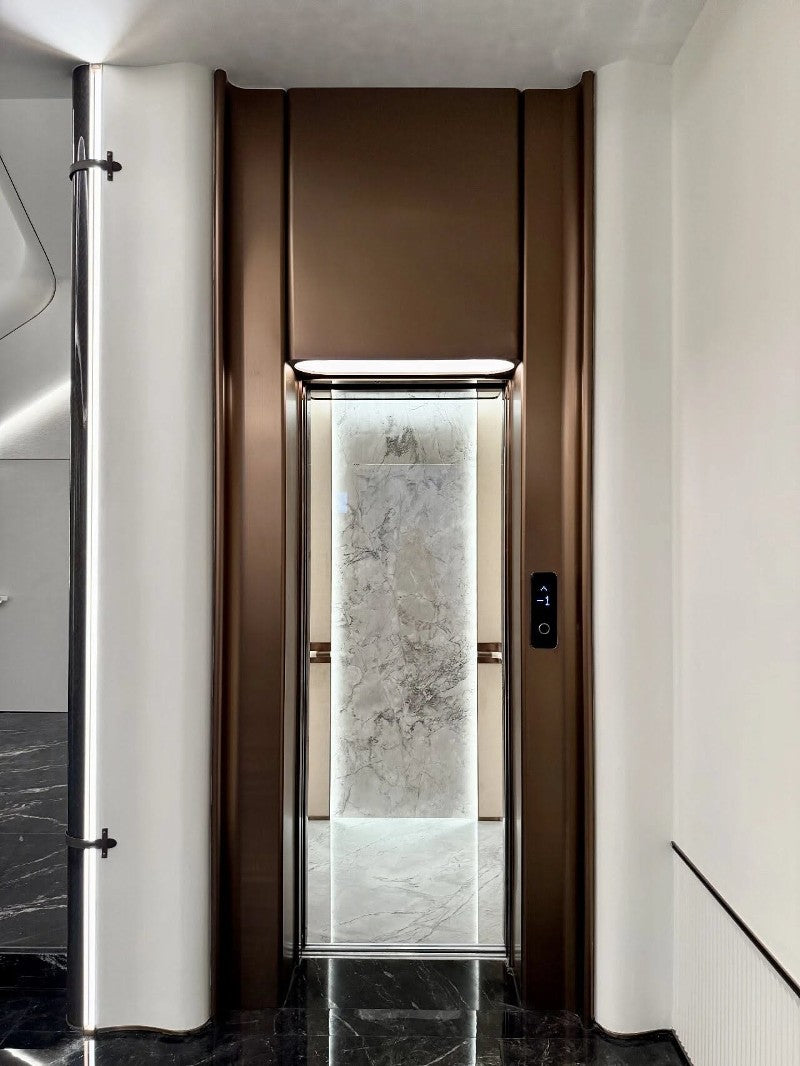

Satin silver, warm brown, antique bronze and gold-toned references provide different entrance finish directions. Mark whether the selected appearance applies to a moving face, fixed header or adjacent wall. A shared design reference can guide the finish without making all visible surfaces part of one skin kit.

Separate Quotations Keep Equipment Responsibilities Clear

Provide lift drawings, door-leaf sizes, opening dimensions, floor quantities and marked supply areas with the finish reference and programme. Quote skins, fixed portal pieces, wall panels and installation duties separately. Fabrication starts from the accepted component scope, with equipment checks retained by the responsible lift team.

Elevator details that protect the design intent

The finish package is developed around the real cabin, not applied as an unrelated decorative layer.

One Appearance With Two Defined Component Groups

The door face and fixed entrance perimeter can be visually coordinated while their dimensions, fixings and approval requirements remain distinct.

Finish Directions Without a Preset Door Kit

The shared entrance references support several surface choices rather than defining an identical set of panels for every opening.

Portal Returns Designed as Stationary Metalwork

Jamb and header profiles follow the confirmed original frame, giving the decorative border its own fabrication schedule independent of moving door skins.

Equipment Review Built Into the Skin Brief

Added weight, movement and clearances are approval inputs for the door-facing scope, rather than assumptions made from the final appearance.

What a coordinated elevator interior solves

Project challenge

Cabin and landing finishes do not match

Xinmao response

Finish references can be reviewed across cabin panels, doors, jambs and nearby architectural metalwork.

Project challenge

Controls and ventilation interrupt the panel design

Xinmao response

Confirmed supplier interfaces are integrated into panel divisions and edge details before fabrication.

Project challenge

Decorative additions exceed available allowances

Xinmao response

Panel construction is developed within limits confirmed by the elevator supplier and responsible project team.

Project challenge

High-contact surfaces quickly show marks

Xinmao response

Finish direction and practical cleaning requirements are considered alongside the desired appearance.

Project challenge

Maintenance access is blocked by decorative panels

Xinmao response

Selected panels or trims can be coordinated as removable elements where the approved system requires access.

Elevator finishes in completed interiors

View more

Elevator interior questions

Practical answers for design and construction teams reviewing a custom elevator finish package.

Custom architectural stainless steel screen detail
01Is an elevator entrance header a decorative cover or part of the door mechanism?

Our entrance header refers to decorative metal cladding above the landing door. It is specified separately from the elevator door operator, structural header and rated entrance assembly. Fixings, clearances, access and the junction with the door jambs are reviewed against approved elevator and architectural drawings.

02How do you coordinate the header and jamb cladding with the lobby wall?

We review the entrance opening, visible returns, wall build-up, adjacent finishes and panel joints together. Final sizes should follow confirmed site dimensions and the elevator supplier's entrance drawings. The project team should agree who prepares the substrate and who completes any required fire stopping.

03Can cab panels be removed for maintenance?

Where the approved elevator system requires access, selected panels or trims can be detailed for removal. Access locations and removal clearances should be marked on the supplier drawings before the decorative layout is approved.

04Can the cab ceiling include lighting?

The decorative ceiling can be coordinated around an approved lighting layout and required access. Light fixtures, wiring and emergency lighting should be specified and approved by the responsible elevator and electrical teams unless explicitly included in the agreed scope.

05Which stainless steel finish is best for a high-traffic elevator?

The choice depends on the desired appearance, touch frequency, cleaning routine and lighting. Brushed, textured, mirror and selected coloured finishes can be reviewed through physical samples. A sample should be assessed in representative lighting, especially around doors and controls where marks are more visible.

06How should stainless steel elevator panels and doors be cleaned?

Use the care instructions approved for the selected finish or coating. Before using any cleaner across the whole surface, test it on a discreet area and avoid methods that could scratch or alter the finish. Request a finish-specific care sheet with the approved sample.

07Can you match the finish across cab walls, doors and elevator lobby cladding?

We can review these visible elements as one finish family using approved samples and a coordinated panel layout. The final match depends on substrate, finish process, batch, viewing angle and lighting; samples and acceptance criteria should be agreed before production.

08Which elevator interior elements can be included?

The agreed scope may include cabin wall panels, feature walls, ceilings, doors, jambs, portals, skirting and selected trims, subject to supplier coordination.

09Do you coordinate with the elevator supplier?

Yes. Approved supplier drawings, dimensions, allowances and technical interfaces are essential inputs for the decorative package.

10Can an existing elevator interior be refurbished?

Refurbishment can be reviewed after the existing cabin, substrate, clearances, condition and supplier requirements are confirmed.

11What finish options are available?

Brushed, mirror, textured, etched, embossed and selected PVD-coloured stainless steel finishes may be considered, subject to sample approval and product suitability.

12How are weight and clearance constraints handled?

All relevant limits must be supplied and confirmed by the elevator provider or responsible consultant. Panel construction is then developed within those confirmed constraints.

13Can a sample or mock-up be prepared?

Physical finish samples and representative panel details can be discussed once the design direction and scope are defined.

14Who installs the decorative package?

Installation responsibility depends on the project scope. The sequence and interfaces should be agreed with the elevator contractor and site team before production.

15What information is needed for a quotation?

Provide supplier drawings, cabin dimensions, quantities, scope elements, finish references, project location, programme and any confirmed technical constraints.
